Gigabyte MS04-CE0 - Internal Connectors

- 20 -
Hardware Installation

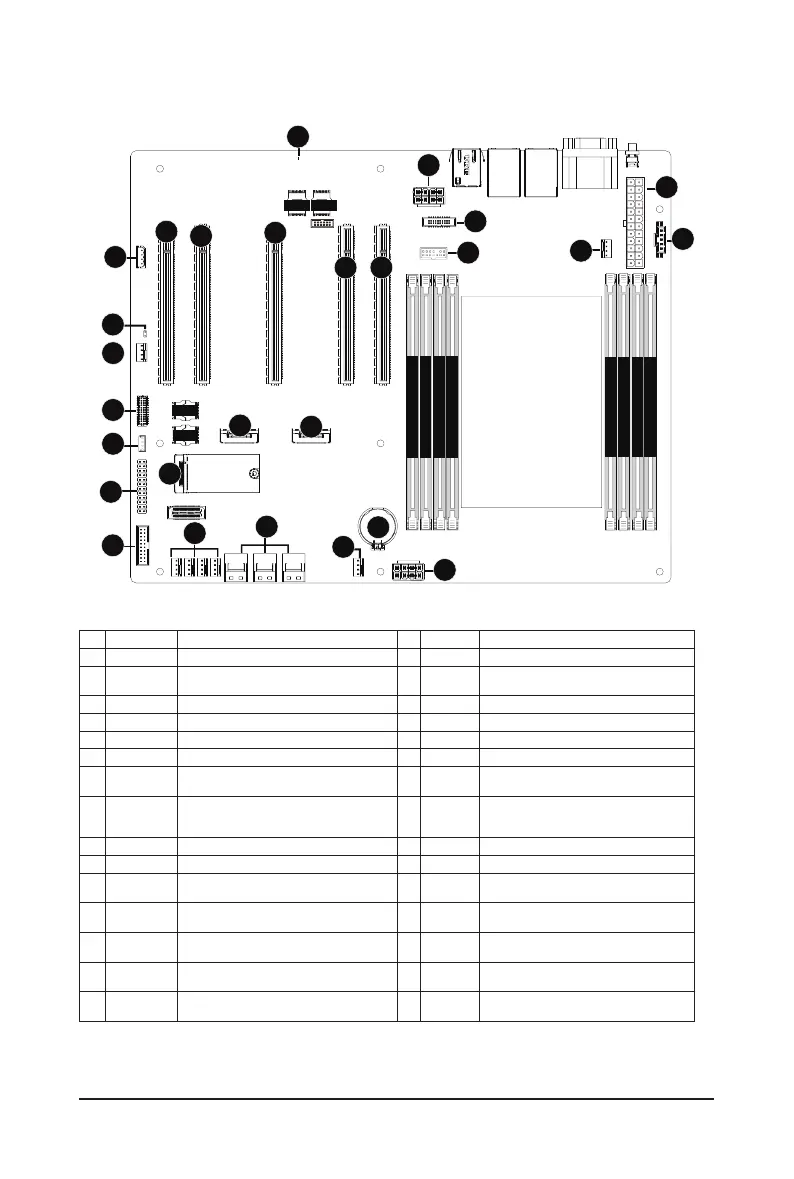

1-7 Internal Connectors
CPU0
DIMM_P0_D0 DIMM_P0_A0 DIMM_P0_B0 DIMM_P0_C0
DIMM_P0_E0 DIMM_P0_H0 DIMM_P0_G0 DIMM_P0_F0
BIOS2BIOS1
BMC1
BMC2
1
2
3
4
8
7
9
12
16
17
19
21
18
20
25
26
32
23
22
13
14
24
15
5
10
11
6
No. Code Description No. Code Description
1 ATX 2x12 Pin Main Power Connector 16 SYS_FAN6 System Fan Connector #6
2 PMBUS PMBus Connector 17 CASE_
OPEN
Case Open Intrusion Header
3 CPU0_FAN CPU Fan Connector 18 IPMB Intelligent Platform Management Bus Connector
4 P12V_CPU1 2x4 Pin 12V Power Connector 19 PCIE_1 PCIe x16 Slot (Gen5 x8)
5 BAT Battery Socket 20 PCIE_2 PCIe x16 Slot (Gen5 x16)
6 SYS_FAN5 System Fan Connector #5 21 PCIE_4 PCIe x16 Slot (Gen5 x16)
7 SL_SATA3/
SATA2/SATA1
Slimline Connector #3/#2/#1 (SATA 6Gb/s Sig-
nal)
22 PCIE_6 PCIe x16 Slot (Gen5 x16)
8 SYS_FAN1/
FAN2/FAN3/
FAN4
System Fan Connector #1/#2/#3/#4 23 PCIE_7 PCIe x16 Slot (Gen5 x16)
9 F_USB3_1 Front Panel USB 3.2 Gen1 Connector 24 SPI_TPM TPM Connector
10 FP_1 Front Panel Header 25 CN_NCSI NCSI Connector
11 PROT Conn. PRoT Module Connector 26 P12V_
CPU2
2x4 Pin 12V Power Connector
12 SW_RAID SATA RAID Upgrade Key(VROC Module Con-
nector
27 LED_BMC BMC Firmware Readiness LED
13 M2_1 M.2 Slot (PCIe Gen5 x2, Support NGFF-
2280/22110)
14 M2_0 M.2 Slot (PCIe Gen5 x2, Support NGFF-
2280/22110)
15 BP_1 HDD Backplane Board Connector
