Gigabyte MS04-CE0 - Back Panel Connectors

- 18 -
Hardware Installation

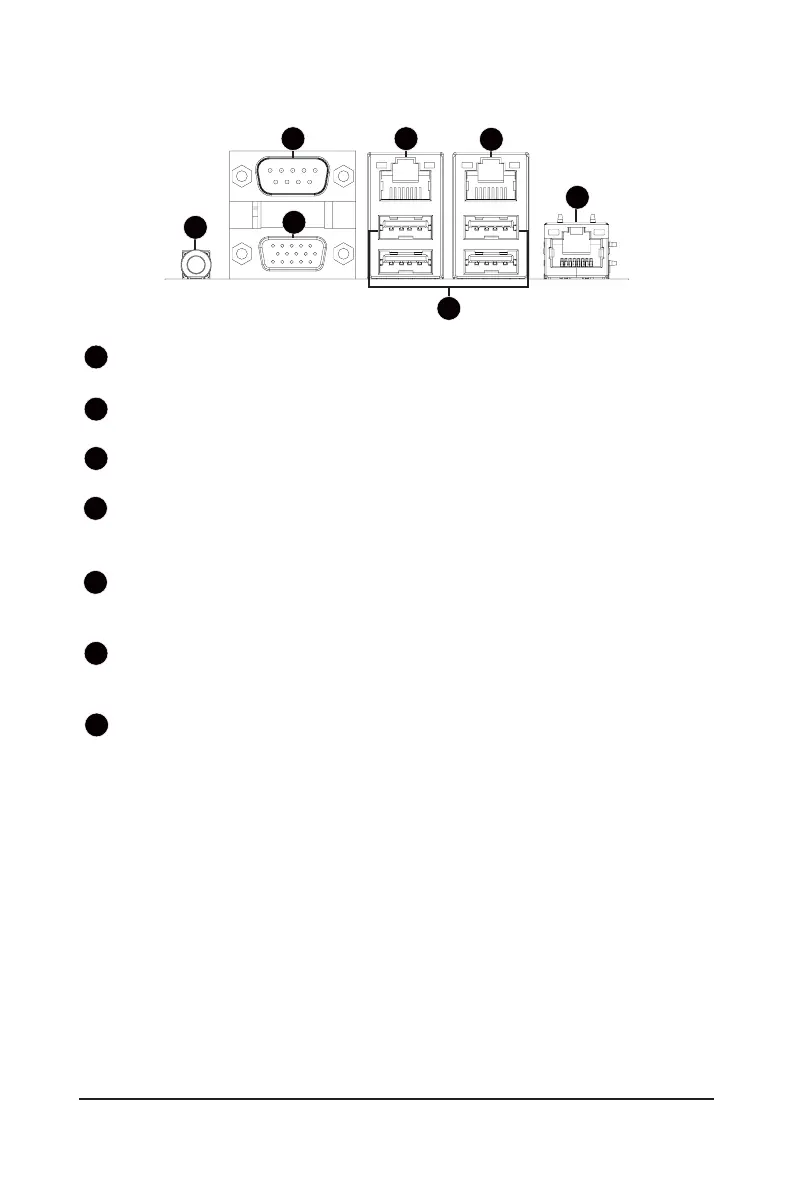

1-6 Back Panel Connectors
ID Button with LED
When the system identication is active, the ID LED on the front/ back panel glows blue.
COM Port
Connect to serial-based mouse or data processing devices.
VGA Port
Connect to a monitor device.
LAN Port #2
The Gigabit Ethernet LAN port provides Internet connection at up to 1 GbE data rate. See the section
below for a description of the states of the LAN port LEDs.
LAN Port #1
The Gigabit Ethernet LAN port provides Internet connection at up to 1 GbE data rate. See the section
below for a description of the states of the LAN port LEDs.
USB 3.2 Gen1 Ports
The USB port supports the USB 3.2 specification. Use this port for USB devices such as a USB
keyboard/mouse, USB printer, USB ash drive etc.
Server Management 10/100/1000 LAN Port
The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is
the dedicated LAN port for Server Management.
1
2
3
4
5
6
7
5
7
1
2
3
4
6
