Hardware Installation
21

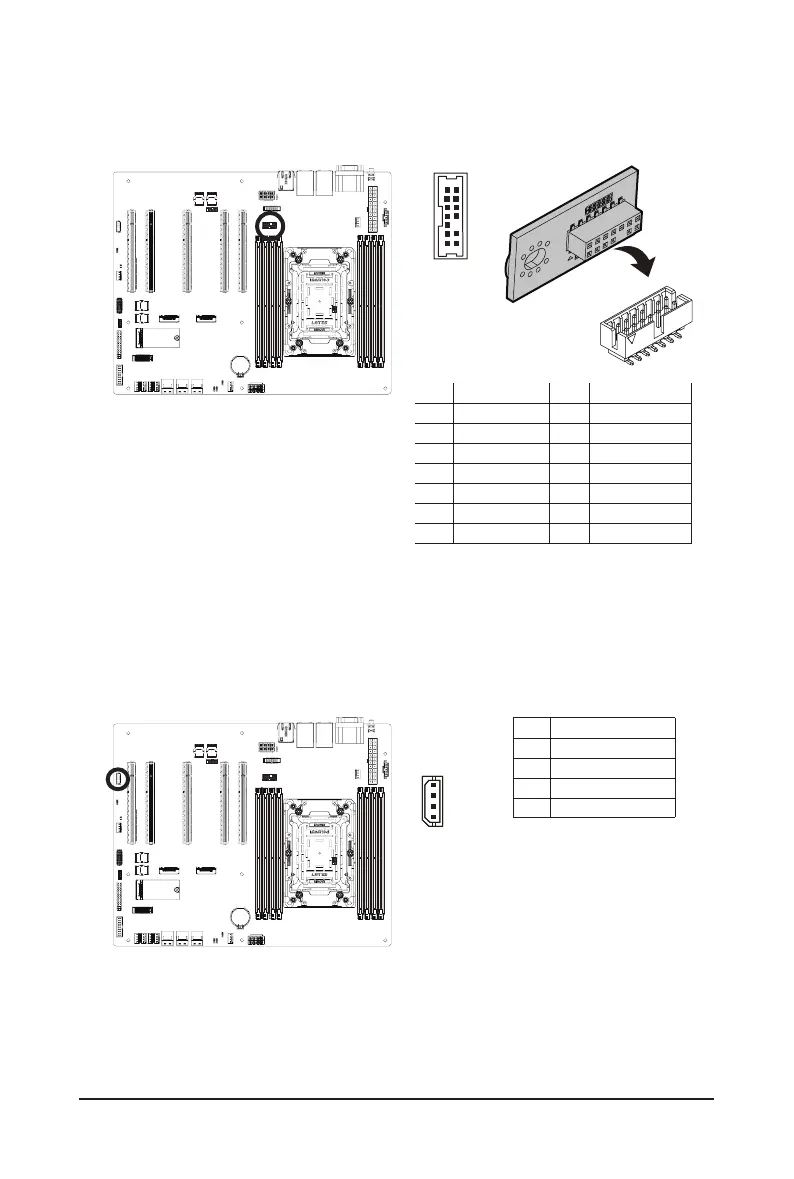

24) TPM (Trusted Platform Module Connector)
Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated
microcontroller designed to secure hardware through integrated cryptographic keys.
Pin No. Denition Pin No. Denition
1 Clock 8 No Connect
2 P_3V3_AUX 9 No Connect
3 LPC_RST 10 No Pin
4 No Connect 11 No Connect
5 SPI_MISO 12 GND
6 IRQ_SPI 13 SPI_CS_N
7 SPI_MOSI 14 GND
1413
21
18) IPMB (IPMB Connector)
The IPMB connector is used to connect Intelligent Platform Management Bus (IPMB) devices in a computer
system for remote monitoring and management capabilities..
1
4
Pin No. Denition
1 Clock
2 GND
3 Data
4 VCC
