Hardware Installation - 14 -

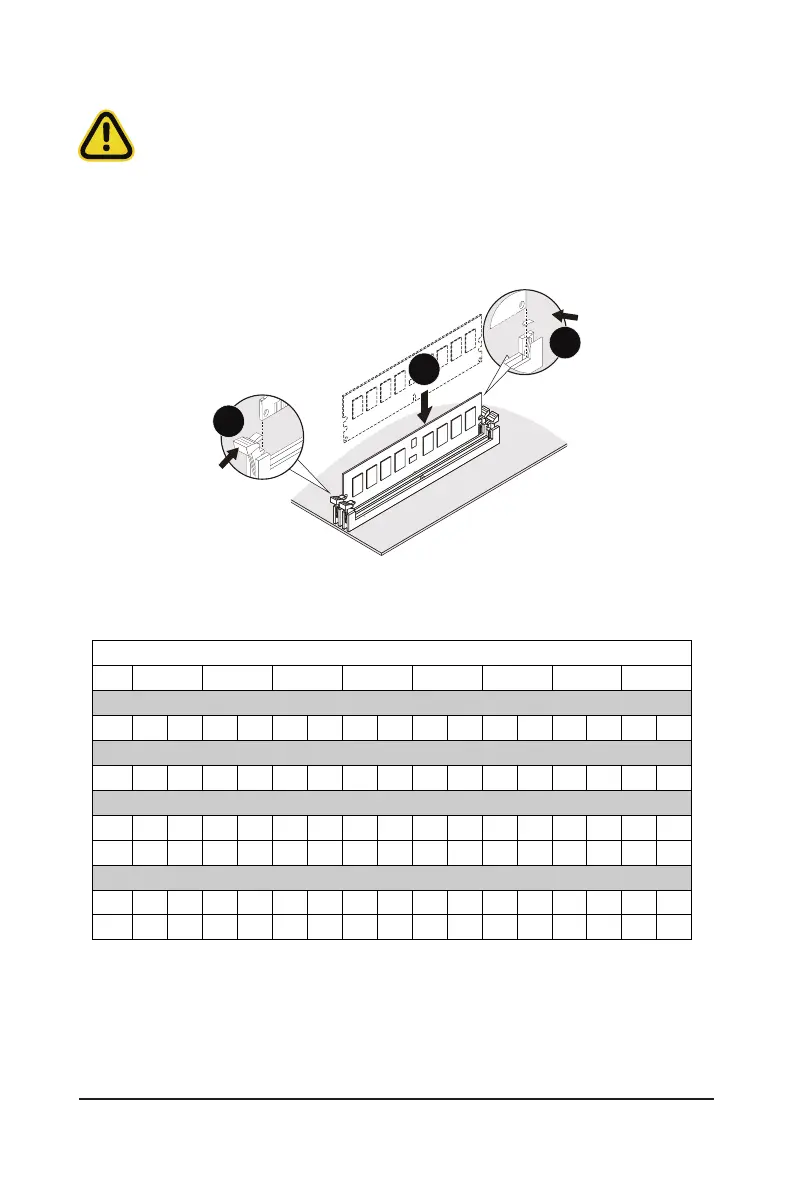

1-4-2 Installing and Removing the Memory Module
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR4 DIMMs on to this motherboard.
Follow these instructions to install a DIMM module:
1. Insert the DIMM memory module vertically into the DIMM slot and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.
1
2
2
1-4-3 Processor and Memory Module Matrix Table
Processor and Memory Module Matrix Table
8 DIMMs
CPU#
CPU0 A1 B1 C1 D1 E1 F1 G1 H1
16 DIMMs
CPU0 A1A0 B1B0 C1C0 D1D0 E1E0 F1F0 G1G0 H1H0
16 DIMMs
CPU0 A1 B1 C1 D1 E1 F1 G1 H1
CPU1 I1 J1 K1 L1 M1 N1 O1 P1
32 DIMMs
CPU0 A1 B1 C1 D1 E1 F1 G1 H1A0 B0 C0 D0 E0 F0 G0 H0
CPU1 I1 J1 K1 L1 M1 N1 O1 P1I0 J0 K0 L0 M0 N0 O0 P0
Channel A/I Channel B/J Channel C/K Channel D/L Channel E/M Channel F/N Channel G/O Channel H/P
To Next Page
