Gigabyte MZ72-HB0 User Manual

Hardware Installation - 18 -

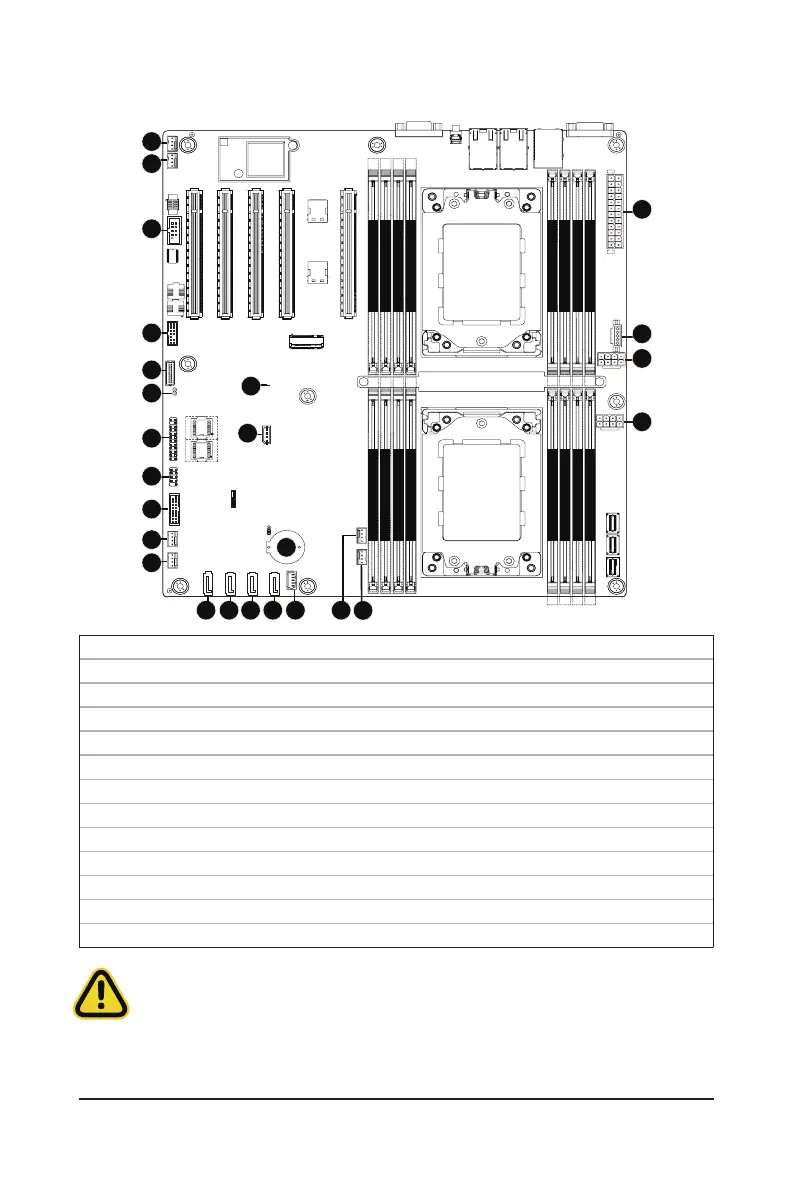

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
•
First make sure your devices are compliant with the connectors you wish to connect.
•
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
•
After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX 14) SYS_FAN4
2) P12V_1 (for CPU0) 15) SYS_FAN4
3) P12V_2 (for CPU1) 16) PMBUS
4) SATA0 17) F_USB3
5) SATA1 18) F_USB2
6) SATA2 19) COM2
7) SATA3 20) FP_1
8) SATA_SGP 21) BP_1
9) CPU_FAN0 22) SPI_TPM
10) CPU_FAN1 23) IPMB
11) SYS_FAN1 24) LED_BMC1
12) SYS_FAN2 25) CASE_OPEN
13) SYS_FAN3
CPU0
CPU1
DIMM_P0_A0 DIMM_P0_B0 DIMM_P0_C0 DIMM_P0_D0 DIMM_P0_H0 DIMM_P0_G0 DIMM_P0_F0 DIMM_P0_E0
DIMM_P1_L0 DIMM_P1_K0 DIMM_P1_J0 DIMM_P1_I0 DIMM_P1_M0 DIMM_P1_N0 DIMM_P1_O0 DIMM_P1_P0
3
4 5 6
7
8 9
10
11
14
15
16
17
18
19
20
22
21
23
24
13
12
2
1
25

Gigabyte MZ72-HB0 Specifications

General

PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
PCI Express x16 slots	5
Memory channels	Octa-channel
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2933, 3300 MHz
On-board graphics card model	Aspeed AST2500
Parallel processing technology support	Not supported
Cables included	SATA
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	20 - 95 %
Operating relative humidity (H-H)	8 - 80 %
Processor socket	Socket SP3
Processor manufacturer	AMD
Compatible processor series	AMD EPYC
Processor number of cores supported	64
Component for	Server
Motherboard chipset	System on Chip
Motherboard form factor	Extended ATX
Compatible operating systems	Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) Red Hat Enterprise Linux 8.0 ( x64) SUSE Linux Enterprise Server 12 SP4 ( x64) SUSE Linux Enterprise Server 15 SP1 ( x64) Ubuntu 16.04.6 LTS (x64) Ubuntu 18.04.3 LTS (x64) Ubuntu 20.04 LTS (x64) VMware ESXi 6.5 EP15 VMware ESXi 6.7 VMware ESXi 7.0 Citrix Hypervisor 8.1.0
TPM connector	Yes
Number of SATA III connectors	4
Number of DIMM slots	16
Supported storage drive interfaces	SATA III
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	330 mm
Width	305 mm
