Hardware Installation - 24 -

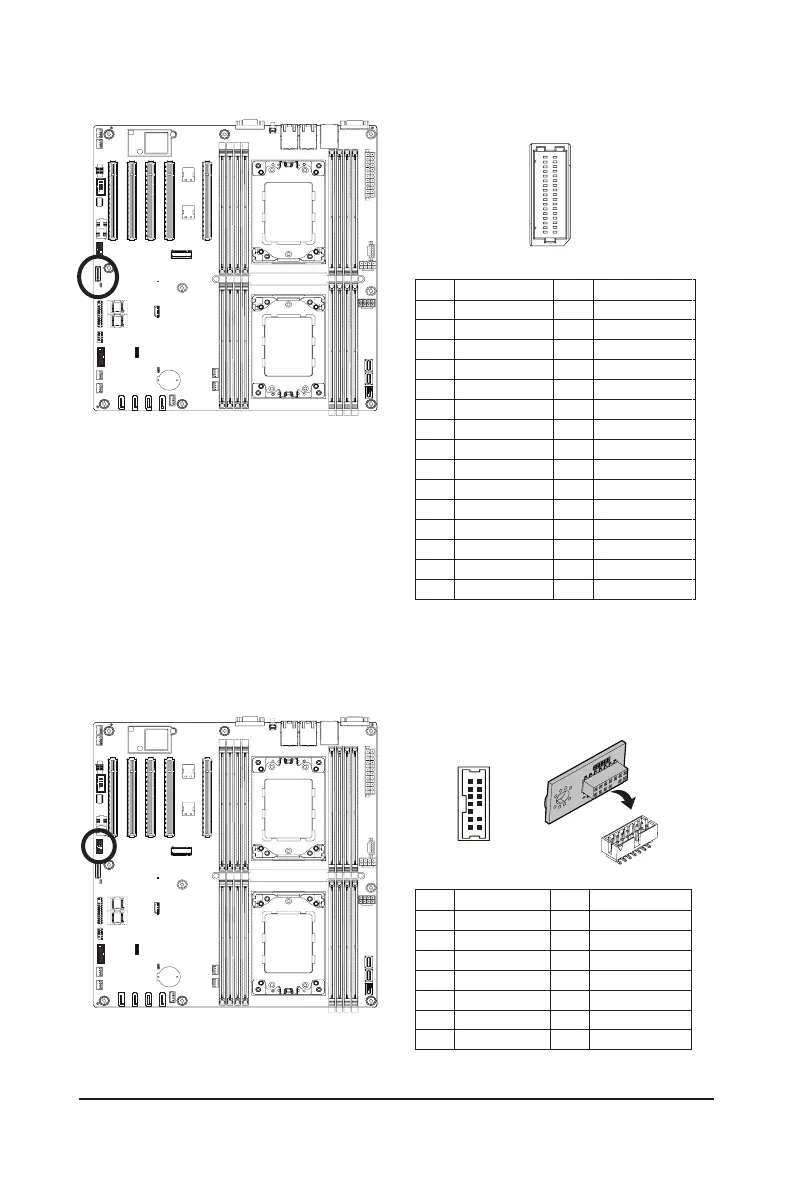

20) BP_1 (HDD Backplane Board Header)
Pin No. Denition Pin No. Denition
1 HP_ALERT_L 2 BPMI DIN/OUT
3 GND 4 BPMI DIN/IN
5 BPMI_LOAD 6 GND
7 BPMI_CLK 8 PLD_Program_EN
9 GLED_AMB_N 10 GLED_GRN_N
11 FAN_IRQ_N 12 Reserved
13 BP_SCL 14 GND
15 BP_SDA 16 BP_RST_N
17 SMB_U2_TMP_SCL 18 GND
19 SMB_U2_TMP_SDA 20 I2C_DEV_RST
21 PH_HP_SCL0 22 GND
23 PH_HP_SDA0 24 GND
25 PH_HP_SCL1 26 GND
27 PH_HP_SDA1 28 GND
15 P3V3_AUX 30 P3V3_AUX
29
30
2 1
21) SPI_TPM (Trusted Platform Module Connector)
Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated
microcontroller designed to secure hardware through integrated cryptographic keys.
Pin No. Denition Pin No. Denition
1 Clock 8 No Connect
2 P_3V3_AUX 9 LPC_LAD2
3 LPC_RST 10 No Pin
4 P3V3 11 LPC_LAD3
5 LPC_LAD0 12 GND
6 IRQ_SERIAL 13 LPC_FRAME_N
7 LPC_LAD1 14 GND
12
13 14

Gigabyte MZ72-HB0 Specifications

General

PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
PCI Express x16 slots	5
Memory channels	Octa-channel
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2933, 3300 MHz
On-board graphics card model	Aspeed AST2500
Parallel processing technology support	Not supported
Cables included	SATA
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	20 - 95 %
Operating relative humidity (H-H)	8 - 80 %
Processor socket	Socket SP3
Processor manufacturer	AMD
Compatible processor series	AMD EPYC
Processor number of cores supported	64
Component for	Server
Motherboard chipset	System on Chip
Motherboard form factor	Extended ATX
Compatible operating systems	Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) Red Hat Enterprise Linux 8.0 ( x64) SUSE Linux Enterprise Server 12 SP4 ( x64) SUSE Linux Enterprise Server 15 SP1 ( x64) Ubuntu 16.04.6 LTS (x64) Ubuntu 18.04.3 LTS (x64) Ubuntu 20.04 LTS (x64) VMware ESXi 6.5 EP15 VMware ESXi 6.7 VMware ESXi 7.0 Citrix Hypervisor 8.1.0
TPM connector	Yes
Number of SATA III connectors	4
Number of DIMM slots	16
Supported storage drive interfaces	SATA III
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	330 mm
Width	305 mm
