Gigabyte R161-R12 - Front Panel LED and Buttons

System Appearance - 16 -

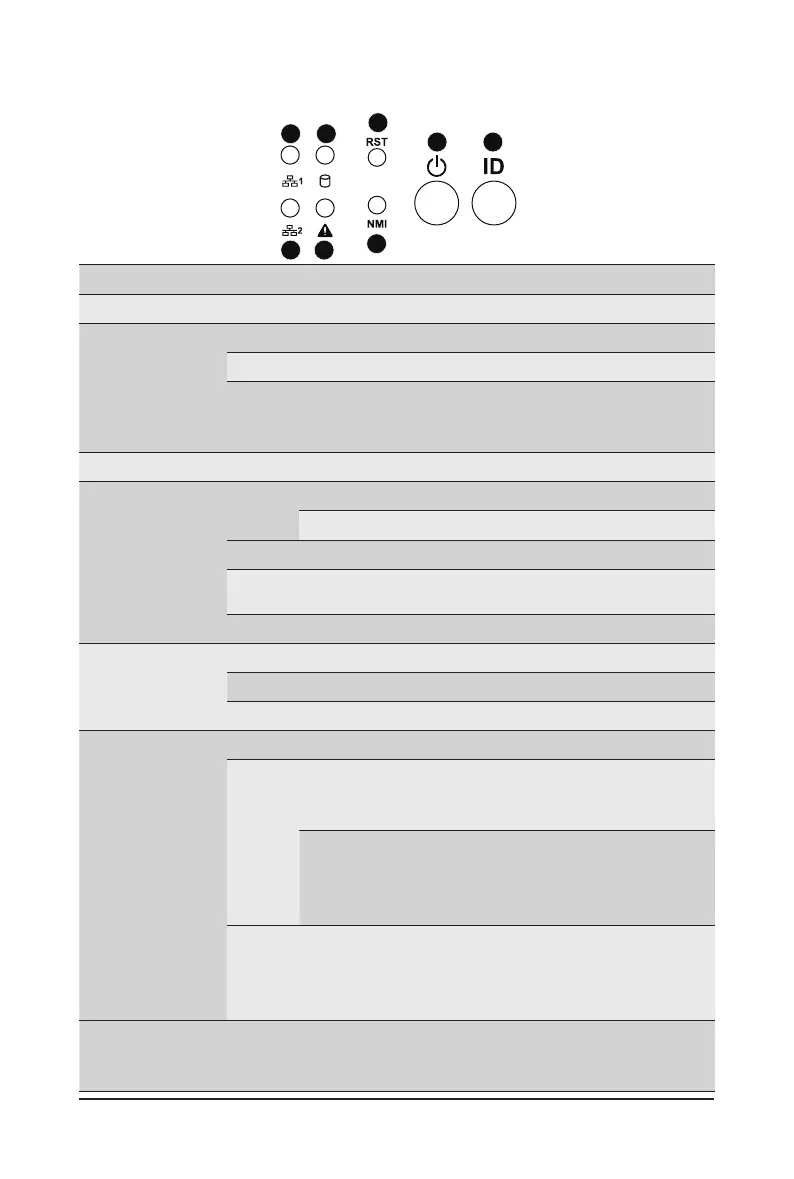

2-3 Front Panel LED and Buttons
No. Name Color Status Description
1.
ID Button Press the button to activate system identication
2.
Power button
with LED
Green On System is powered on
Green Blink System is in ACPI S1 state (sleep mode)
N/A Off
• System is not powered on or in ACPI S5 state
(power off)
• System is in ACPI S4 state (hibernate mode)
3.
Reset Button Press the button to reset the system.
4.
HDD Status
LED
Green
On HDD locate
Blink HDD access
Amber On HDD fault
Green/
Amber
Blink HDD rebuilding
N/A Off No HDD access or no HDD fault.
5/6
LAN 1/2
Active/Link
LEDs
Green Solid On Link between system and network or no access.
Green Blink Data trasmission or receiving is occuring
N/A Off No data transmission or receiving is occuring
7.
System
Status LED
Green Solid On System is operating normally.
Amber
Solid On
Critical condition, may indicate:
System fan failure
System temperature
Blink
Non-critical condition, may indicate:
Redundant power module failure
Temperature and voltage issue
Chassis intrusion
N/A Off
System is not ready, may indicate:
POST error
NMI error
Processor or terminator missing
8.
NMI button
Press the button server generates a NMI to the processor
if the multiple-bit ECC errors occur, which effectively halt
the server.
