3-3-2 Installing a Memory
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR4 DIMMs on this motherboard.
Follow these instructions to install the Memory:

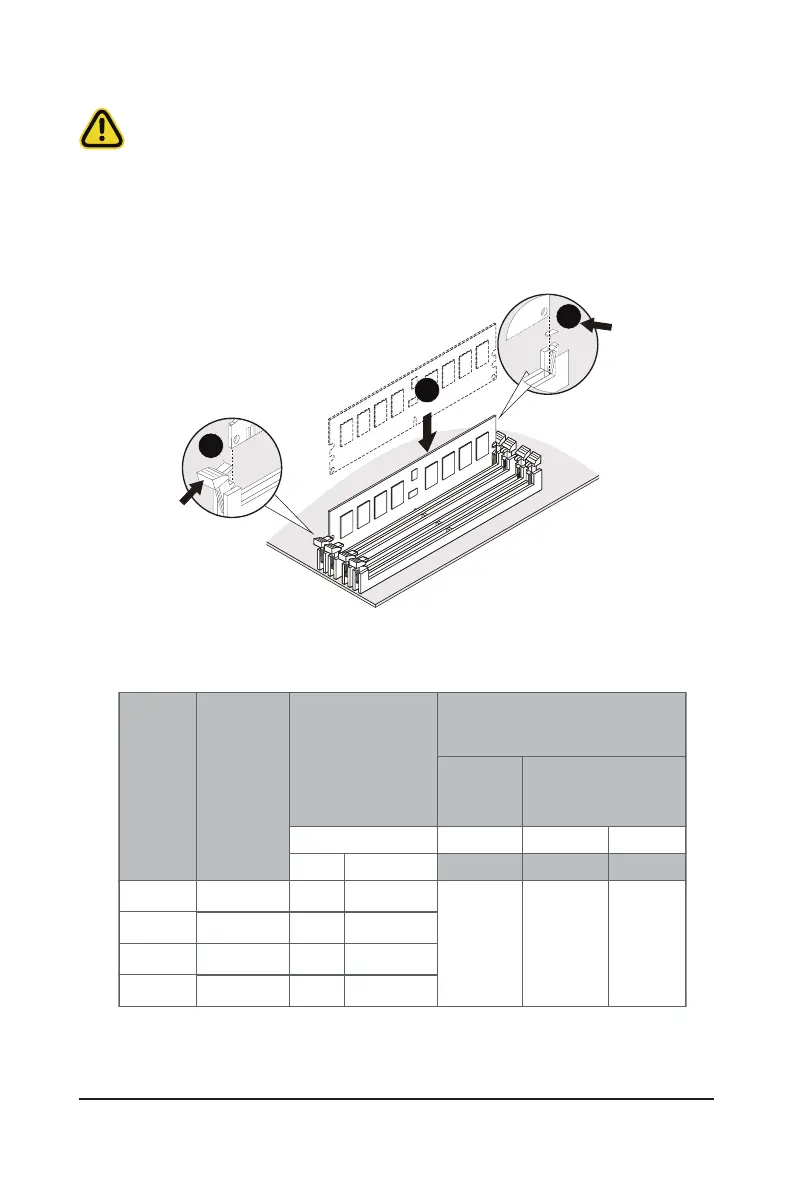

1. Insert the DIMM memory module vertically into the DIMM slot, and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.
1
2
2
3-3-3 DIMM Population Table
DIMM
Capacity
(GB)
1 Slot per
Channel
2 Slot per Channel
DIMM Density
Speed (MT/s); Voltage (V)
Slot Per Channel (SPC)
DIMM Per Channel (DPC)
1DPC 1DPC 2DPC
1.2V
2666 2666 2666
1.2V 1.2V
Ranks Per
DIMM and
Data Width
4Gb 8Gb
4GB 8GB
8GB 16GB
8GB 16GB
Type
UDIMM
UDIMM
UDIMM
SRx4
SRx8
DRx8
16GB 32GB
UDIMM DRx8
