- 23 - System Hardware Installation
3-3 Installing the Memory
3-3-1 Four Channel Memory Conguration
This motherboard provides 8 DDR4 memory sockets and supports Four Channel Technology. After the
memory is installed, the BIOS will automatically detect the specifications and capacity of the memory.
Enabling Four Channel memory mode will be four times of the original memory bandwidth.
Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
• Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.

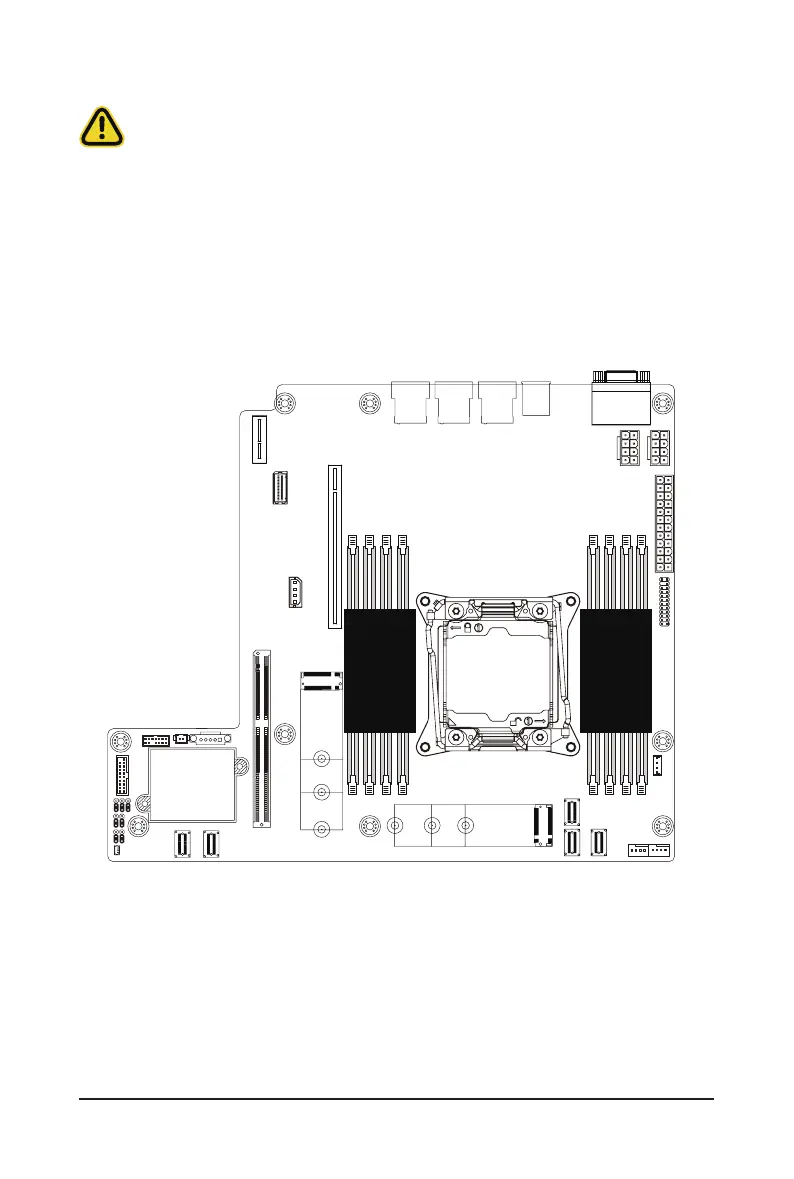

CPU
DIMM_P0_C1
DIMM_P0_C0
DIMM_P0_D1
DIMM_P0_D0
DIMM_P0_B0
DIMM_P0_B1
DIMM_P0_A0
DIMM_P0_A1
To Next Page
