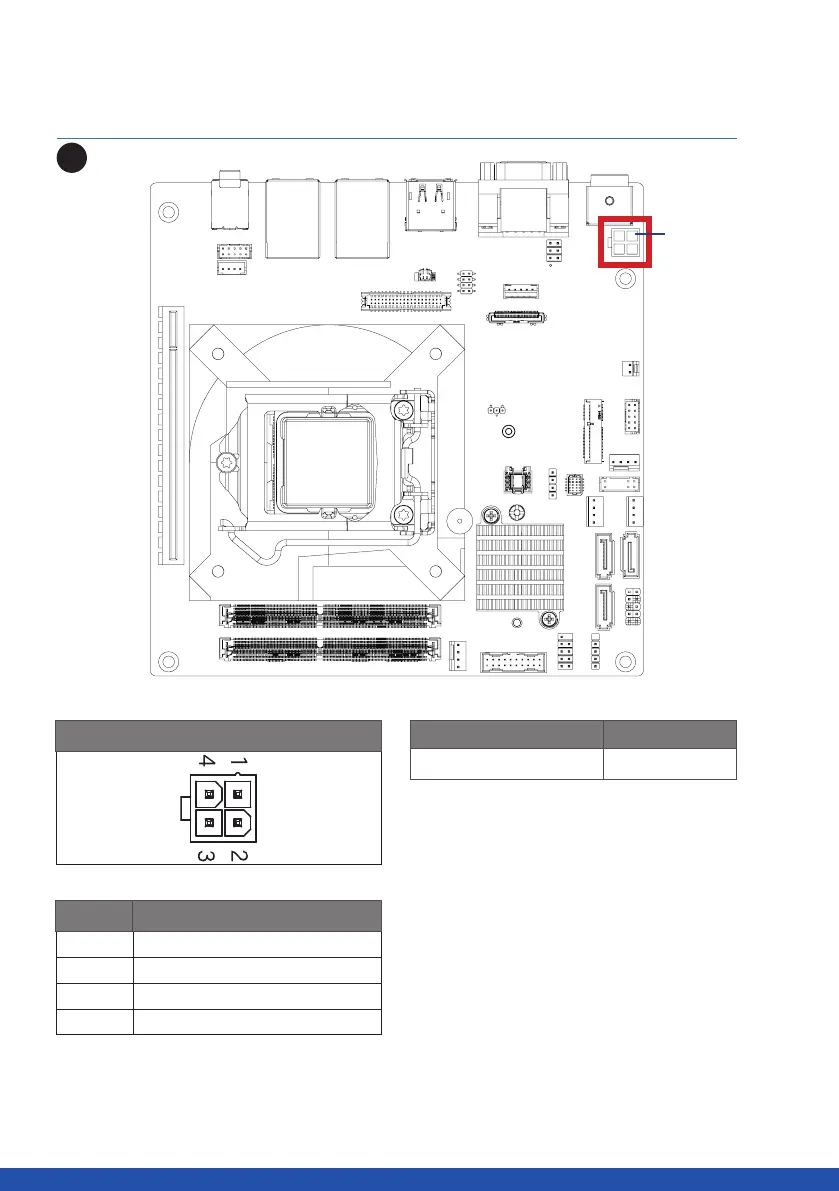

2.2.3 DC_IN2 (ATX 2x2 Pin Power Connector)
2
Power Connector
Pin No. Definition
1 GND
2 GND
3 DC IN
4 DC IN
Connector PN Vendor
740-81-04TW56 PINREX
Pin 1
