Mini-ITX Motherboard mITX-H42EA (MH42EAI-SI)

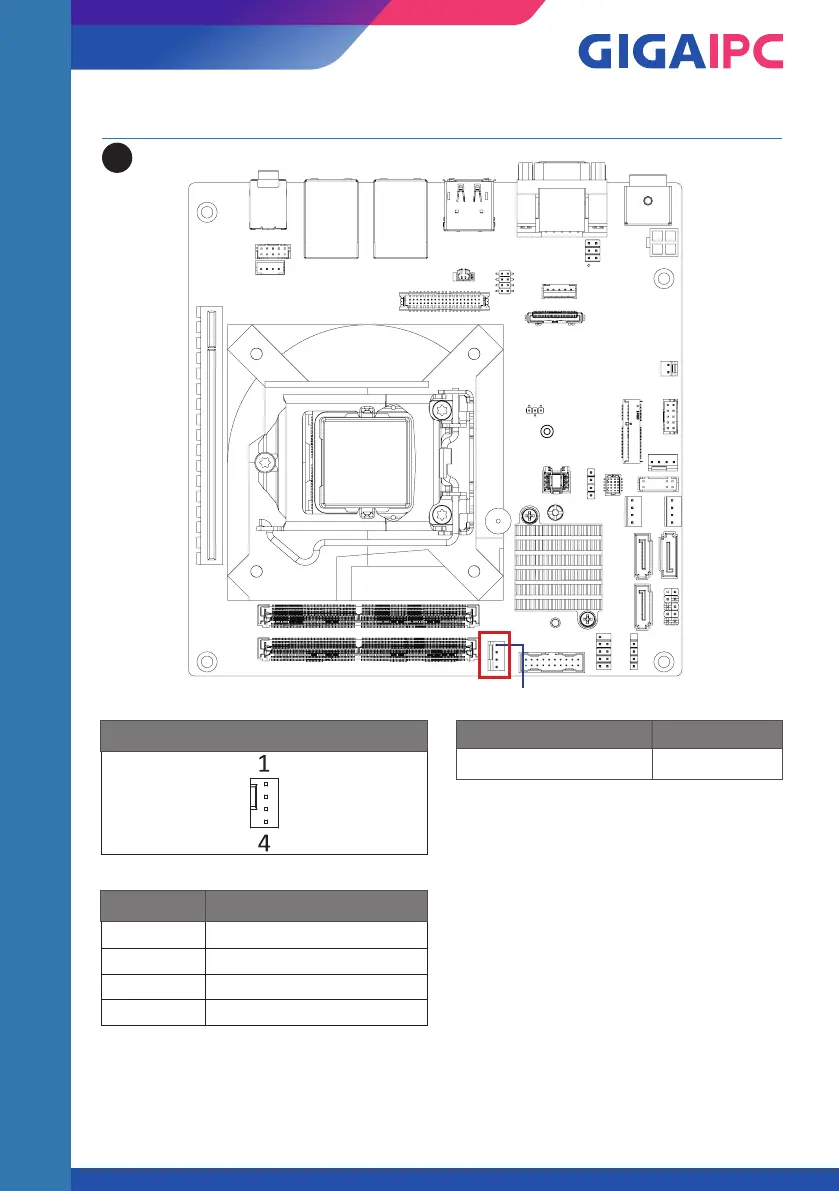

2.2.26 CPU_FAN (CPU FAN Connector)

33

Pin 1

CPU Fan Connector

Pin No. Definition

1 GND

2 12V

3 Detect

4 Speed Control

Connector PN Vendor

744-81-045W11 PINREX
