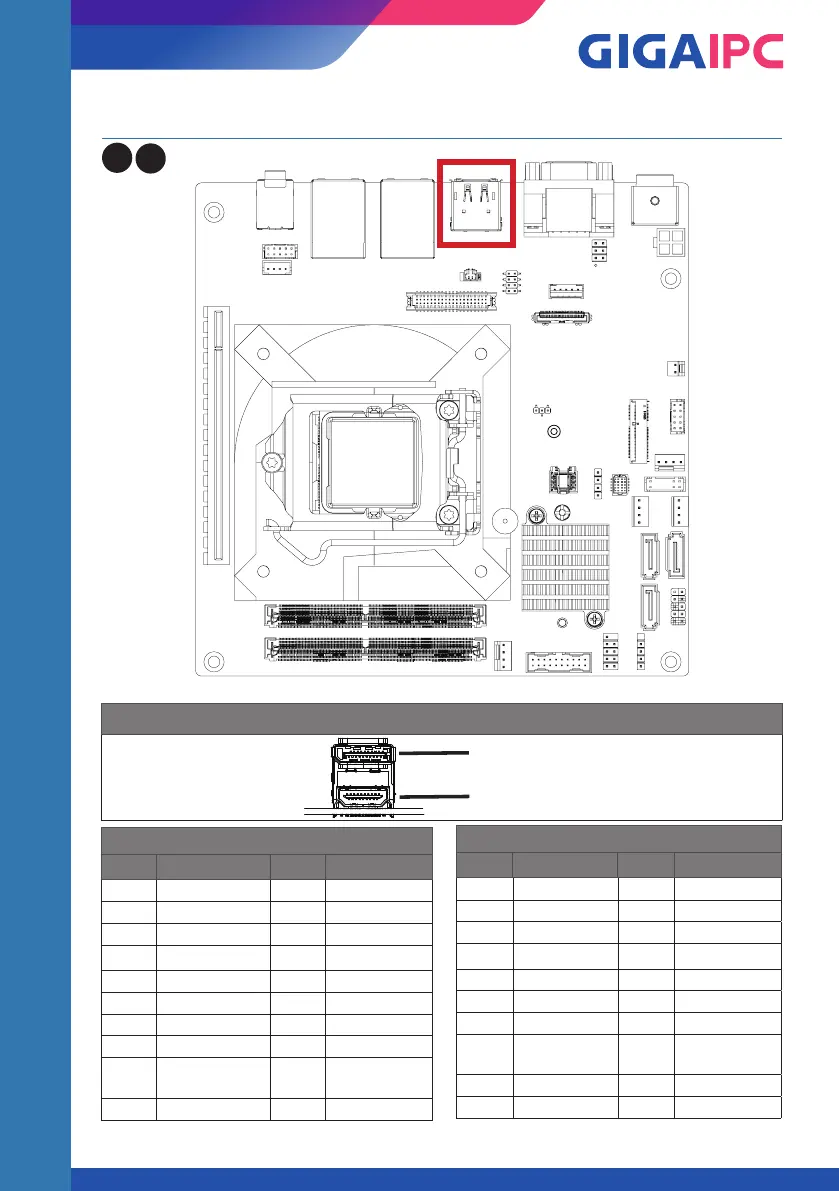

GIGAIPC mITX-H42EA - 2.2.6 HDMI_DP (HDMI + DP Connector)

28
www.gigaipc.com
Mini-ITX Motherboard mITX-H42EA (MH42EAI-SI)
2.2.6 HDMI_DP (HDMI + DP Connector)
5
HDMI & DP Connector
HDMI port
DP port
HDMI Connector
Pin No. Definition Pin No. Definition
1 TX2p 11 GND
2 GND 12 CLKn
3 TX2n 13 NC
4 TX1p 14 NC
5 GND 15 SCL
6 TX1n 16 SDA
7 TX0p 17 GND
8 GND 18 5V
9 TX0n 19
Hot Plug
Detect
10 CLKp
DP Connector
Pin No. Definition Pin No. Definition
1 TX0p 11 GND
2 GND 12 TX3n
3 TX0n 13 GND
4 TX1p 14 GND
5 GND 15 AUXp
6 TX1n 16 GND
7 TX2p 17 AUXn
8 GND 18
Hot Plug
Detect
9 TX2n 19 3.3V
10 TX3p 20 3.3V
6
