37
www.gigaipc.com

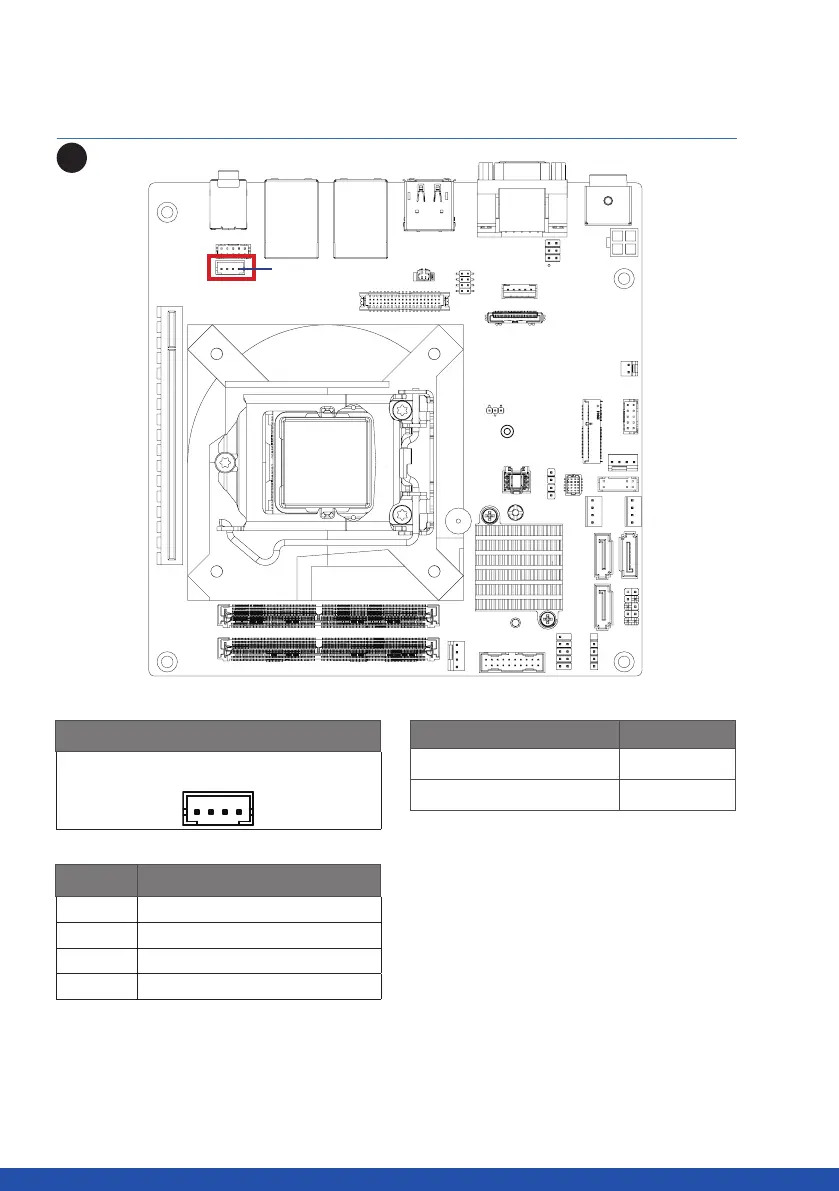

2.2.11 SPKR (Speaker Out Connector)
18
Speaker Out Connector
Pin No. Definition
1 SPEAKER L+
2 SPEAKER L-
3 SPEAKER R-
4 SPEAKER R+
Connector PN Vendor
721-81-045W00 PINREX
A2001WV-04P146 JOINT-TECH
Pin 1
