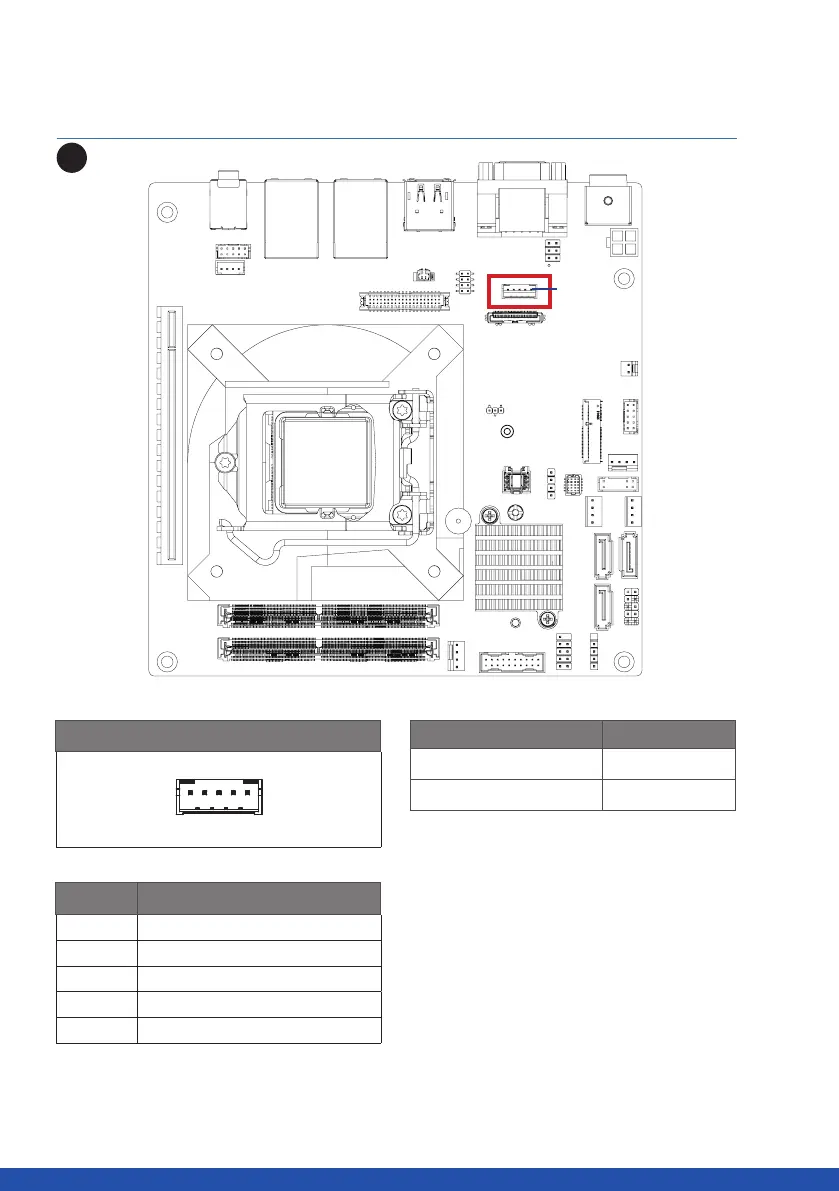

2.2.5 BKL_CN (Backlight Control Connector)

12

Backlight Control Connector

5 1

Pin No. Definition

1 5V

2 PWM

3 Backlight enable

4 GND

5 12V

Connector PN Vendor

721-81-05TW00 PINREX

A2001WV-05P146 JOINT-TECH

Pin 1
