2.
2.4

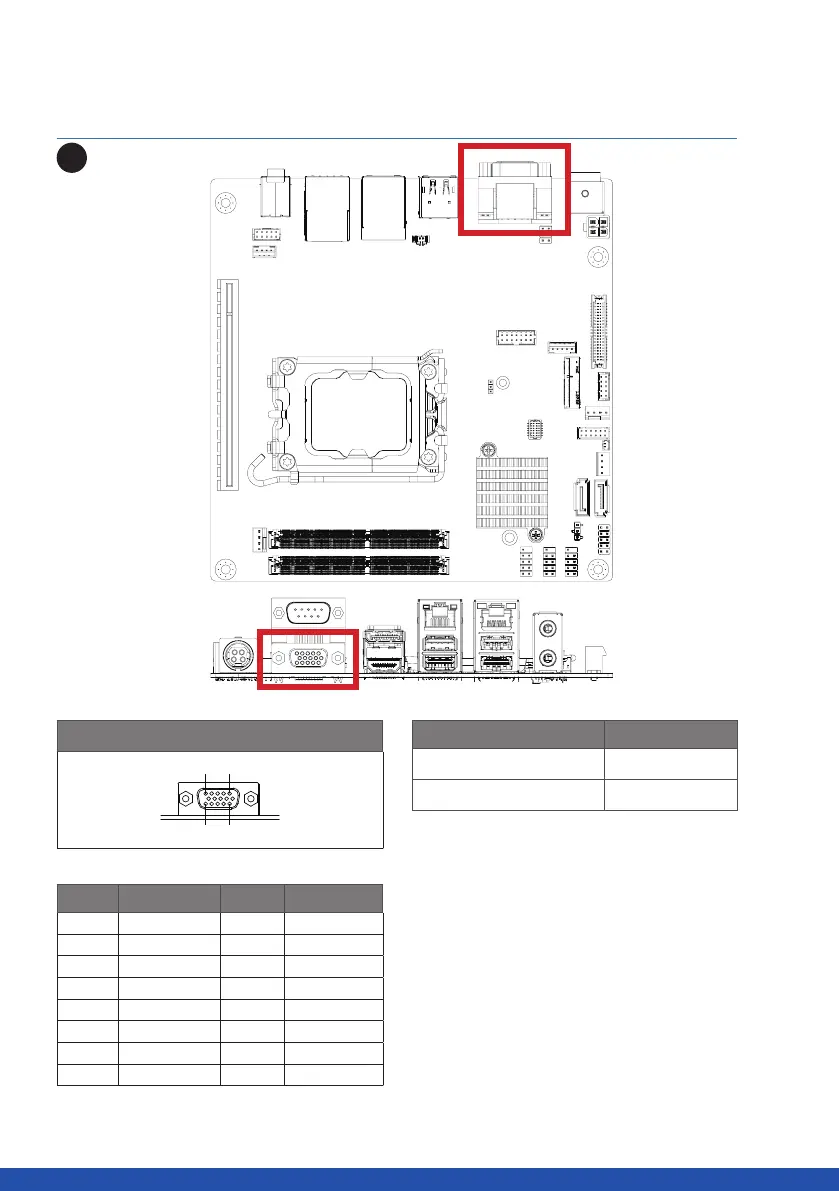

VGA (V
GA Por
t
)
3
D
-sub Connec
tor
1
11
5
15
Pin N
o.
Definition
Pin N
o.
Definition
1
Red
9
5V
2
Green
10
GND
3
Blue
11
NC
4
NC
12
DDC
S
DA
5
GND
13
HSYNC
6
GND
14
VSYNC
7
GND
15
DDCS
CL
8
GND
Connector PN
Vendor
DZ
1
1
A
A
1-
H
5
A
7-
4
F
F
OXCO
NN
D11015
S
0211
26N
FENYIN
G
24
26
Table of Contents
default chapter
1
Mitx-Q670A Mini-ITX Motherboard
1
Copyright Notice
2
Acknowledgement
3
Packing List
4
About this Document
5
Safety Precautions
6
FCC Statement
8
China Rohs Requirements (CN)
9
China Rohs Requirement (EN)
10
Table of Contents
11
Chapter 1 - Product Specifications
14
Specifications
16
Chapter 2 - Hardware Information
18
Jumpers and Connectors
19
IO Connector Information
22
DC_IN1 (DC in Jack 4 Pin Din)
23
DC_IN2 (ATX 2X2 Pin Power Connector)
24
VGA (VGA Port)
25
COM1 (COM1 Port (RS-232/422/485 & RI/5V/12V))
26
HDMI_DP (HDMI + DP Connector)
27
USB32_LAN1 (USB + Gbe LAN Connector)
28
USB32_LAN2 (USB + 2.5Gbe LAN Connector)
29
CPU Socket (LGA 1700 Socket)
30
LVDS (LVDS Connector)
31
COM2 (COM2 Header (RS-232))
32
SYS_FAN (System Fan Connector)
33
GPIO_CNT (General Purpose Input/Out Header)
34
BUZZER (Buzzer Header)
35
SATA_PWR (SATA Power Connector)
36
SATA4, SATA5 (SATA 6Gb/S Connector)
37
SYS_PANEL (System Panel Header)
38
CLR_CMOS (Clear CMOS Jumper)
39
FUSB2_1, FUSB2_2, FUSB2_3 (USB 2.0 Header)
40
SODIMM1, SODIMM2 (2 X DDR4 SO-DIMM Sockets)
41
CPU_FAN (CPU FAN Connector)
42
PCIEX16 (1 X Pcie X16 (Gen4 X16 Bus) Slot)
43
SPKR (Speaker out Connector)
44
FP_AUDIO (Front Panel Audio Header)
45
BATTERY (Battery Connector)
46
JCOM1 (RI# Pin RI#/5V/12V Select Jumper for COM1 Port)
47
TPM (TPM Header)
48
BKL_CN (Backlight Control Connector)
49
AT_CN (AT/ATX Mode Select Jumper)
50
M2E (M.2 Slot, E-Key, NGFF-2230)
51
M2M (M.2 Slot, M-Key, NGFF-2280)
52
Chapter 3 - BIOS
53
Introduction
54
The Main Menu
55
Advanced
56
AMT Configuration
57
TPM Configuration
62
CPU Configuration
64
SATA Configuration
65
IT8786 Super IO Configuration
66
Hardware Monitor
67
S5 RTC Wake Settings
68
Intel TXT Information
69
AMI Graphic Output Protocol Policy
70
Network Stack Configuration
71
Nvme Configuration
72
Offboard SATA Controller Configuration
73
Digital IO Port Configuration
74
Intel(R) Platform Service Record
75
Tls Auth Configuration
76
Chipset
77
Security
79
Boot
82
Save & Exit
83
Mebx
84
4
