49

www.gigaipc.com

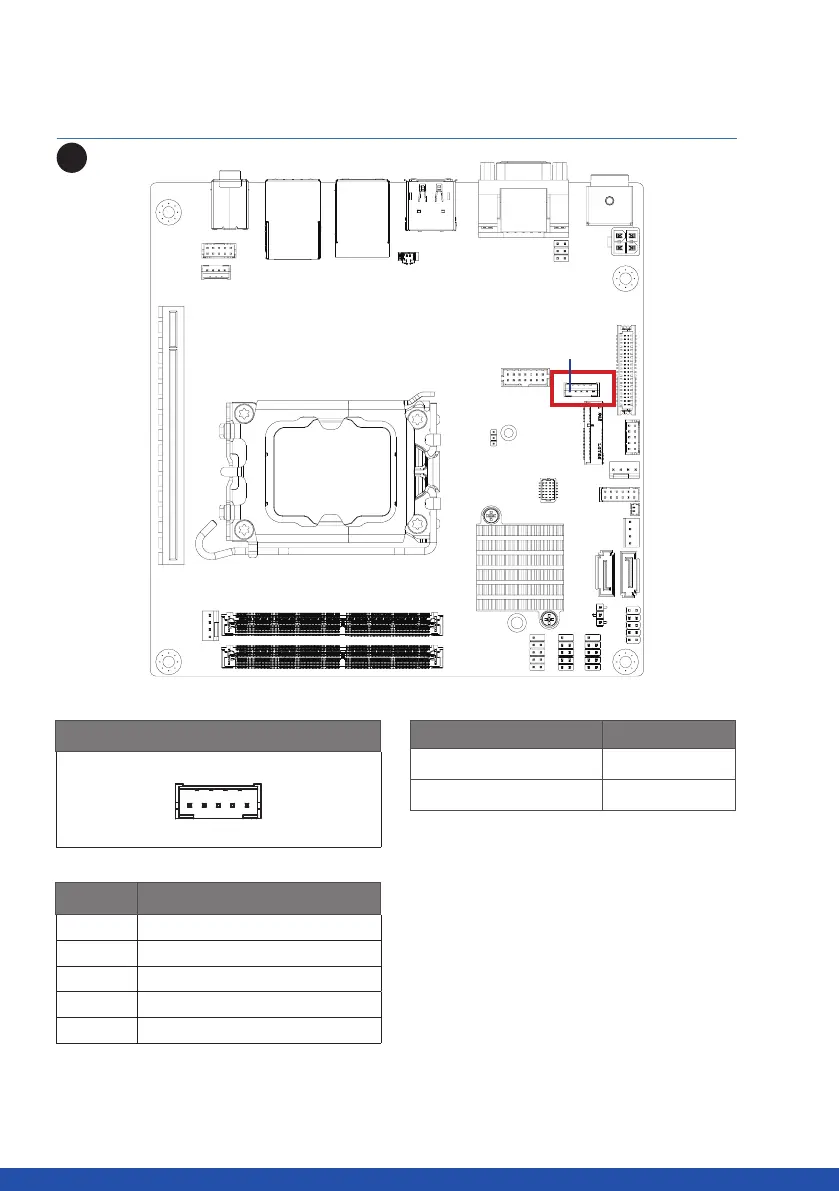

2.2.28 BKL_CN (Backlight Control Connector)

32

Backlight Control Connector

1 5

Pin No. Definition

1 5V (12V optional)

2 PWM

3 Backlight enable

4 GND

5 12V

Connector PN Vendor

721-81-05TW00 PINREX

A2001WV-05P146 JOINT-TECH

Pin 1
