Mini-ITX Motherboard mITX-Q670A (MQ670AI-SI)

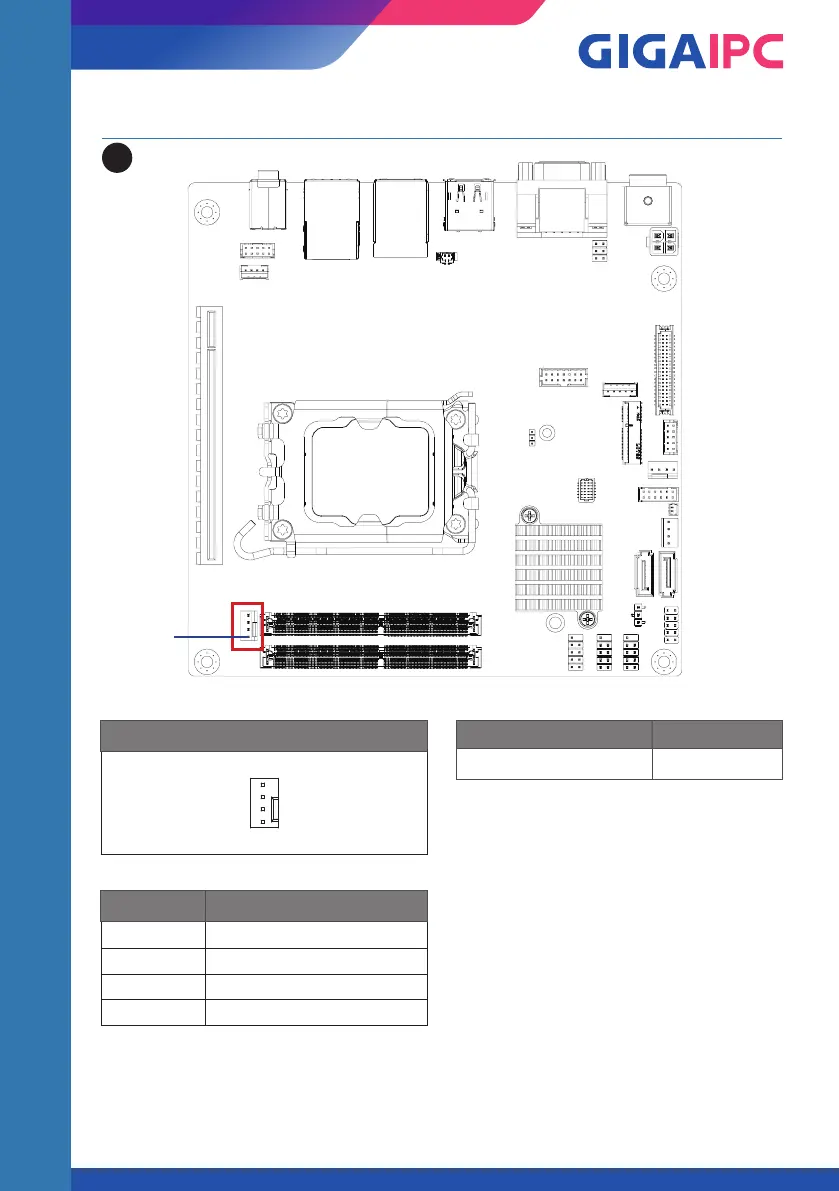

2.2.21 CPU_FAN (CPU FAN Connector)

25

Pin 1

CPU Fan Connector

4

1

Pin No. Definition

1 GND

2 12V

3 Detect

4 Speed Control

Connector PN Vendor

744-81-045W11 PINREX
