Mini-ITX Motherboard mITX-Q670A (MQ670AI-SI)

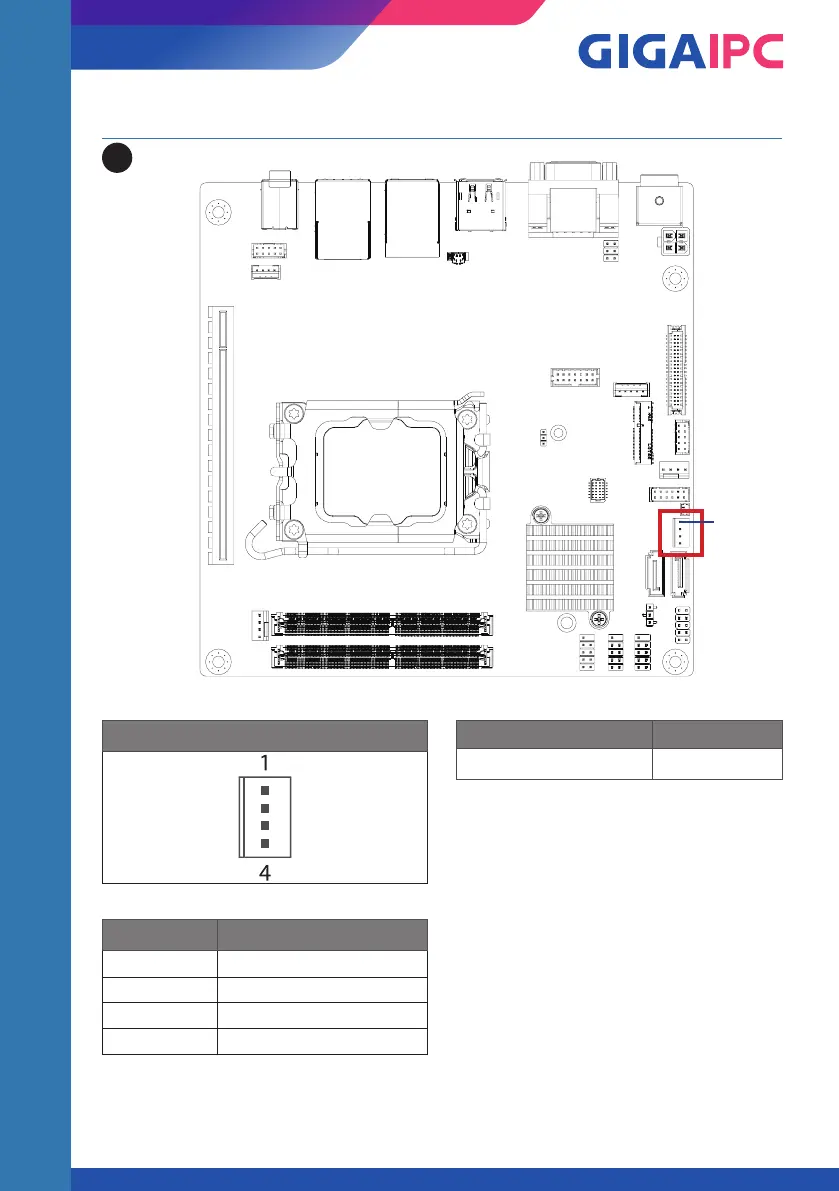

2.2.15 SATA_PWR (SATA Power Connector)

SATA Power Connector

Pin No. Definition

1 5V

2 GND

3 GND

4 5V

Connector PN Vendor

743-81-04TW00 PINREX

Pin 1
