GIGAIPC mITX-Q670A User Manual

51
www.gigaipc.com

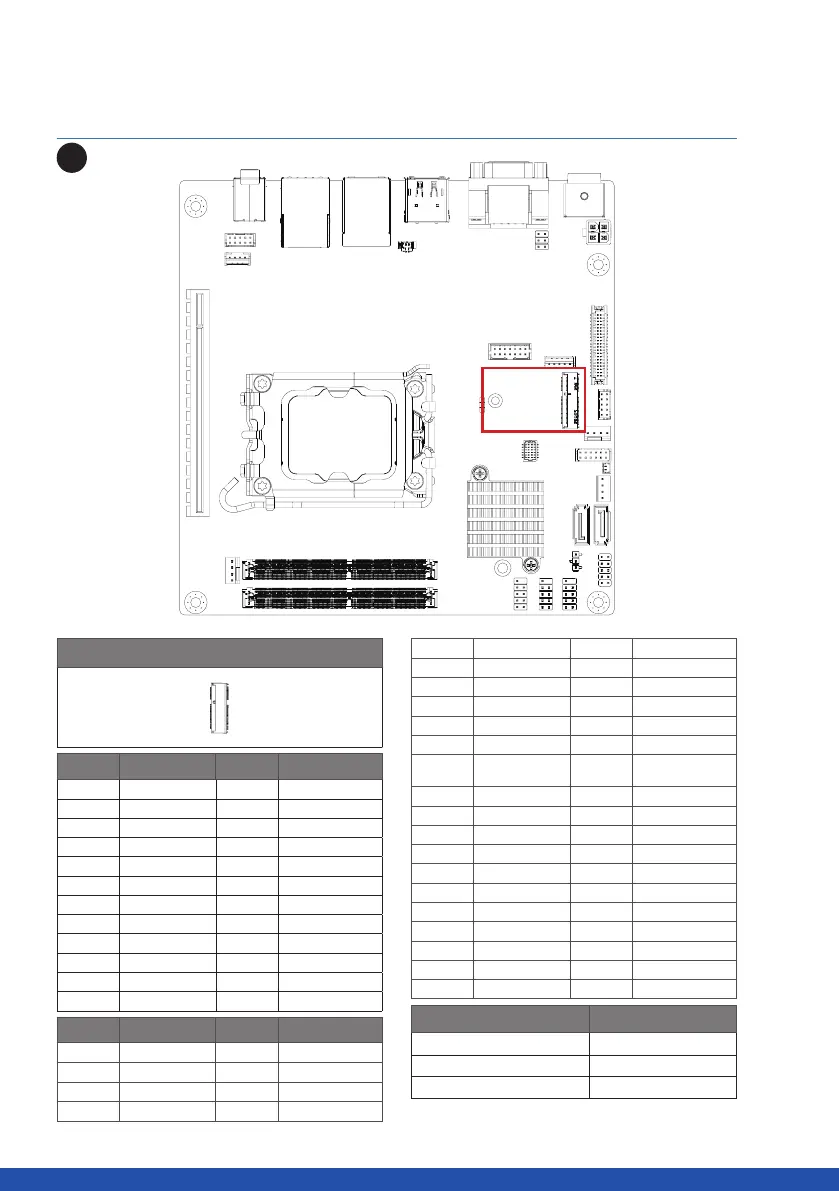

2.2.30 M2E (M.2 Slot, E-Key, NGFF-2230)
34
M.2 E Key Connector
12
75
74
Pin No. Definition Pin No. Definition
1 GND 2 3.3V
3 D1p 4 3.3V
5 D1n 6 NC
7 GND 8 NC
9 NC 10 NC
11 NC 12 NC
13 GND 14 NC
15 NC 16 NC
17 NC 18 GND
19 GND 20 NC
21 NC 22 NC
23 NC
Pin No. Definition Pin No. Definition
33 GND 32 NC
35 PCIE_TXp 34 NC
37 PCIE_TXn 36 NC
39 GND 38 CL_Reset
41 PCIE_RXp 40 CL _DATA
43 PCIE_RXn 42 CL_Clock
45 GND 44 NC
47 PCIE CLOCKp 46 NC
49 PCIE CLOCKn 48 NC
51 GND 50 SUSCLK
53 PCIE Clock
Request
52 PCIRST
55 PCIE wake up 54 BT_Disable
57 GND 56 WLAN_DISABLE
59 NC 58 NC
61 NC 60 NC
63 GND 62 NC
65 NC 64 NC
67 NC 66 NC
69 GND 68 NC
71 NC 70 NC
73 NC 72 3.3V
75 GND 74 3.3V
Connector PN Vendor
2E0BC21-S85BE-7H FOXCONN
80152-8521 BELLWETHER
APCI0095-P002A LOTES
