MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 15
Upgrading to BRCM2.x
5 Based on the BRCM2.x connections, connect the field wiring to the 8-pin connectors supplied.
These mount to the bottom row of connectors on the field wiring board. These form a
one-to-one correspondence to the 9-pin connections made to the D-Bo
x boards.

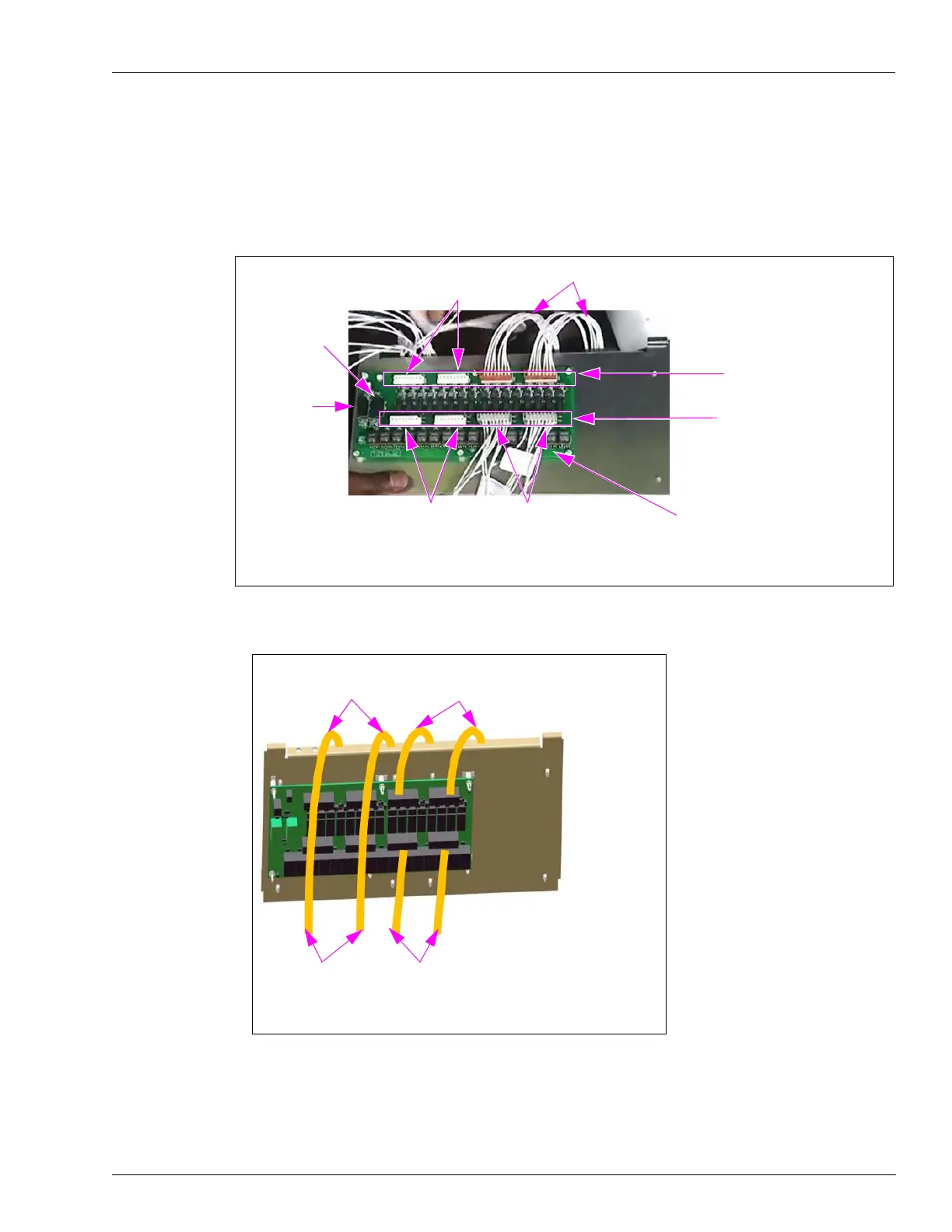

Figure 7: Field Wiring Board on Rear Side of D-Box Board Plate (Setup for Passport
Only)
P400
(High-speed
Connection)
P416
24 VDC
To Optional Second
D-Box Board
To D-Box Board
To CRINDs
in Dispensers
9-16
To CRINDs
in Dispensers 1-8
Connectors to D-Box Boards
Connectors to Dispensers
Note: This example is typical for Passport POS.
Field Wiring Board
Figure 8: Example for Generic CRIND
To Second D-Box Board,
Talking CRIND
To First D-Box Board,
Talking Pump
To CRINDs in
Dispensers 1-8
To Pumps in
Dispensers 1-8
Note: The CRIND connection must mate directly to D-Box board.
To Next Page
