Table 2: Jumper Selection for Loop Configuration

Single POS input Dual POS Input

JP_RX A- (1-16 RX Enable) B-(1-8 RX Enable)

JP_TX A-(9-16 TX A) B-(9-16 TX B)

Table 3: Loop Current Selection

20 mA 35 mA 45 mA

A B No jumper

Upgrading to BRCM2.x

MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 33

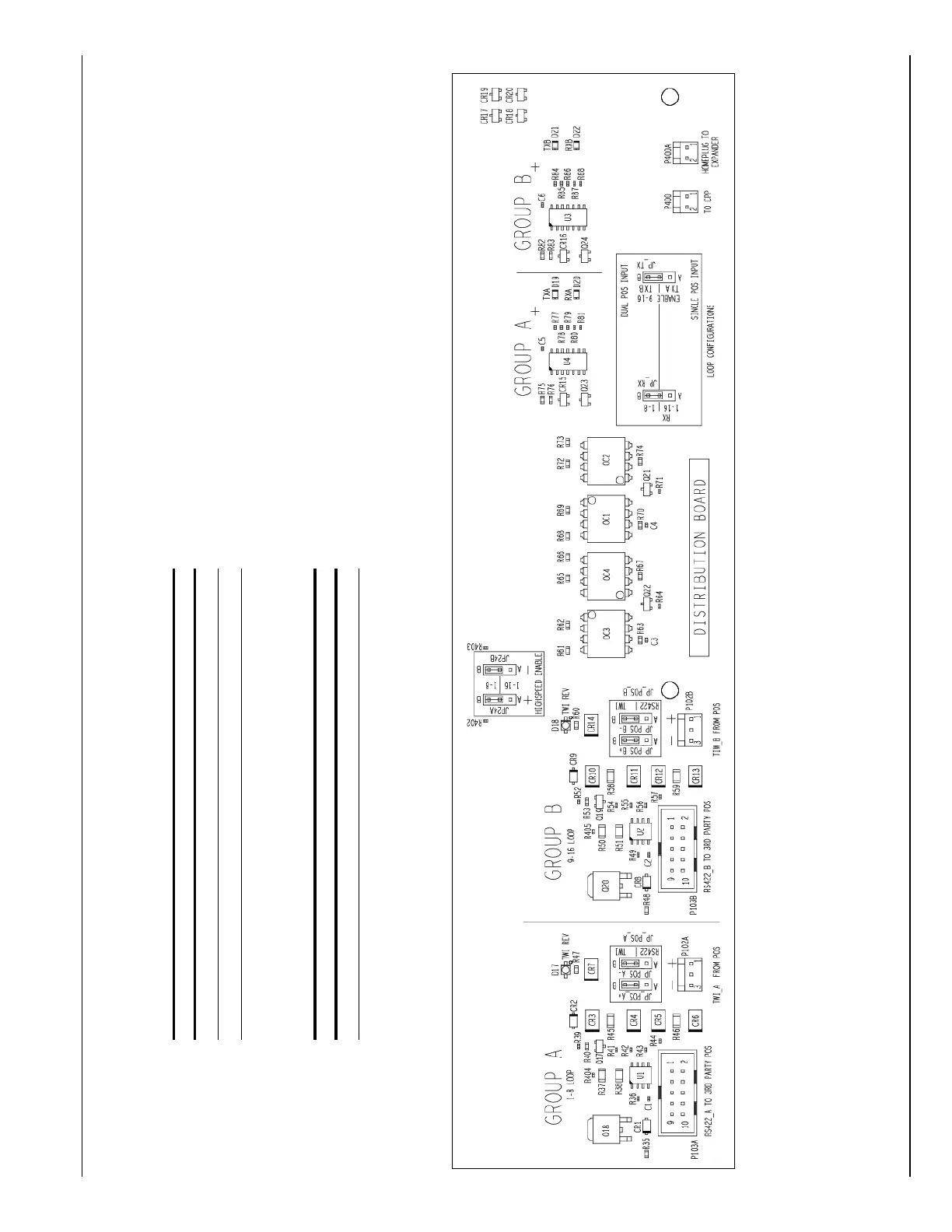

Figure 33: PCA, BRCM2 Distribution Board
