Page 16 MDE-5412C Passport® EDGE Installation and Start-up Manual · February 2019

Passport EDGE Hardware Setup

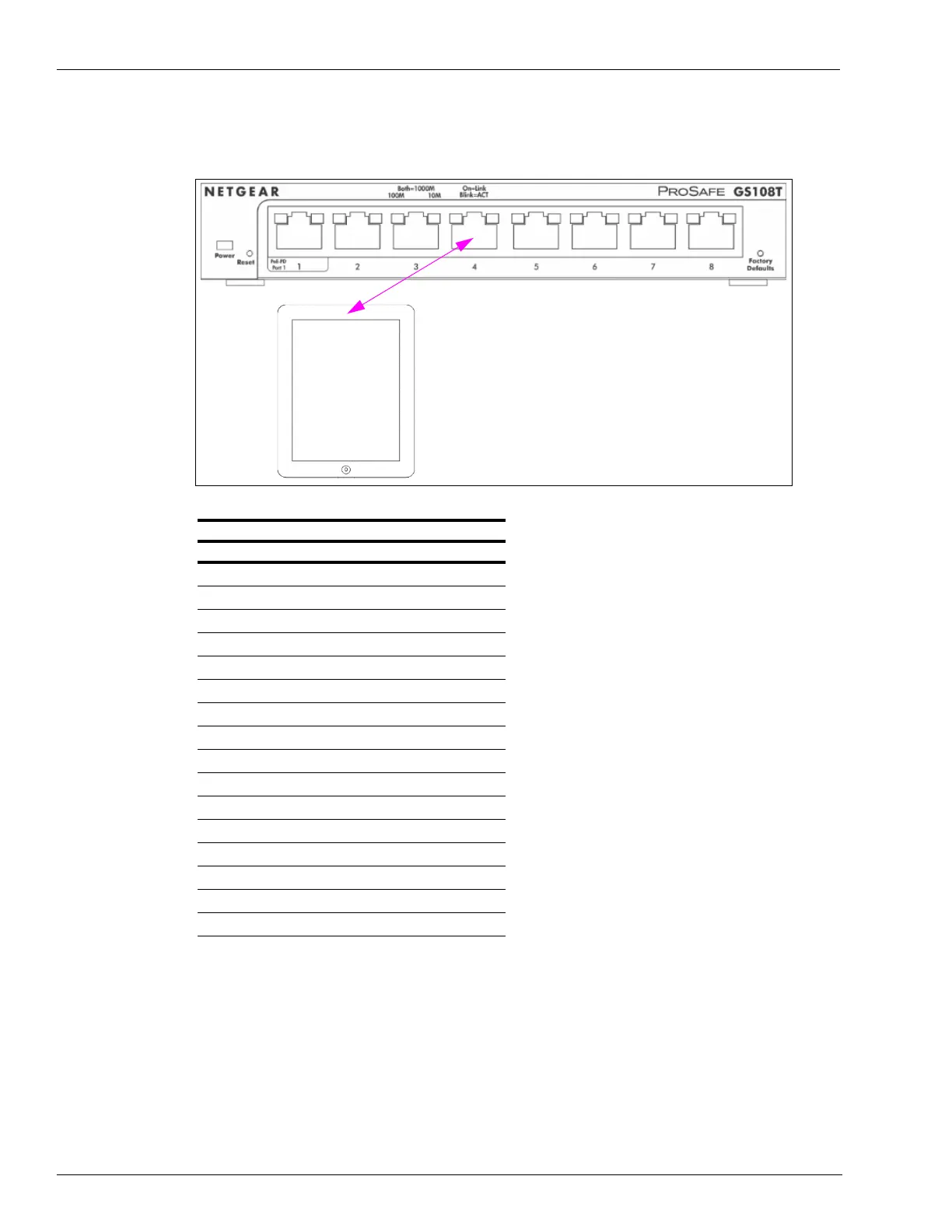

Example of the 8-port switch

Figure 8: 8-Port Switch



34T-16-FRONT-EDGE-BASIC

Port V-LAN Segment DEVICE

1 Switch (Trunk) In MG

2 EDH EDH

3 POS TPOS (Server)

4 Auxiliary Tablet 1

5 POS PIN Pad 1

6 Auxiliary Receipt Printer 1

7 Not Used Not Used

8 Auxiliary Tablet 2

9 PayDev PIN Pad 2

10 Auxiliary Receipt Printer 2

11 Auxiliary Applause Media System

12 PayDev Dispensers

13 Not Used Not Used

14 Not Used Not Used

15 Not Used Not Used

16 Not Used Not Used
