MDE-5412C Passport® EDGE Installation and Start-up Manual · February 2019 Page 17
VeriFone® MX915 PIN Pad
VeriFone
®
MX915 PIN Pad
The Passport Edge system uses the VeriFone MX915 PIN Pad (P/N will vary as per based
network). The MX915 PIN connects to the SZR using a CAT5 cable (see Figure 9).
For PIN pad
installation instructions, refer to MDE-52
13 VeriFone MX915 PIN Pad Installations Instructions.
30T-8- FRONT-EDGE-BASIC
Port V-LAN Segment DEVICE
1 Switch (Trunk) In MG
2 EDH EDH
3 POS TPOS (Server)
4 Auxiliary Tablet 1
5 PayDev PIN Pad 1
6 Auxiliary Receipt Printer 1
7 Auxiliary APPLAUSE
8 PayDev DISPENSERS

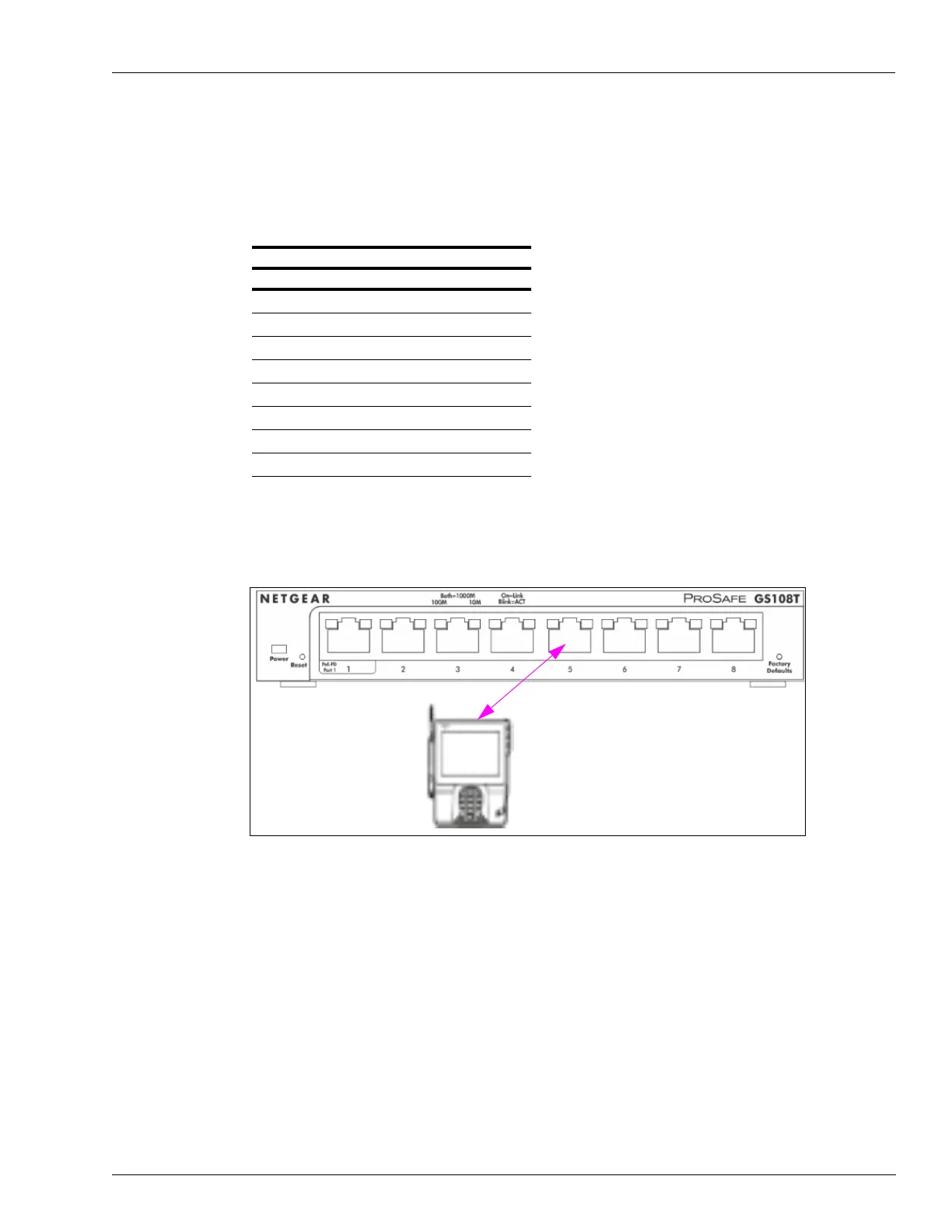

Example of the 8-port switch
Figure 9: Connecting MX915 PIN Pad to SZR
