Page 22 MDE-5412C Passport® EDGE Installation and Start-up Manual · February 2019
Xenon™ 1900 Scanner
Xenon
1900 Scanner
The Passport Edge system uses the Xenon 1900 2D Scanner (PA02710513). The Xenon 1900
connects to either COM 1 or COM 2 port on the Passport Edge Server, using either a dongle or a
CAT5 cable with a Q13180-63B gender adapter. If the distance from Xenon 1900 to the Passport
Edge Server is more that 50-feet, a serial line booster maybe required to ensure communication.
For more information, refer to the table in “Table of Serial Line Booster Requirements (when
and if needed)” to select the type of serial line booster that might be needed.

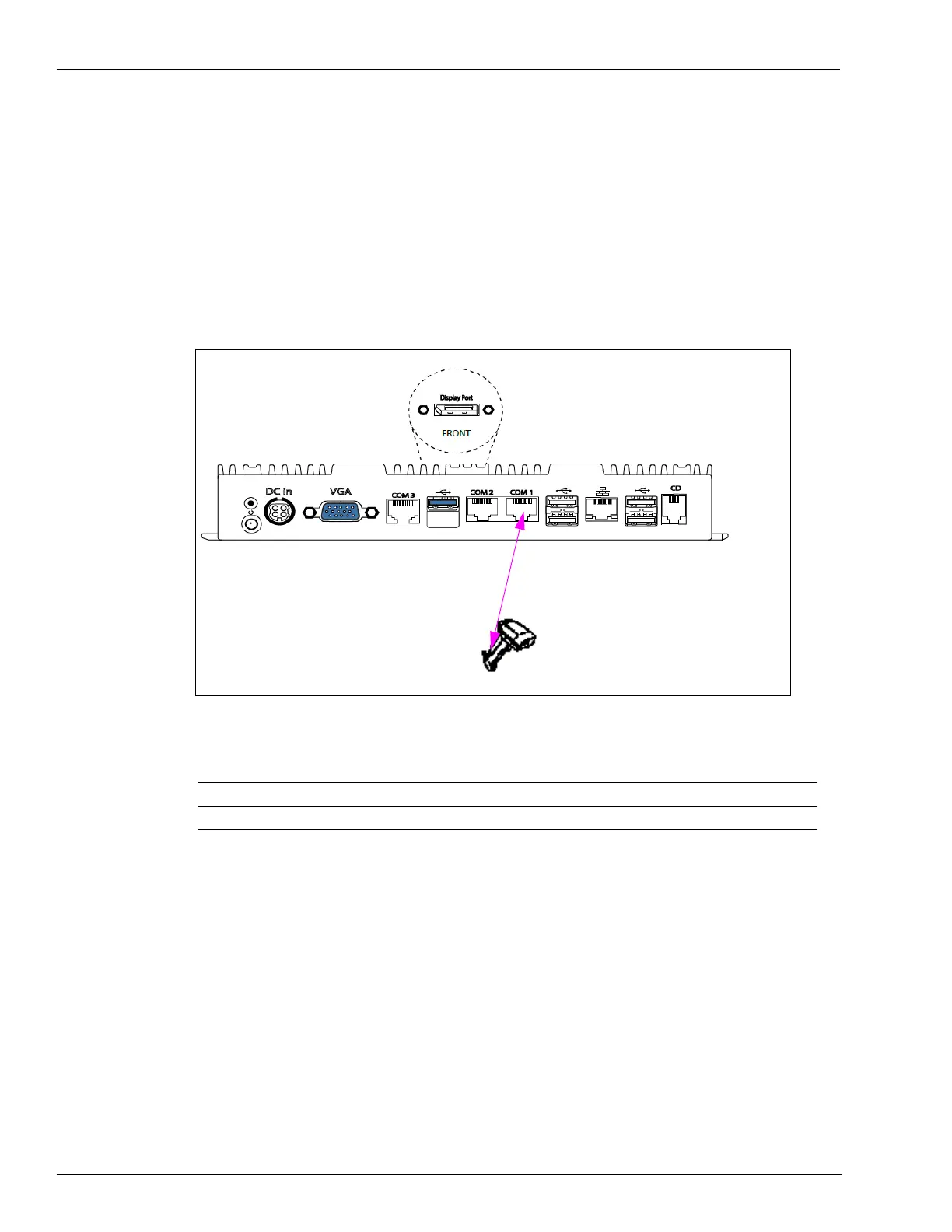

Figure 12: Connecting Xenon 1900 Scanner to Passport EDGE Server
Table of Serial Line Booster Requirements (when and if needed)
0-50 feet 50-100 feet 100-150 feet 150-1000 feet
No Booster required Q13241 102 is recommended Q13241 102 is required Q13241 120 is required
