03_17

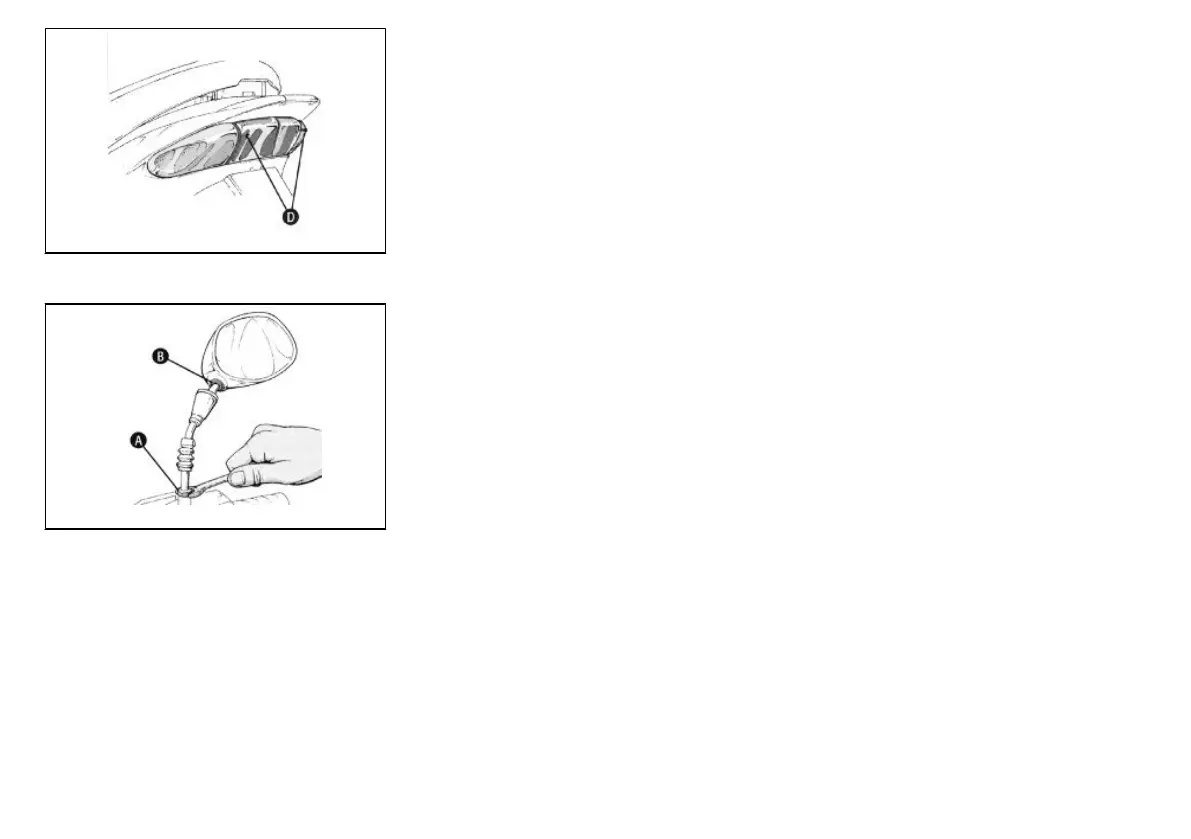

Rearopticalunit (03_17)
To access the taillight, remove the 2 screws "D" that secure it. This way both the
taillight and turn indicator bulbs can be removed. The bulbs have a bayonet coupling,
to remove them press gently and twist counterclockwise about 30°. To reassemble
the parts follow the above steps on the opposite order.
03_18
Rear-viewmirrors (03_18)
To adjust the stem position, lift the rubber protection and loosen the nut «A» with an
open wrench (opening 13 mm); adjust the stem to the best position and tighten the
screw. The rear-view mirror is fitted on a stem with a ball "joint" «B». The mirror can
be adjusted to the desired position manually.
41
