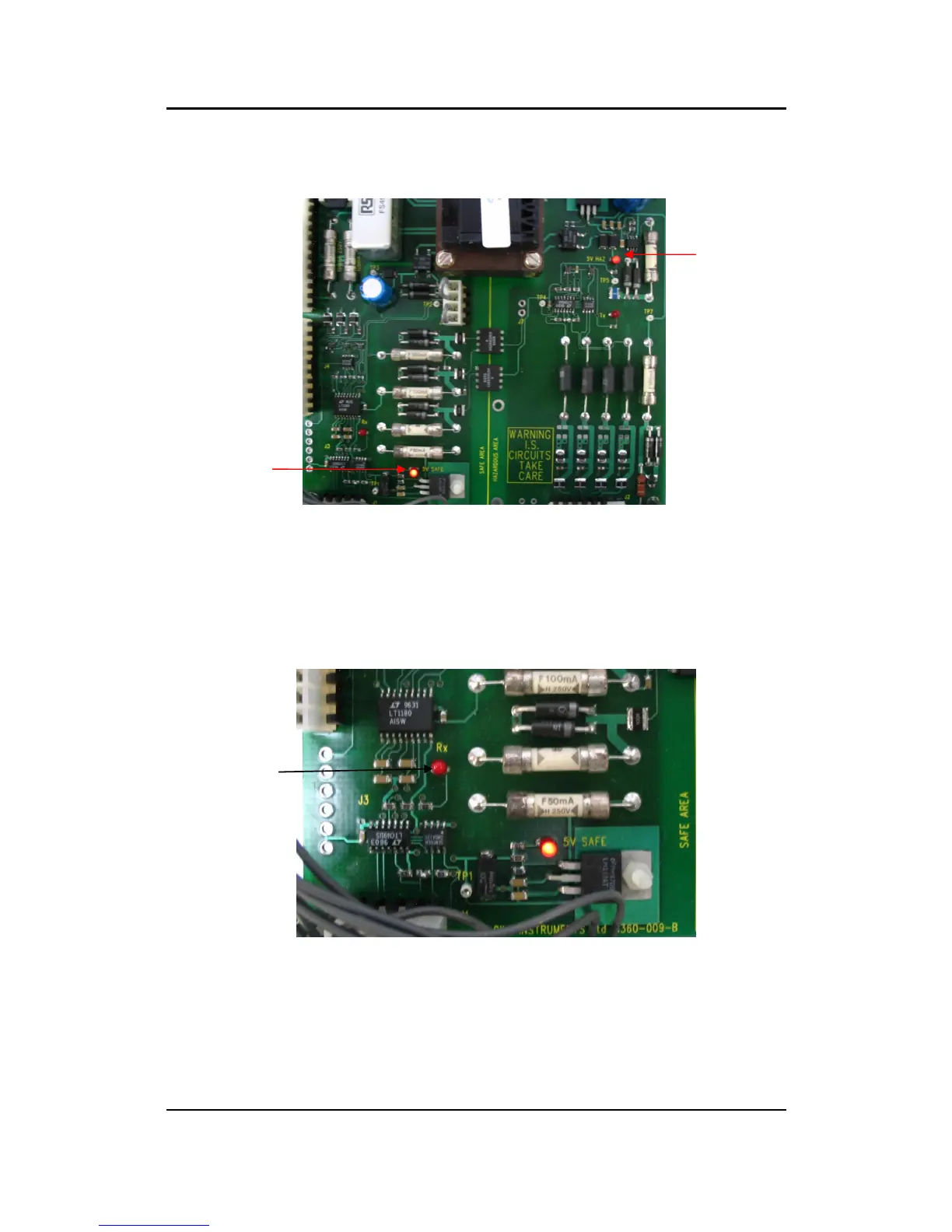

When the IS Power Supply is powered up the +5v SAFE and +5v HAZ LED’s will be
illuminated.
Data Tests
With the Sensor connected and outputting data to the PCI box.
Examine the Main PCB and the Red RX LED at the bottom left of the PCB will be seen
to flash on and off at the sensor output rate (1Hz to 4Hz). This indicates that data is being
successfully output from the IS Anemometer.
+5V
HAZ LED
+5V
SAFE LED
Rx LED
