5.2.5 Mounting
Do NOT remove the black “rubber” transducer caps. Take care not to knock the
four transducer arms. All the time the WindObserver is not in its final location, it
should be protected from damage by keeping it in its original packaging, treating it
as a delicate instrument.
When transporting the Anemometer from its box to its install location the supplied head
cover parts (1277-30-045) should be fitted around the anemometer head (see below) and
secured in place using supplied Tyraps.
Upon install completion remove the head cover.
The Anemometer should be mounted on a suitable surface as defined in drawing 1086-G-
045 shown below, using the mounting kit supplied and described in the Packing List.
Warranty and Certification is void if the case is removed.

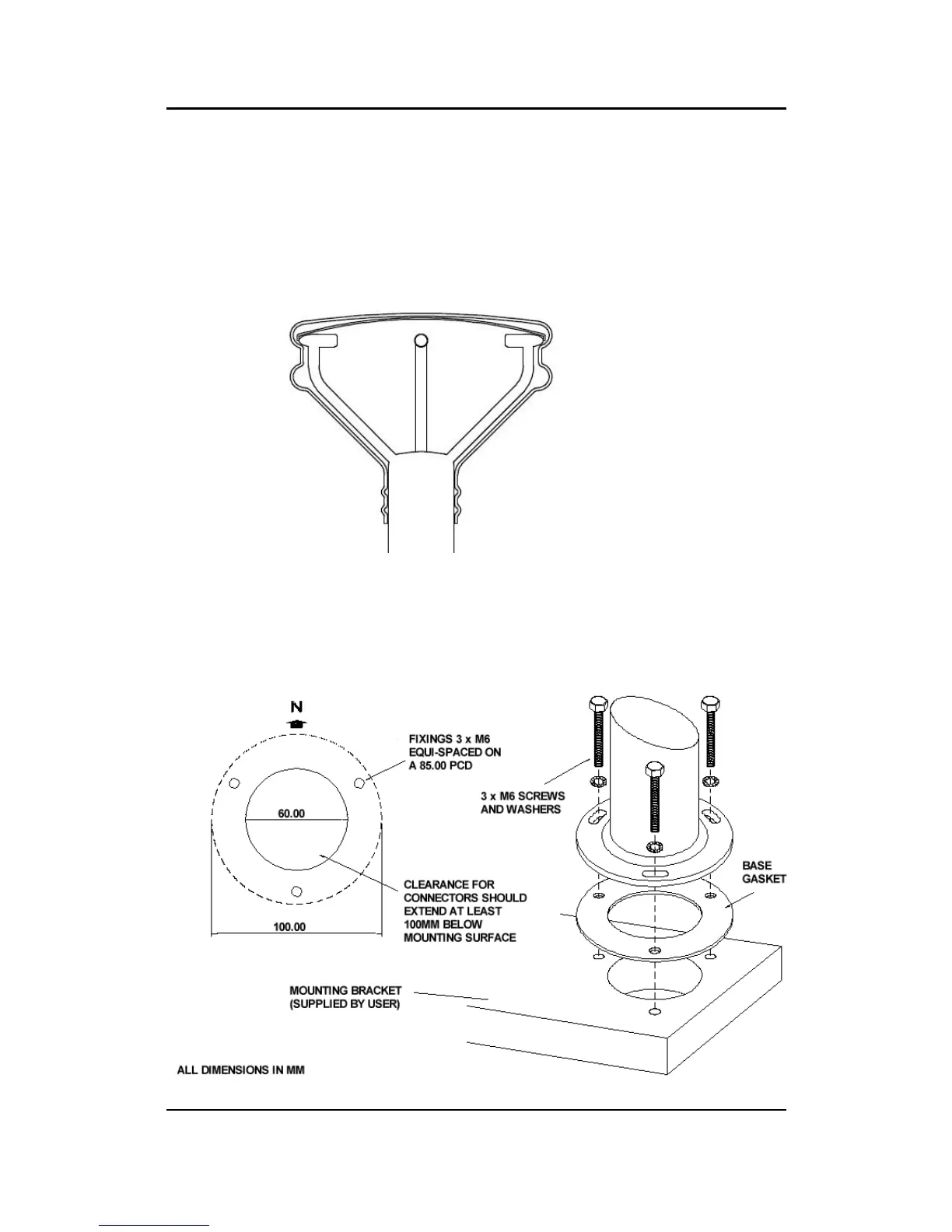

Drawing 1086-G-045 Issue 2 Anemometer Installation Details
.
