Ginlong Solis Series User Manual

4. Installation
4.1 Select a Location for the Inverter
To select a location for the inverter, the following criteria should be considered:
Install on a wall or strong structure capable of bearing the weight.
The inverter is designed to work in extreme temperatures. The ambient operating
temperature range is from -25℃ to 60℃.
If there is more than 1 inverter installed together, A minimum 300mm clearance
should be kept between each inverter. The bottom of the inverter should be 500mm
clearance to the ground.
Visibility of the LED status indicator lights and the LCD located at the front panel of
the inverter should be considered.
Adequate ventilation must be provided if the inverter is to be installed in a confined space.
.9.
NOTE:
Nothing should be stored on or placed against the inverter.
300mm
500mm 500mm
300mm 300mm
300mm 300mm

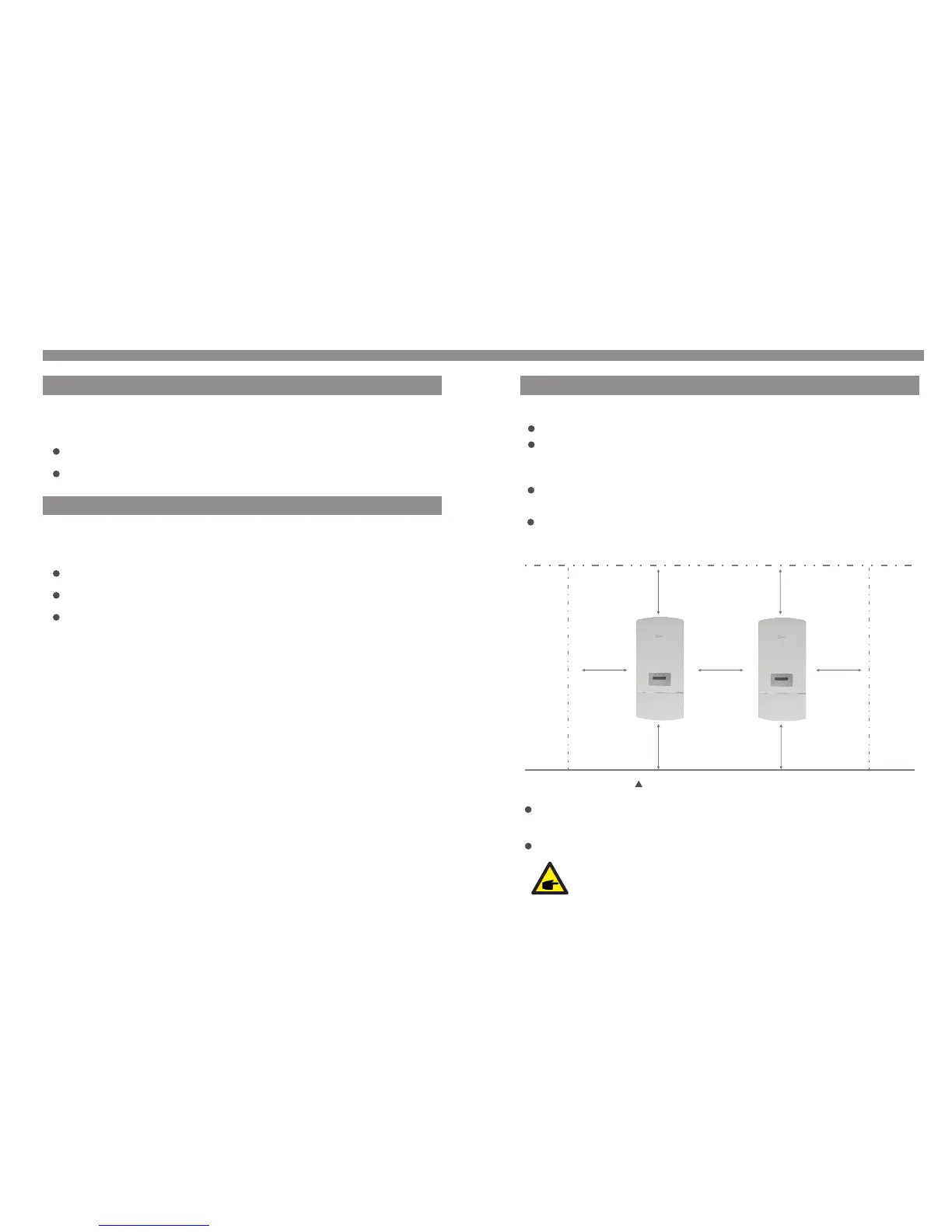

Figure 4.1 Inverter Mounting clearance
3.3 Keypad
3.4 LCD
There are four keys in the front panel of the Inverter(from left to right):
ESC, UP, DOWN and ENTER keys. The keypad is used for:
Scrolling through the displayed options (the UP and DOWN keys);
Access to modify the adjustable settings (the ESC and ENTER keys).
3. Overview
The two-line Liquid Crystal Display (LCD) is located at the front panel of the Inverter,
which shows the following information:
Inverter operation status and data;
Service messages for operator;
Alarm messages and fault indications.
.8.
Install vertically with a maximum incline of +/- 5°.If the mounted inverter is tilted to an
angle greater than the maximum noted, heat dissipation can be inhibited, and may result
in less than expected output power.
