7.VgWatt-UL
Description: Inverter will change the active output power based on voltage change.
Note: This is the Volt-Watt Setting for UL1741SA Standards.

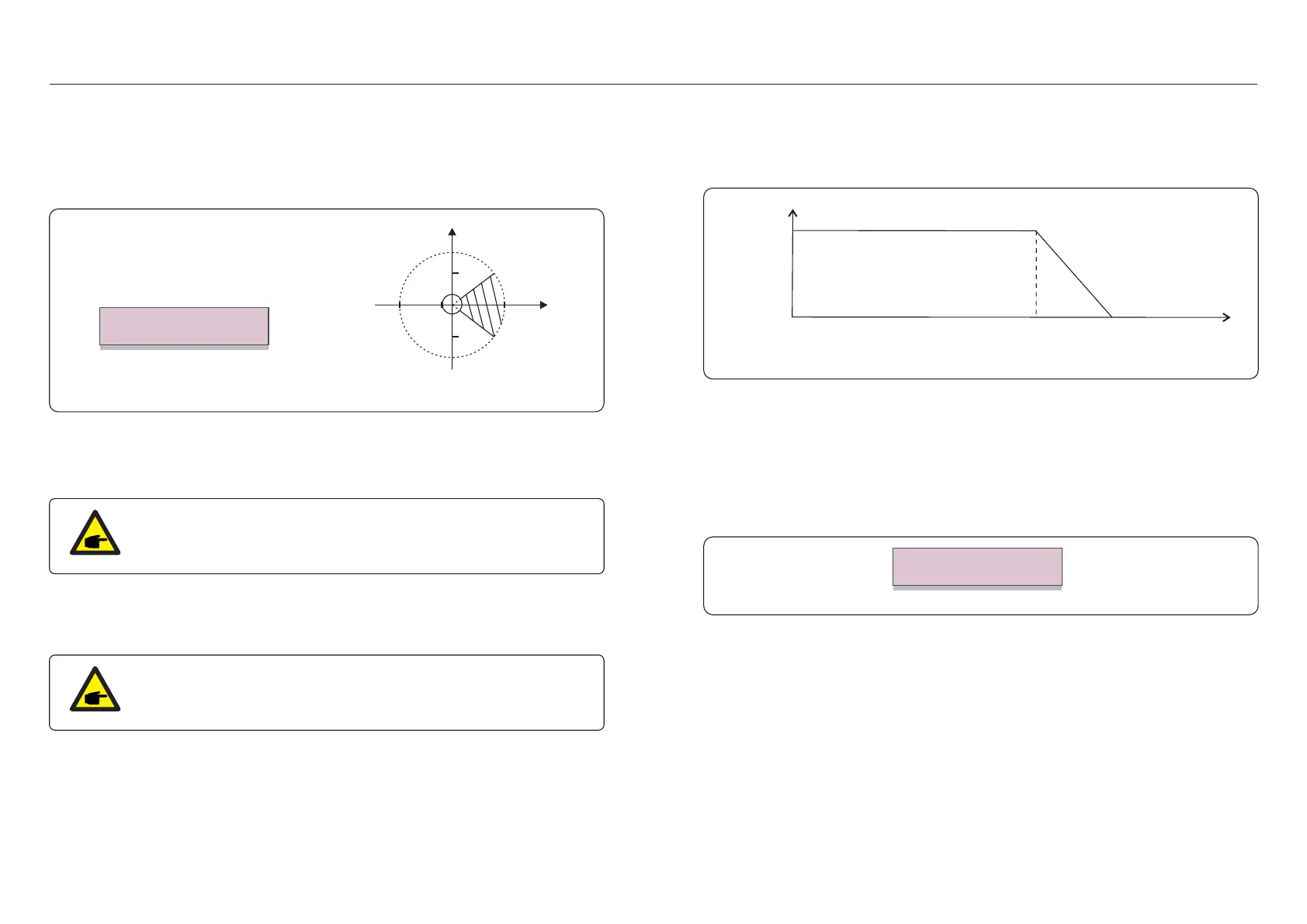

Figure 6.26 VgWatt-UL
Voltage1: 318V
P- Limit1: 100%
100% of
Input
Power
Vmin Vnom Vstart Vstop Vmax
AC Volt
0
Figure 6.25 Volt- Watt characteristic
Default Settings for UL1741SA:
Rated 600V Grid
V1:less than V2
V2:less than Vstart
V3 (Vstart): (346-415V) Default381V
V4 (Vstop): (381-450V) Default 415V
P1:100% P2:100% P3: 100% P4:0%
6. Normal operation6. Normal operation
YES=<ENT> NO=<ESC>
Power Factor: + 1. 00
Figure 6.23 Fixed-PF Figure 6.24 PF Range
4.Fixed-PF
Description: Inverter will output power with fixed power factor.
Setting Range: -0.8 to +0.8
Default value is PF = 1
5. Reac-power (Not Required)
Description: Inverter will generate reactive power based on changing output power.
Note: This Setting is NOT required by UL1741SA Standards.
This function is for maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
6. P-factor (Not Required)
Description: Inverter will change power factor based on changing output power.
Note: This Setting is NOT required by UL1741SA Standards.
This function is for maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
0,6
0,6
1,0-1,0
P/Pn
under-excited
Q/Pn
under-excited
over-excited
over-excited
III
IV
III
-0,2
.51..50.

Ginlong Solis Specifications

General

Number of MPP Trackers	2
Cooling Method	Natural Convection
Protection Level	IP65
Model	Solis
Type	Grid-Tied Inverter
AC Output Voltage	230V
AC Output Frequency	50 Hz / 60 Hz
Operating Temperature Range	-25°C to 60°C
Warranty	5 years
