Figure 10.2 Inverter output power by input voltage
P(%)
100%
50%
860 1300 15001450
Input Voltage(V)
10. Appendices
.70. .71.
10. Appendices
Parts
Torque
Cover screws 2.4-2.7 ft.lbs
Ground screws (Cover)
7.4-14.7 ft.lbs
Grid terminals
7.4-14.7 ft.lbs
Ground screws (Inverter)
7.4-14.7 ft.lbs

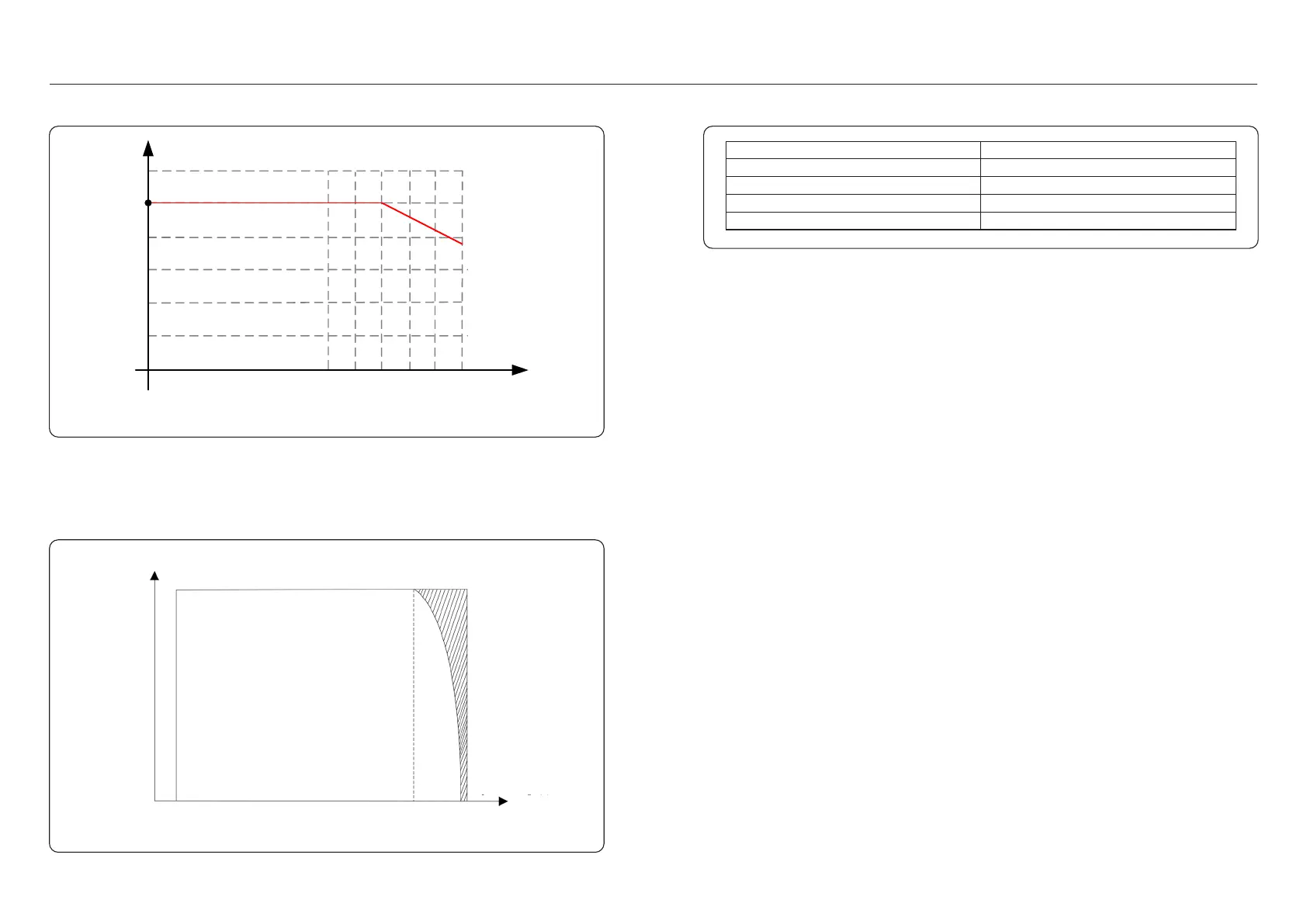

Figure 10.1 For all models of inverter
Comments:
A thermal sensor inside the inverter is calibrated to determine ambient temperature.
All inverters will begin a sloped derate at 45°C ending at 78% output power at 60°C.
Ambient Temperature [℃ ]
Output power / Rated power
0
0.8
1.2
0
60
1.0
4535
0.2
0.4
0.6
40 50 55
0.78
At temperatures below -25°C and above 60°C inverter ceases operation.
