Gira System 3000 User Manual

Gira Bluetoorh app 21
Setting device parameters
3.2.1
Teach in
You can find the MAC address in the housing cover of the brightness and tem-
perature sensor Bluetooth.
1 Tap the [Set device parameters] button in the detail view.
 The [Set device parameters overview] page opens.
2 Tap the [Set device parameters] button.
 The [Set device parameters overview] page opens.
3 Select [Brightness sensor].
 The [Brightness sensor] page opens.
4 Tap the [Teach in sensor] button.
 The [Teach in sensor] page opens.
5 Enter the MAC address.
6Tap [OK].
 The [Brightness sensor] page opens.
 Set the sensor [see 3.2.2].

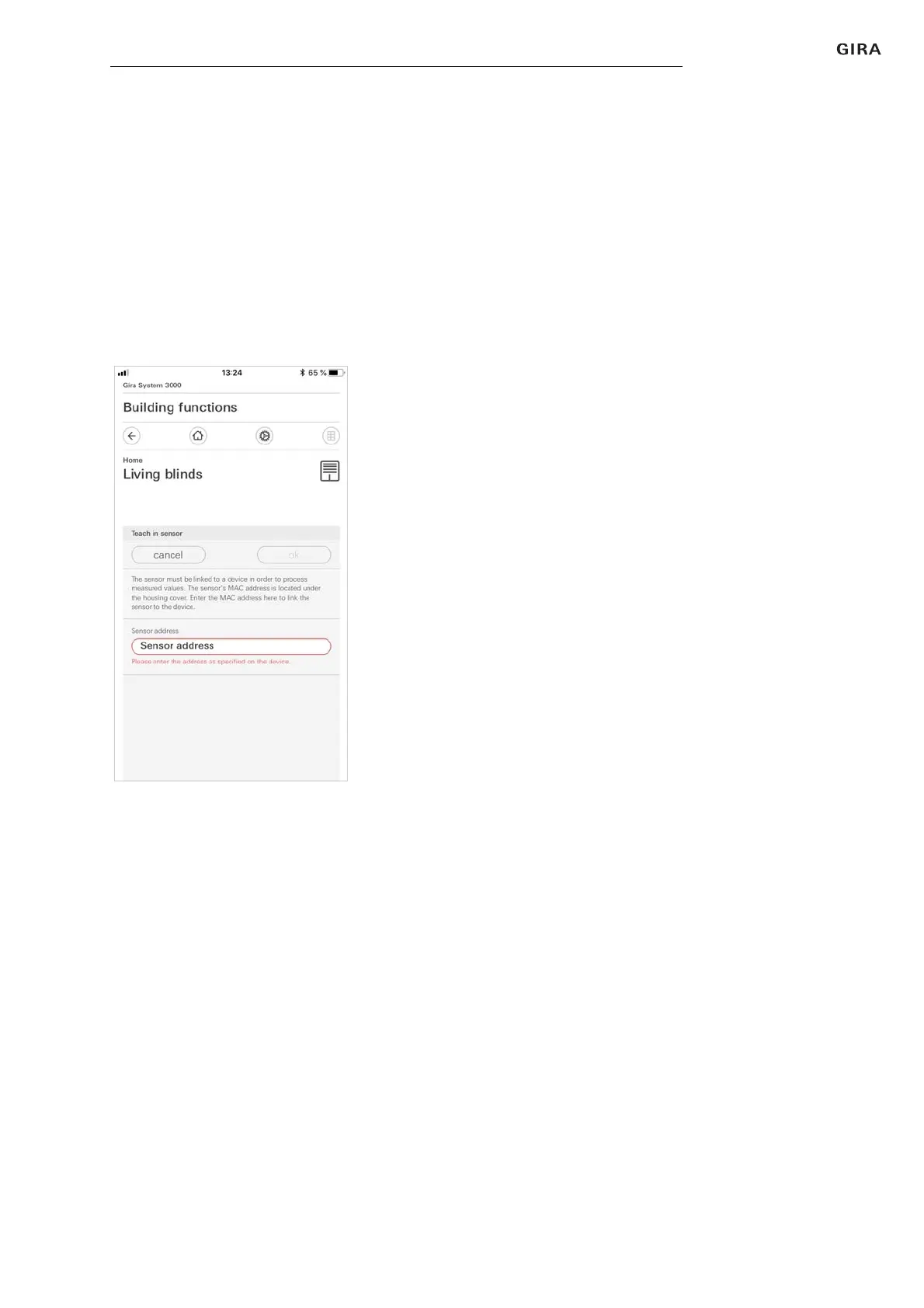

Fig. 22
Teach in sensor

Gira System 3000 Specifications

General

Operating voltage	230 V AC
Protection type	IP20
Type of connection	Screw terminals
Housing Material	Plastic
Type	Control Unit
Compatibility	Gira System 3000
Ambient temperature	+45 °C
Power Supply	Mains power
