Gira System 3000 User Manual

Gira Bluetoorh app 3
1
User interface
1.1
Structure of the user interface
Note
Differences in the views
The figures in the tile or detail views may differ from the views in your project.
Different operating and control options are available according to the combina-
tion of insert and top unit. Accordingly, this document refers only to the basic
functions.
The user interface is divided into four areas:
[1] Status bar
[2] Navigation bar [see 1.2]
[3] Action area [see 1.3]
[4] Orientation guide
At the lower edge of the screen you will see a circle for every available func-
tion or page. The circle marked shows the current position. By swiping hori-
zontally, you can change the function or page. This also causes the marked
circle to shift.

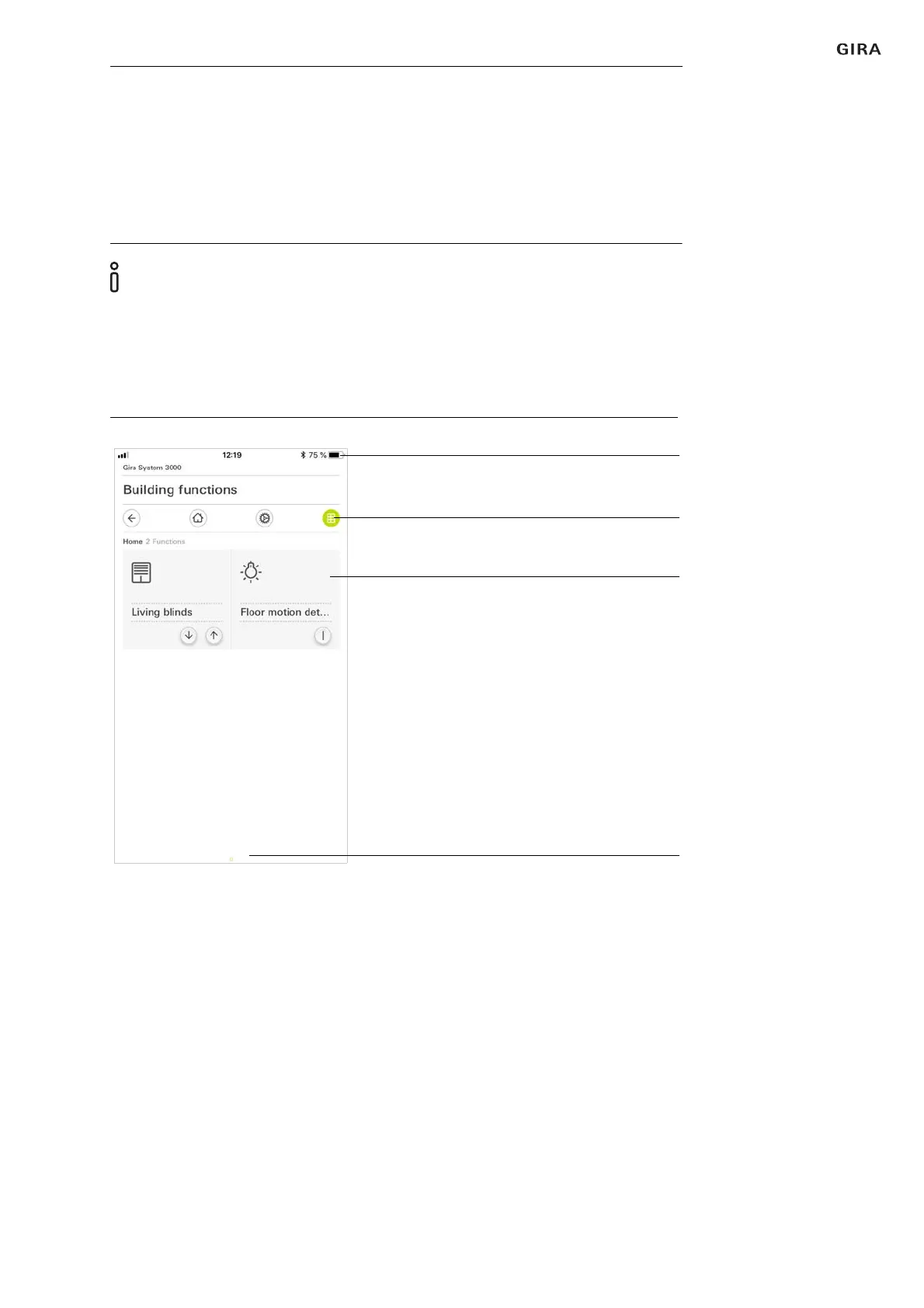

Fig. 1
User interface
[1]
[2]
[3]
[4]

Gira System 3000 Specifications

General

Operating voltage	230 V AC
Protection type	IP20
Type of connection	Screw terminals
Housing Material	Plastic
Type	Control Unit
Compatibility	Gira System 3000
Ambient temperature	+45 °C
Power Supply	Mains power
