Girard Systems NOVA - Adjusting Pitch and Arm

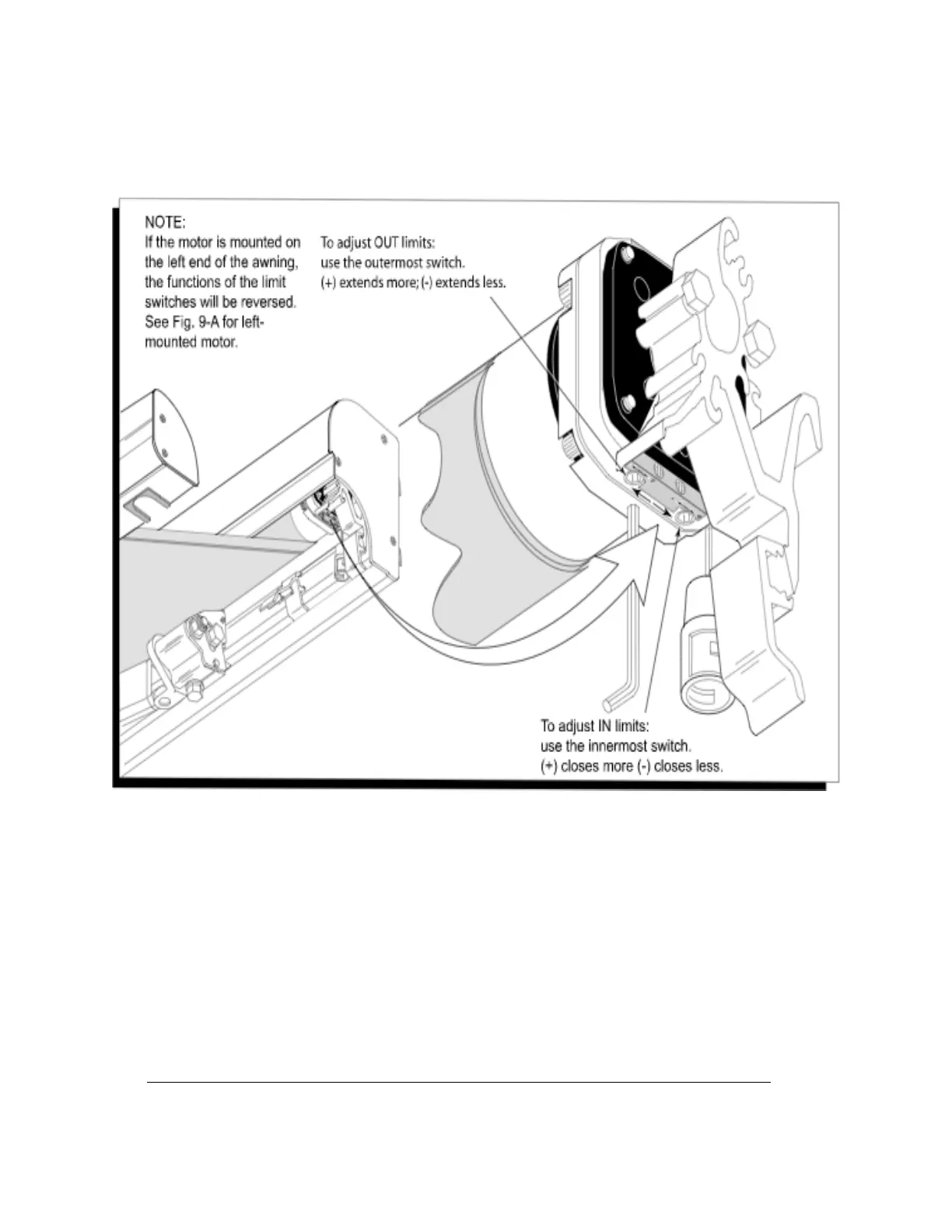

holes, turn the black key (or 4mm allen wrench) to make the necessary adjustments.
Typically, the motors are labeled with a + or a -. (Figure 7)

(Figure 8)
5. Approximately ¼ turn of the adjustment screws represents about 1” of awning
movement. NEVER set outward limits so that the fabric is slack with full arm extension.
For proper adjustment set limit switch to stop the motor just before the arms lock. This
will expose about an 1/8” gap at the elbow.
B. ADJUSTING PITCH and ARM (Elbow) HEIGHTH
26
