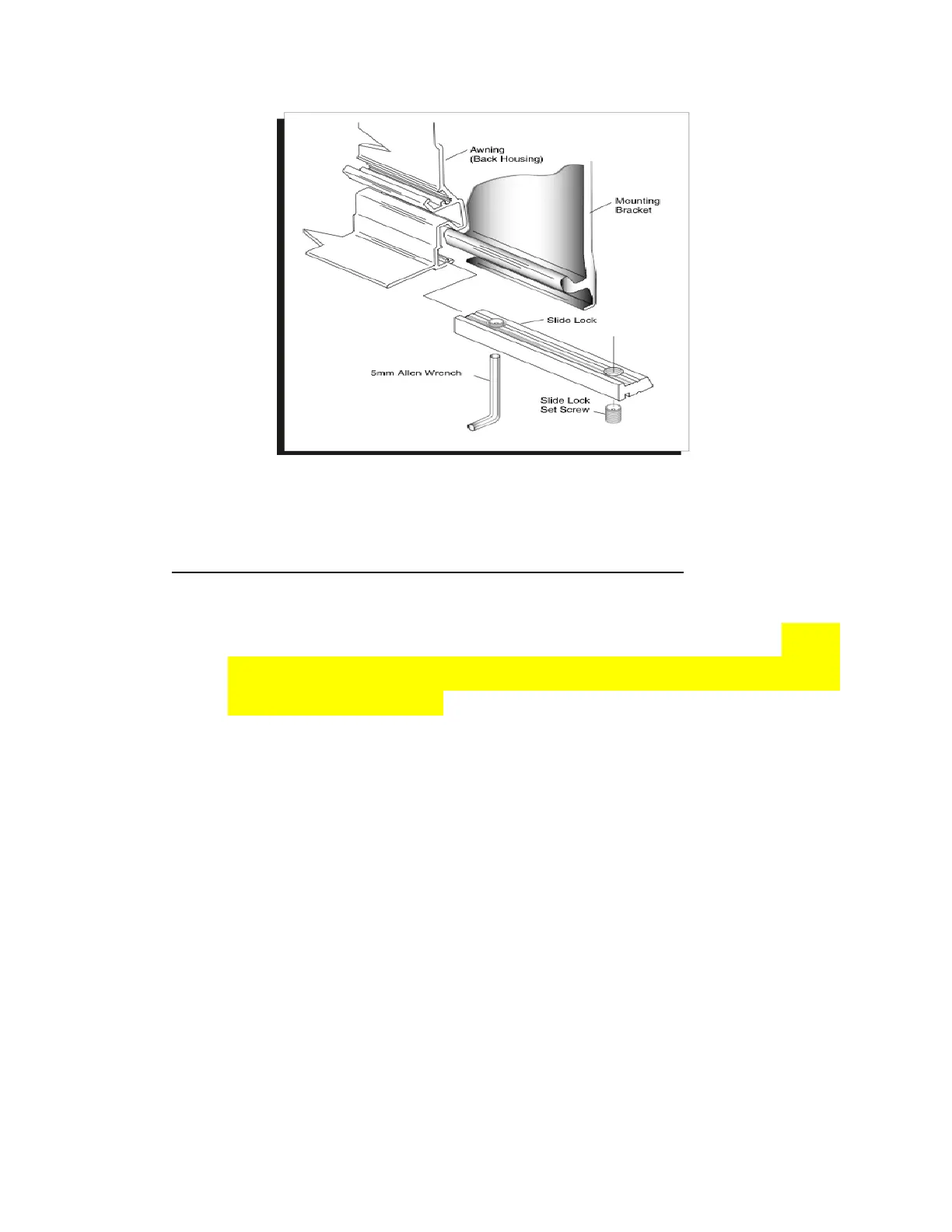

(FIGURE 1)
B.
LAYOUT, MOUNTING THE BRACKETS
A.
ROOFMOUNT APPLICATION – NOTE: The clearance needed for
roofmount application of the NOVA varies by manufacturer. NOTE:
THE LEAD RAIL OF THE NOVA Awning WILL DROP IMMEDIATELY
AFTER DEPLOYMENT. The shape of the roof, the depth of
installation, type of roofmount bracket used and all other factors
should be taken into consideration when installing this product..
Please consult Girard Systems if there are any questions regarding
your installation.
1.
When using the roofmount application, roofmount brackets can be
ordered through Girard Systems or you may have your own
fabricated. These brackets will be used in conjunction with the
mounting brackets supplied with your awning.
2.
Determine the location for the final installation position of the awning,
including depth to be installed.
3.
Roofmount brackets must be installed within two(2) inches of the ends
of the awning. Once you have determined the location of the two end
brackets snap a chalk line between the two points to ensure
