NOTE: Your NOVA Awning will have the pitch adjusted to its highest point. DO
NOT TRY TO RAISE THE PITCH, this could result in damaging the awning.
1. Extend the awning about 18”
2. On the arm selected, loosen the two(2) nylon nuts on the upper side of the arm
connection using a 19mm open-end wrench.

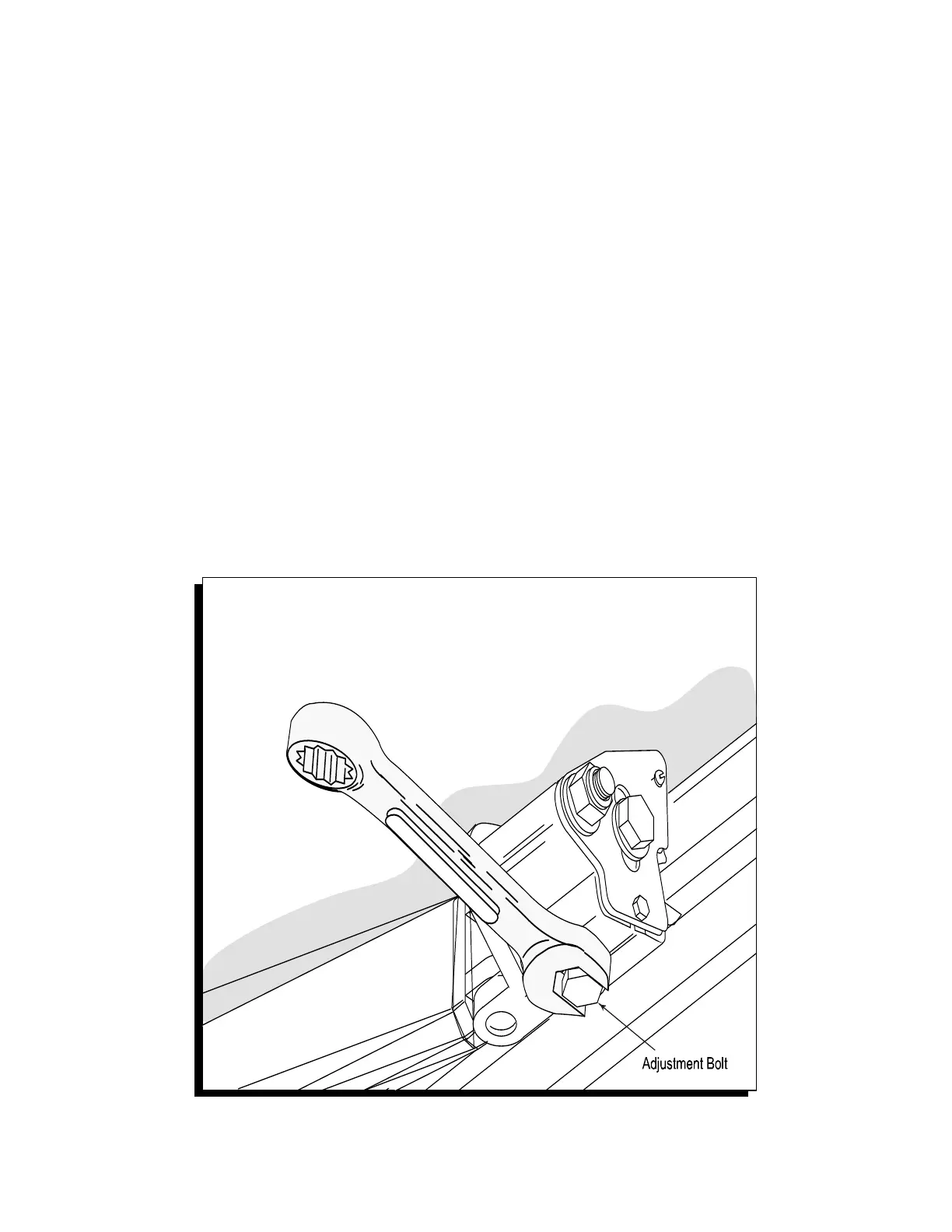

3. Locate the larger adjustment bolt located on the bottom of the upper arm
connection. (Figure 10) Using a 19mm open-end wrench rotate the bolt counter-
clockwise to LOOSEN or lower the pitch. If the pitch is lowered too far you may
turn the bolt clockwise or TIGHTEN to raise the pitch. DO NOT
OVERTIGHTEN.
4. Tighten the two(2) nylon nuts located on the side of the upper arm connection.
5. Close the awning completely to ensure a proper fit.
