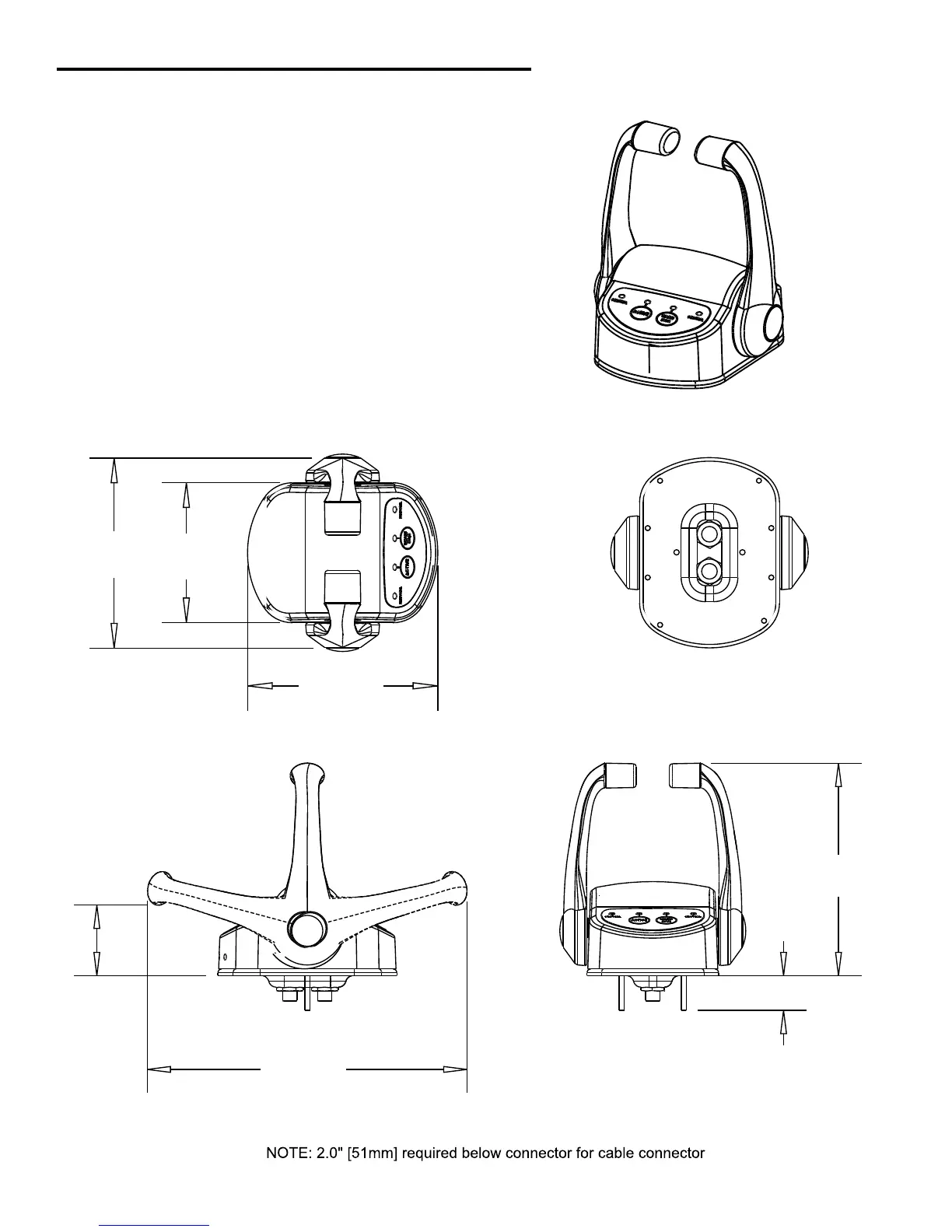

Glendinning EEC4 - Control Head Dimensions; Control Head Dimensions (Top Mount)

Section 2.0 — Appendix / Reference
21
5.8"
(146.6mm)
4.25"
(107.9mm)
5.8"
(146.6mm)
6.85"
(173.9mm)
1.12"
(28.5mm)
10.31"
(261.8mm)
2.27"
(57.7mm)
1/4MountingStud
2.125"long2places
Control Head Dimensions (Top Mount)
