EEC4 Installation Manual

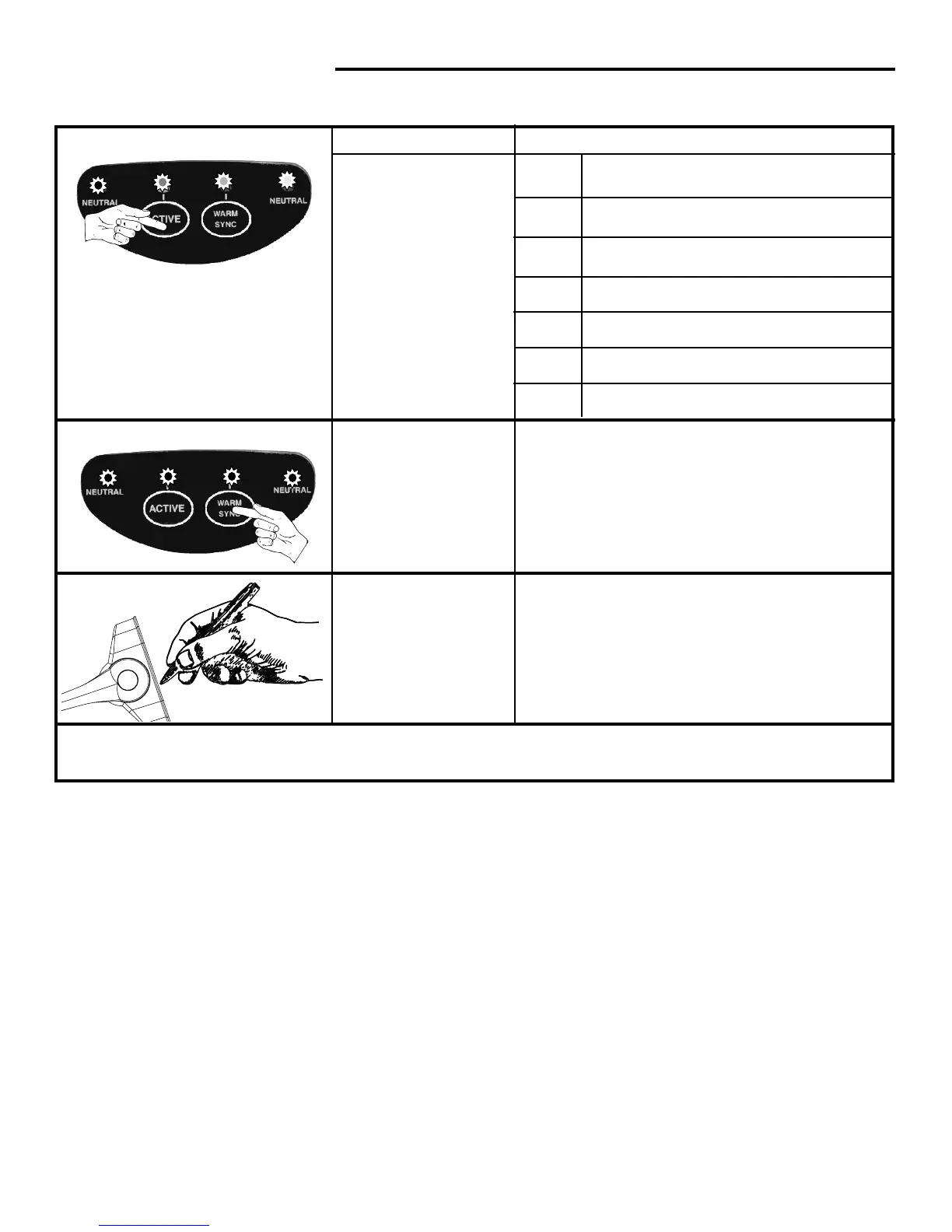

Press & Release
ACTIVE button until
desired handle ID is
achieved — see chart
at right for ID# and cor-
responding LED that is
illuminated
Press & Release the
WARM button one
time
This action stores your handle ID in memory. All 4
LEDs begin to flash after ID is stored in memory
N/A
RECORD the Handle
ID# on the tag locat-
ed on the bottom of
the Control Head
ACTION RESULT
To Exit Control Handle Configuration Mode — turn system OFF and return control handles to NEUTRAL position.
