GB-750 Firewall Appliance Product Guide6
1 – Introduction 7
Status Displays
The GB-750 has seven LEDs on the front panel, indicating power, connec-
tivity and activity. When the red GTA logo on the front panel of the GB-500
is lit, the GB-750 is powered on. Two groups of three LEDs labeled 0, 1 and 2
correspond to the network interfaces; the amber LEDs blink whenever activity
at any speed is detected by the rewall, while the green LEDs will be lit
whenever the network interface is connected.
Three sets of lights on the back panel correspond to the indicator lights on the
front, except that the colors are reversed: amber is link and green is activity.
Warning
There are no user serviceable parts in the GB-750. Opening the unit
will void the warranty on the system.

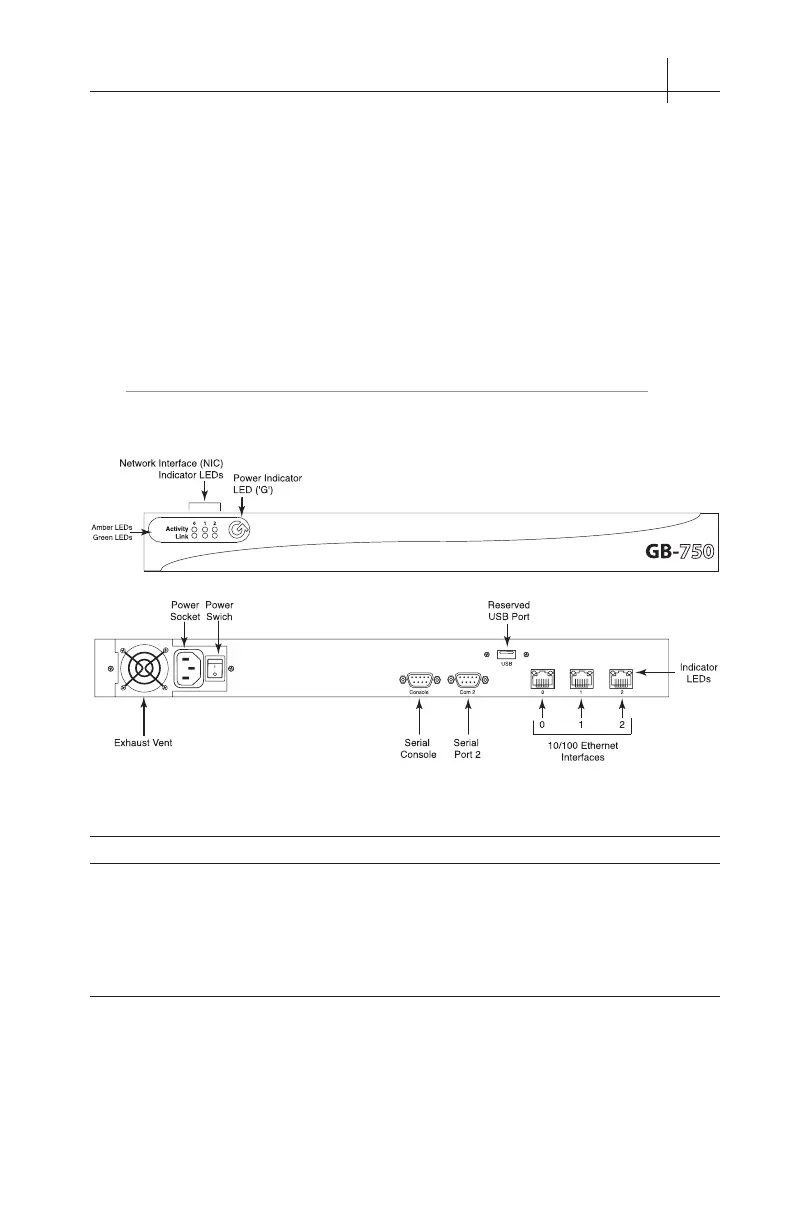

GB-750 Front and Back Panel
LED Indicators – Front Panel
Red Power When the rewall is powered up, the red GTA logo power
LED indicator will be lit.
Green Link A green LED is lit when the network interface is active.
Amber Activity An amber LED is lit when data is being transmitted or
received at any speed.
