Page 6
IMPORTANT: Before installing a new roll of labels remove 5 to 6 blank labels
so only backing paper is fed through the printer.

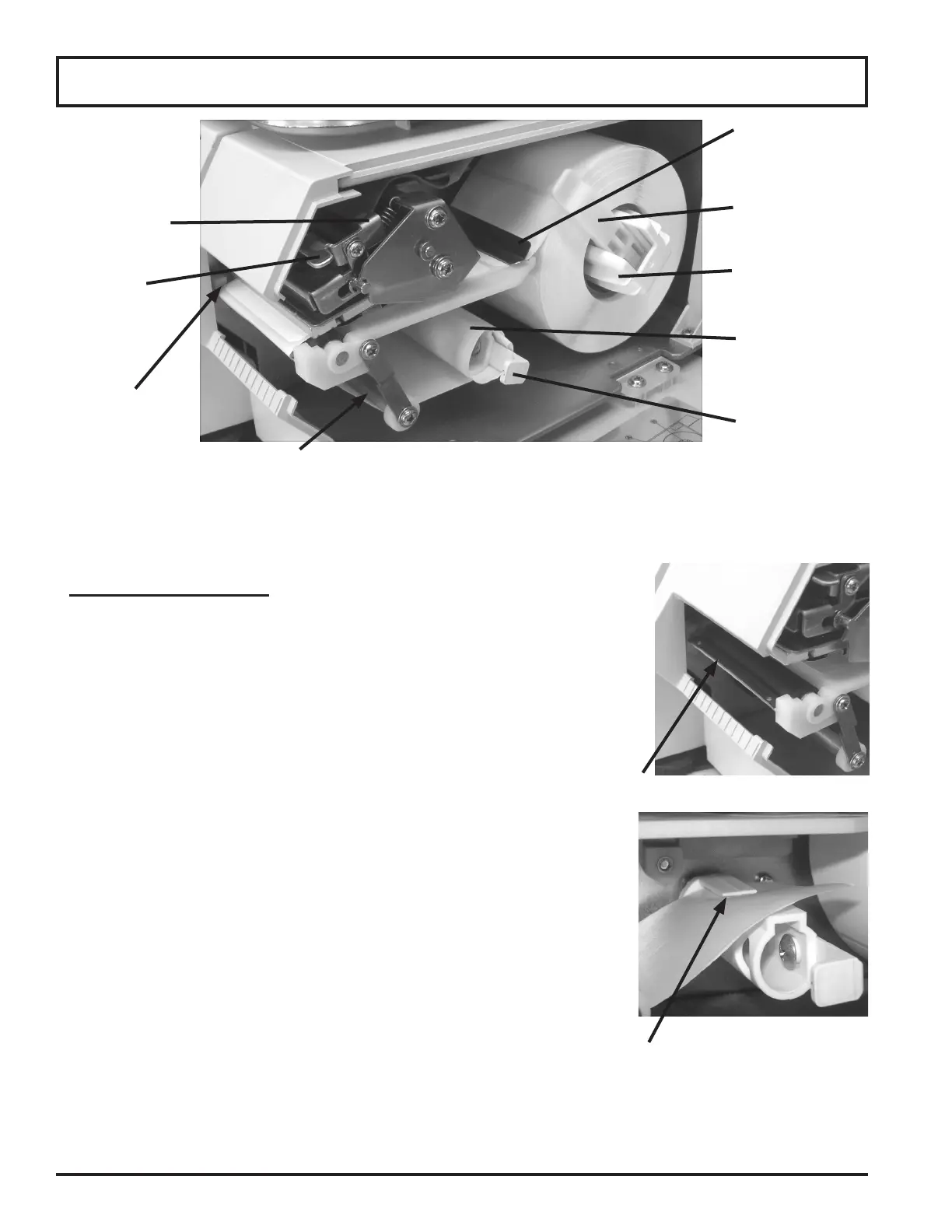

Loading Roll of Labels
1. Open the side cover.
2. Release the printer head by pushing the release lever down.
3. Make sure the stopper lever of the roll holder is pulled down.
4. Load the label roll onto the roll holder.
5. Insert the label paper (with the label side up) under the metal guide
(see gure 6-1).
6. Continue to pull the label paper through and make sure it is fed over the
metal bar shown in gure 6-2 and under the bar* in gure 6-1.
7. Turn the winding bobbin counter clockwise so the hook is on the top
(see gure 6-3).
8. Push the winding bobbin lever in and insert the paper under the winding
bobbin hook (see gure 6-3).
9. Turn the winding bobbin counter clockwise several times so the paper
wraps around it.
10. Pull up on the stopper lever then slide it inwards to secure the label roll.
11. Make sure the label paper is against the edge** as shown in gure 6-1.
Loading/Unloading Labels
Winding Bobbin
Lock Lever
Release Lever
Winding Bobbin
Lever
Stopper Lever
Roll Holder
Figure 6-2
Figure 6-3
**Label paper
must be against
this edge.
Figure 6-1
*Label paper
must go under
this bar.
Metal Guide
To Next Page
