0020107233_00 - 06/11 - Glow-worm
MAINTENANCE
- 28 -

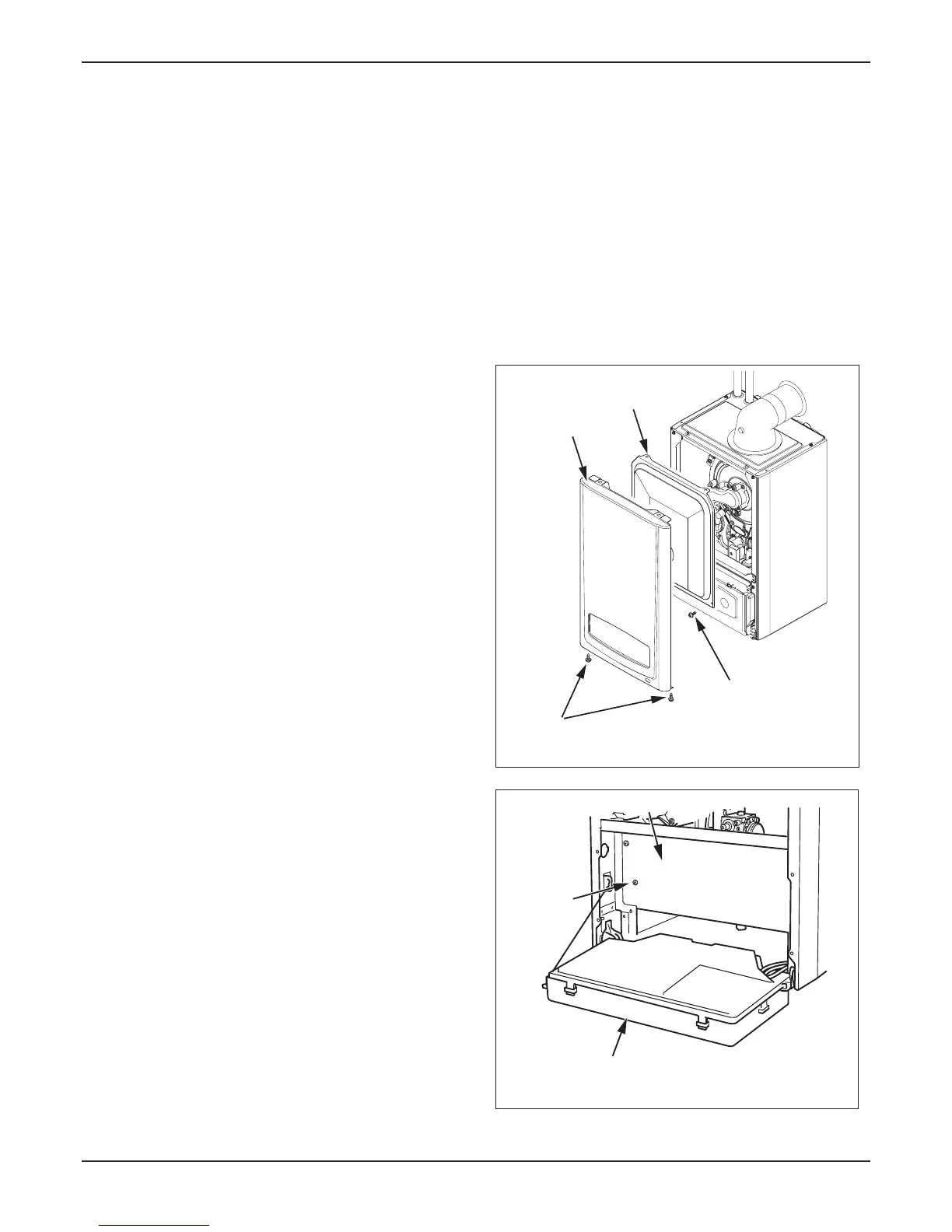

13517
Diagram 11.3
SECURING
SCREW
(4 OFF)
CHASSIS FRONT
CONTROL BOX
SERVICE POSITION
13648
Diagram 11.2
1. Maximum Rate Check and Adjustment
 To verify the maximum gas rate CO2 setting the
appliance must be checked at the maximum rate rst.
Press the “reset” button on the controls fascia, release
and immediately press and hold in the “+” button. After
approximately 5 seconds “Hi” will be displayed. Pressing
the mode button when “Hi” is selected will force the boiler
to maximum rate, the display will ash between “Hi” and the
“default display” this will indicate the boiler has been forced to
maximum. Wait until the CO2 value is stable and check that
the value is within the range specied in table in the “check”
column.
If the combustion reading is not within the acceptable values
AND the integrity of the complete ue system and combustion
circuit seals have been veried and the inlet gas pressure
(and gas rate) have been veried, then, it will necessary to
adjust the combustion rate of the appliance.




● Rotate the “throttle”(anti-clockwise to increase), to the
required CO2, refer to diagram 10.5 and the “SETTING”
column in the table.
● Exit the forced rate function, press the “mode” and “+”
buttons simultaneously, this will reset the boiler to the default
display. Now proceed to check the minimum rate adjustment.
2. Minimum Rate Check and Adjustment
● Now check the minimum gas rate CO2 setting: Press
and release the “reset” button on the controls fascia, then
immediately press and hold in either of the “+” buttons. After
approximately 5 seconds “Hi” will be displayed. Pressing the
“+” or “-” buttons will toggle between “Hi” and “Lo”. Press the
mode button when “Lo” is selected, this will force the boiler
to minimum rate and the display will ash “Lo”, indicating the
boiler is operating at minimum.
● Wait until the CO2 value is stable and check that the value
is within the range specied in table in the “check” column.
If adjustment is necessary, proceed as follows:




● Gradually rotate the “offset adjustment” (anti-clockwise to
decrease) to the required CO2, refer to diagram 10.5 and the
“SETTING” column in the table.
● Exit the minimum rate function, press the “mode” and “+”
buttons simultaneously, this will reset the boiler to the default
display.
3. Re-Check CO2 and check the CO/CO2
combustion ratio.
● Re-check the maximum and minimum CO2 values to
ensure that they are within the “setting” limits in the table
then check the CO/CO2 combustion ratio does not exceed
the value in the CO/CO2 column of the table. If the CO/CO2
setting exceeds the value in the table, a complete servicing of
the appliance will be necessary, refer to section 11.1.
If the CO2 and the CO/CO2 ratio falls within the tolerances
quoted, exit the function press the “mode” and “+” buttons
simultaneously, this will reset the boiler to the default display.
Remove the analyser probe and replace the cap on the
sampling point, replace the controls fascia, inner and front
casing panels.
 Remember to replace the sample point cap on
completion of the test.

Check the gas rates as described in the commissioning section.

If it is not possible to achieve the required results for either the
combustion or gas rates, it will be necessary to complete a full
service of the appliance and then repeat the combustion check
procedure. If after servicing and adjustment of the appliance
the combustion values are still unacceptable and after further
remedial work has been carried out, the appliance must be
disconnected until the CO/CO2 ratio is acceptable. Advice can
be sought from the Glow-worm Technical Helpline.
