0020107233_00 - 06/11 - Glow-worm
MAINTENANCE
- 41 -

For access, refer to section 13.1.
Remove heat exchanger as described in section 13.12.

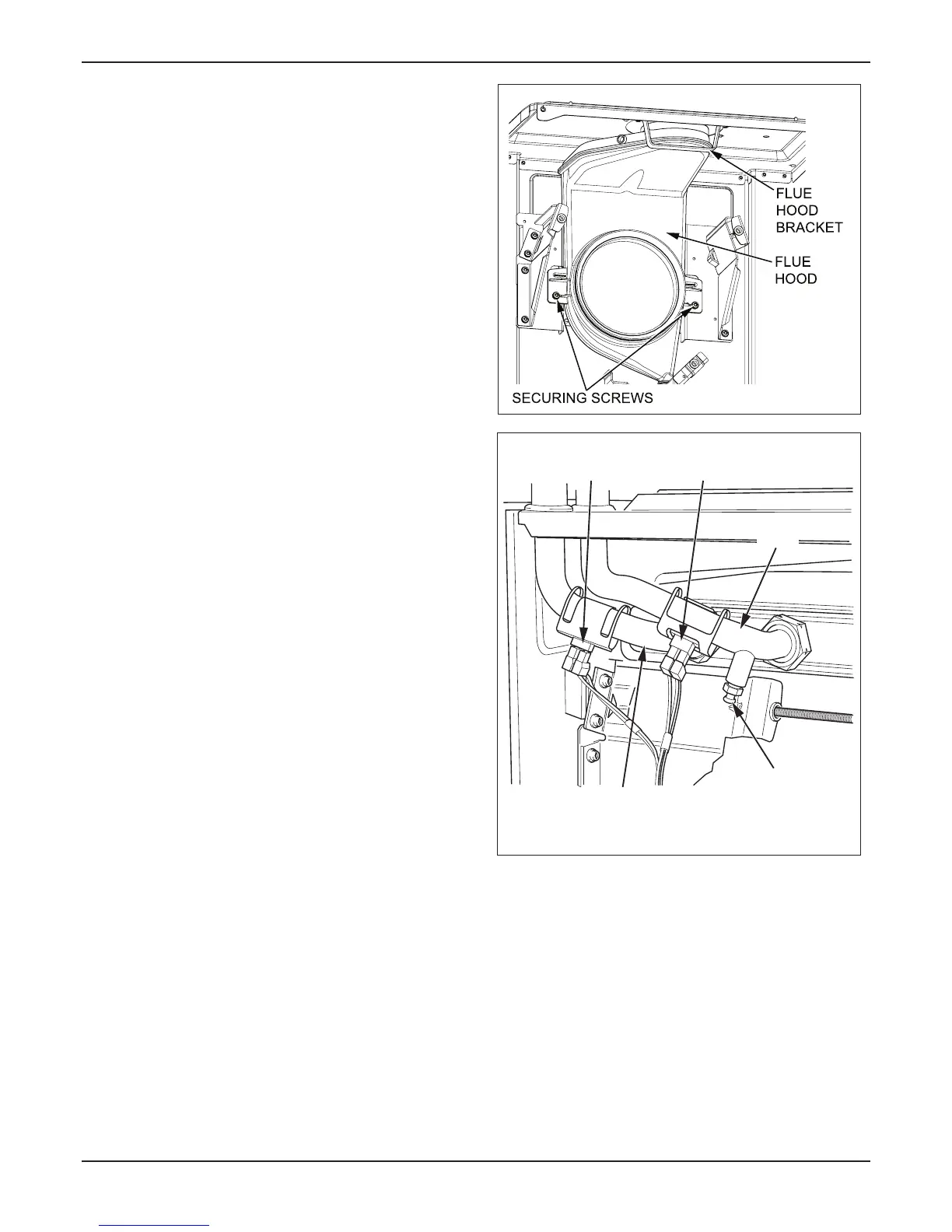

Remove the two securing screws and pull the ue hood down
and away from the ue hood bracket and ue elbow, see
diagram 13.9.

For access, refer to section 13.1.
Refer to diagram 13.10.
Remove the electrical connections from the thermistor.
Remove the retaining clip from the ow pipe.
: When reconnecting, the polarity of the wiring to
thermistors is not important.

For access, refer to section 13.1.
Refer to diagram 13.10.
Remove the electrical connections from the thermistor.
Remove the retaining clip from the return pipe.
: When reconnecting, the polarity of the wiring to
thermistors is not important.
Diagram 13.9
13281
Diagram 13.10
RETURN
THERMISTOR
RETURN
PIPE
DRAIN
POINT
FLOW
PIPE
FLOW
THERMISTOR
13520
