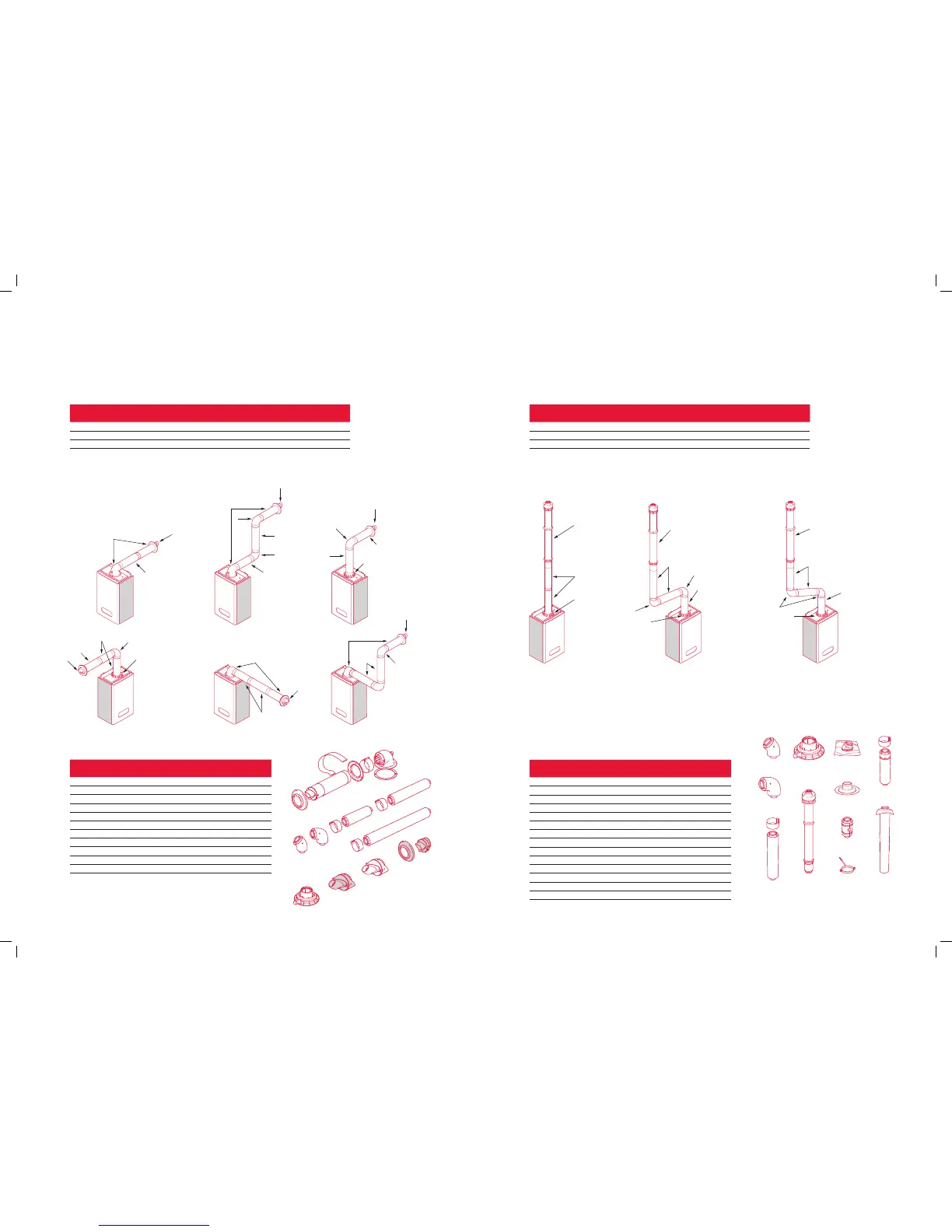

Horizontal flue accessories
Top rear and top side horizontal flue options
C
G
A
D,E,F
H,I,J
A
H
I
B
J
D
E
F
G
C
Component Description
Part Number
Ø60/100
Part Number
Ø80/125
A Horizontal Telescopic flue A2043600 0020104551
B 45° Bend (2 o) 2000460485 0020104557
C 90° Bend (1 o) 2000460484 0020104556
D 0.5m Extension (1 o) 2000460481 0020104553
E 1m Extension (1 o) 2000460482 0020104554
F 2m Extension (1 o) 2000460483 0020104555
G Vertical Flue Adaptor A2024600 0020104550
H Deflector Terminal (Black) 0020060582 -
I Deflector Terminal (White) 0020060583 -
J Black Terminal A2043700 -
Horizontal flueing options
Horizontal flue lengths
The horizontal flueing information below applies to all Glow-worm High Eciency boilers.
Boiler Ø60/100 Max horizontal Ø80/125 Max horizontal
Compatible with Plume
Management Kit
Easicom 24 6m 10m Yes
1
Easicom 28 6m 10m Yes
1
Notes:
1 The overall maximum flue length
must not be exceeded.
Vertical flue options
A H L
I
M
B
J
K
F
G
C,D,E
F
C,D,E
G,M
F
C,D,E
C,D
,E
B
B
G,M
F
C,D,E
C,D
,E
A
G,M
Vertical flue accessories
Component Description
Part Number
Ø60/100
Part Number
Ø80/125
A 45° Bend (2 o) 2000460485 0020104557
B 90° Bend (1 o) 2000460484 0020104556
C 0.5m Extension (1 o) 2000460481 0020104553
D 1m Extension (1 o) 2000460482 0020104554
E 2m Extension (1 o) 2000460483 0020104555
F Vertical Flue Adaptor A2024600 0020104550
G Vertical Roof Terminal 2000460480 0020104552
H Pitched Roof Flashing 2000460479 -
I Flat Roof Flashing 2000460478 -
J Sliding Sleeve 2000460487 0020104558
K Fixing Bracket (5 o) 2000460486 0020104559
L Telescopic Extension A2036900 -
M Ridge Tile Terminal A2043800 -
Notes:
i Horizontal sections must have a continuous fall of at least 2.5° (44mm/metre) back to the boiler.
Vertical flueing options
Vertical flue lengths
The vertical flueing information below applies to all Glow-worm High Eciency boilers.
Boiler Ø60/100 Max vertical Ø80/125 Max vertical
Compatible with Plume
Management Kit
Easicom 24 6m 10m Yes
1
Easicom 28 6m 10m Yes
1
Notes:
1 The overall maximum flue length
must not be exceeded.
1312
