3 Flue Options and Terminal Clearances
Top horizontal telescopic flue Ø60/100
Part No. A2043600
Top horizontal standard flue Ø60/100
Part No. A2043400
Rear telescopic flue Ø60/100
Part No. A2043500
Vertical Flue
Vertical Flue Adapter, concentric flue Ø60/100
Part. No. A2024600
Vertical flue terminal kit, concentric flue Ø60/100
Part. No. 2000460480
Twin Flue
Twin Flue Adapter, concentric flue Ø80
Part No. A2011000
Flue Accessories
Black Horizontal Terminal Kit, for use with
A2043500; A2043600; A2043400
Black Horizontal Terminal Kit,
concentric flue Ø60/100 - Part No. A2043700
Plume Management Kit, for use with
A2043500; A2043600; A2043400
Plume Management Kit, basic set, white,
concentric flue Ø60/100 - Part No. A2044100
1m extension, white - Part No. A2044300
87
o
elbow, white - Part No. A2044700
45
o
bend (2), white - Part No. A2044500
Plume Management Kit, basic set, black,
concentric flue Ø60/100 - Part No. A2044000
1m extension, black - Part No. A2044200
87
o
elbow, black - Part No. A2044600
45
o
bend (2), black - Part No. A2044400
Concentric Flue Ø60/100 accessories:
2 metre extension kit, concentric flue
Ø60/100 - Part No. 2000460483
1 metre extension kit, concentric flue
Ø60/100 - Part No. 2000460482
0.5 metre extension kit, concentric flue
Ø60/100 - Part No. 2000460481
Adjustable flue pipe 0-50mm kit,
concentric flue Ø60/100 - Part No. 2000460487
90
o
flue elbow pack,
concentric flue Ø60/100 - Part No. 2000460484
45
o
flue bend pack,
concentric flue Ø60/100 - Part No. 2000460485
Flue support clips (3),
concentric flue Ø60/100- Part No. A2043900
Additional accessories are available.
See Glow-worm “Flexicom Range Guide” for
configurations available.

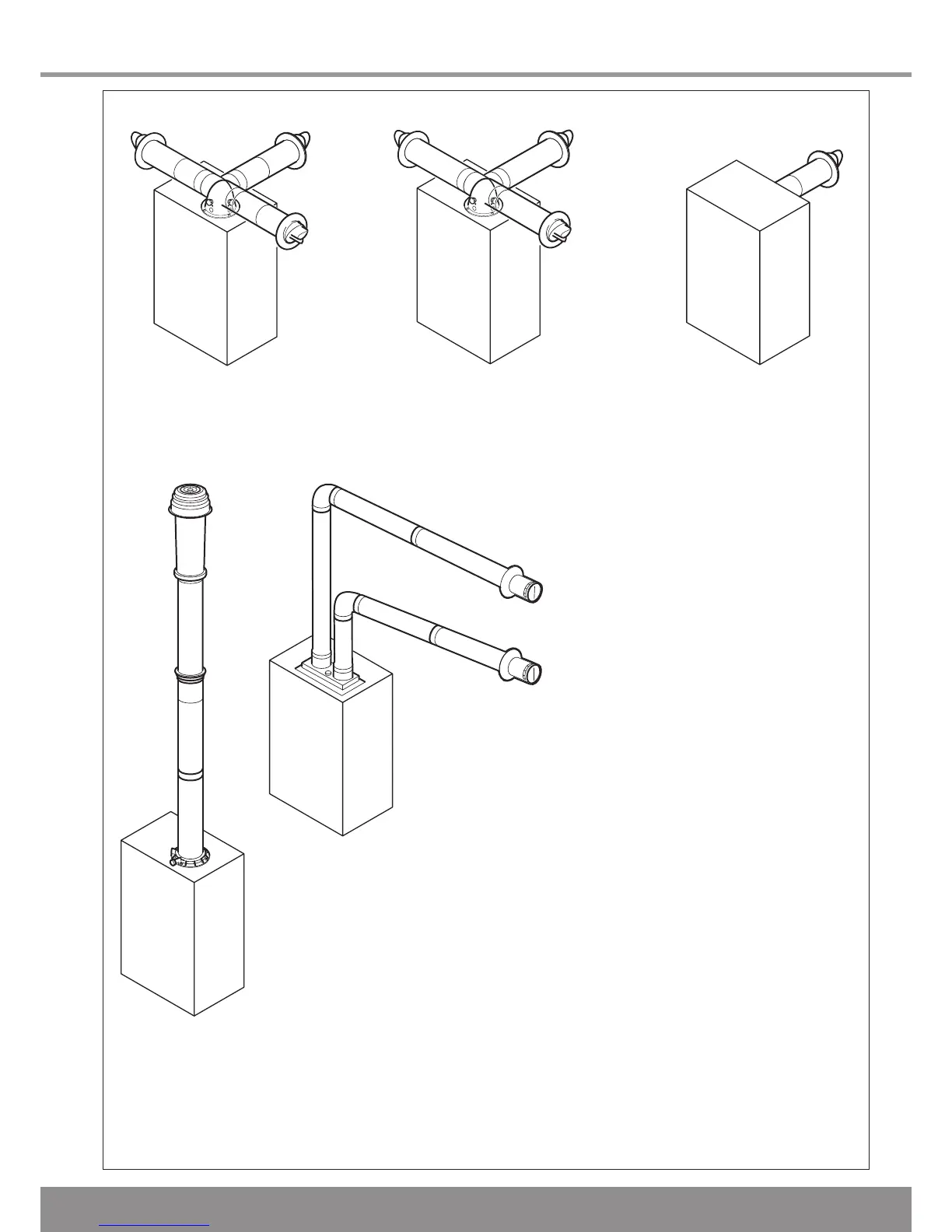

Diagram 3.1
