Glow-worm Ultracom 24cxi Installation And Servicing

26
10.7 Standard Horizontal Flue - A2043400
Refer to diagram 10.11 for kit contents.
10.8 REAR Flue
With the ue elbow temporarily tted, measure the distance
from the outside wall to the butt joint, see diagram 10.13. If
the measurement ‘Y’ exceeds 665mm, then the appropriate
length of extension pipe is required. The minimum dimension
is 187mm to suit a 75mm min wall thickness. The ue can
project to a maximum of 600mm, refer to diagram 10.14.
10.9 SIDE Flue
With the ue elbow temporarily tted, measure the distance
from the outside wall to the butt joint, see diagram 10.15. If
the measurement ‘Y’ exceeds 665mm, then the appropriate
length of extension pipe is required. The minimum dimension
for Lhd is 254 and Rhd 226 to suit a minimum wall thickness
of 75mm. The ue can project to a maximum of 600mm, refer
to diagram 10.14.
13224

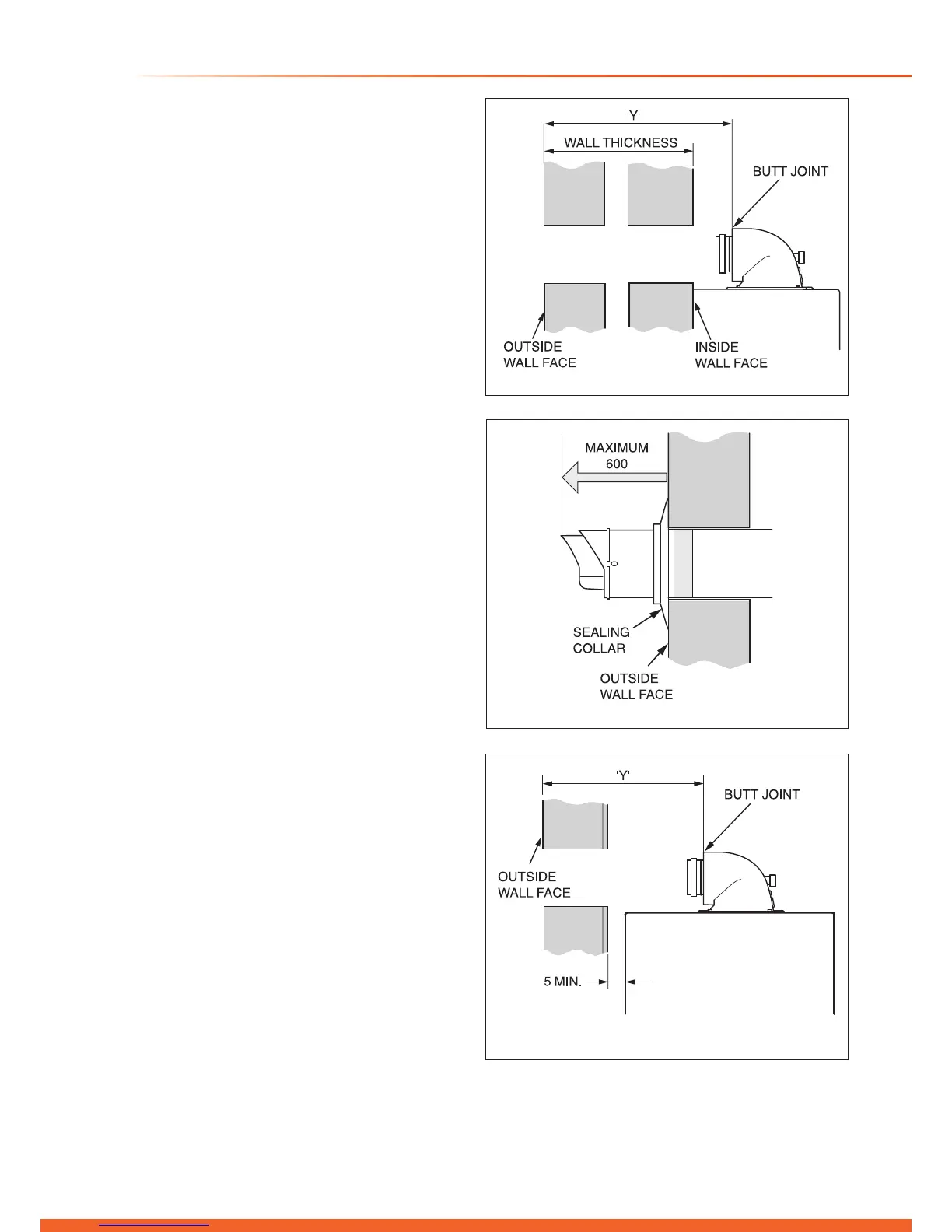

Diagram 10.15
Left Hand illustrated
Diagram 10.13
13223
Diagram 10.14
12979
10 Standard Flue - Length, Preparation and Installation

Glow-worm Ultracom 24cxi Specifications

General

Manufacturer	Glow-worm
Model	Ultracom 24cxi
Category	Boiler
Type	Condensing
Output	24 kW
Efficiency	89.3%
Fuel Type	Natural Gas
Efficiency Rating	A
ERP Rating	A
Mounting	Wall Mounted
Max. Working Pressure	3 bar
Warranty	2 Years
Fuel	Natural Gas
Flow Temperature Range	30°C - 80°C
Dimensions	740mm x 418mm x 300mm
