3010 ¾” VALVE MANUAL
INSTALLATION, USE AND MAINTENANCE
10 / 16

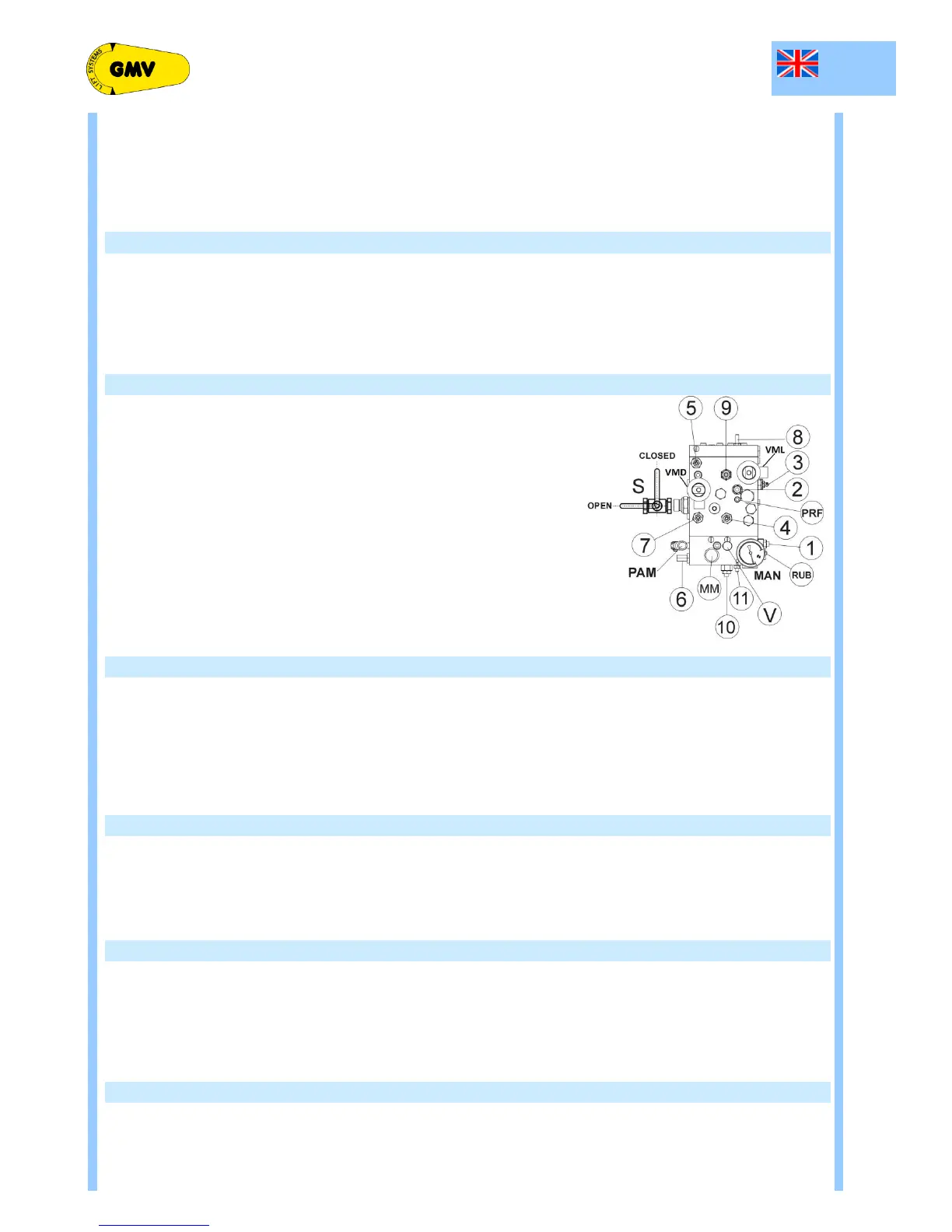

- Loosen the screw (1) two or three turns.
- Start the motor-pump (refer to the controller manual).
- Tighten screw (1) till get the desired maximum pressure (see technical report of the lift).
- Tighten the lock nut (1).
- Re-open the ball valve (S).
- The adjustment is finished.
3.3 ADJUSTMENT OF THE UPWARD ACCELERATION – N° 4
- Loosen the lock nut (4).
- Tighten screw (4) completely.
- Send the car upward, the car will not move.
- Loosen the screw (4) till you get the desired acceleration.
- Tighten the lock nut (4).
- The adjustment is finished.
3.4 ADJUSTMENT OF SLOW LEVELLING SPEED – N° 2
SLOW LEVELLING SPEED MUST BE 1/4-1/6 VS HIGH UPWARD
SPEED AND THE CAR SHOULD RUN THE SLOW SPEED RANGE
CONTINUOUSLY WITHOUT RIPPING.
- Loosen the lock nut (2).
- Tightening the screw (2) reduces the speed (D-E upward, H-I
downward). Loosening the screw (2) increases the speed.
- Tighten the lock nut (2).
- The adjustment is finished.
3.5 ADJUSTMENT OF THE UPWARD HIGH SPEED – N° 8
- Start to send the car upward.
- Loosen the lock nut (8).
- Tighten the screw (8) till you hear the oil returning to the tank, then loosen one turn to close.
- Tighten the lock nut (8).
- The adjustment is finished.
- If needed, in those lifts where the speed must be limited (for example Home Lift con V=0,15 m/s, other
lifts), just gradually tighten the screw 8 to mach the requested speed value.
3.6 ADJUSTMENT OF THE DOWNWARD ACCELERATION – N° 7
- Loosen the lock nut (7).
- Tighten screw (7) completely.
- Send the car downward, the car will not move.
- Loosen slowly the screw (7) till you get the desired acceleration.
- Tighten the lock nut (7).
- The adjustment is finished.
3.7 ADJUSTMENT OF THE DOWNWARD HIGH SPEED – N° 9
- Take out the protection nut of the screw (9)
- Loosen the lock nut (9).
- Tighten the screw (9) to increase the speed, loosen the screw (9) to reduce the speed.
- Tighten the lock nut (9).
- The adjustment is finished.
3.8 ADJUSTMENT OF THE UPWARD AND DOWNWARD DECELERATION – N° 3
You get the maximum deceleration with the screw (3) completely open.
- Loosen the lock nut (3).
- Tighten the screw (3) to reduce the deceleration, loosen the screw (3) to increase the deceleration.
