3010 ¾” VALVE MANUAL
INSTALLATION, USE AND MAINTENANCE
Support and informations:
FLUID DYNAMICS EQUIPMENTS AND
COMPONENTS FOR LIFTS
UNI EN ISO 9001
Certified Company
GMV SPA
Via Don Gnocchi, 10 - 20016 PERO – Milano (Italy)
TEL. +39 02 33930.1 - FAX +39 02 3390379
http://www.gmv.it - e-mail: info@gmv.it
Visit www.gmv.it to check for updates of this document and other product information from
GMV.

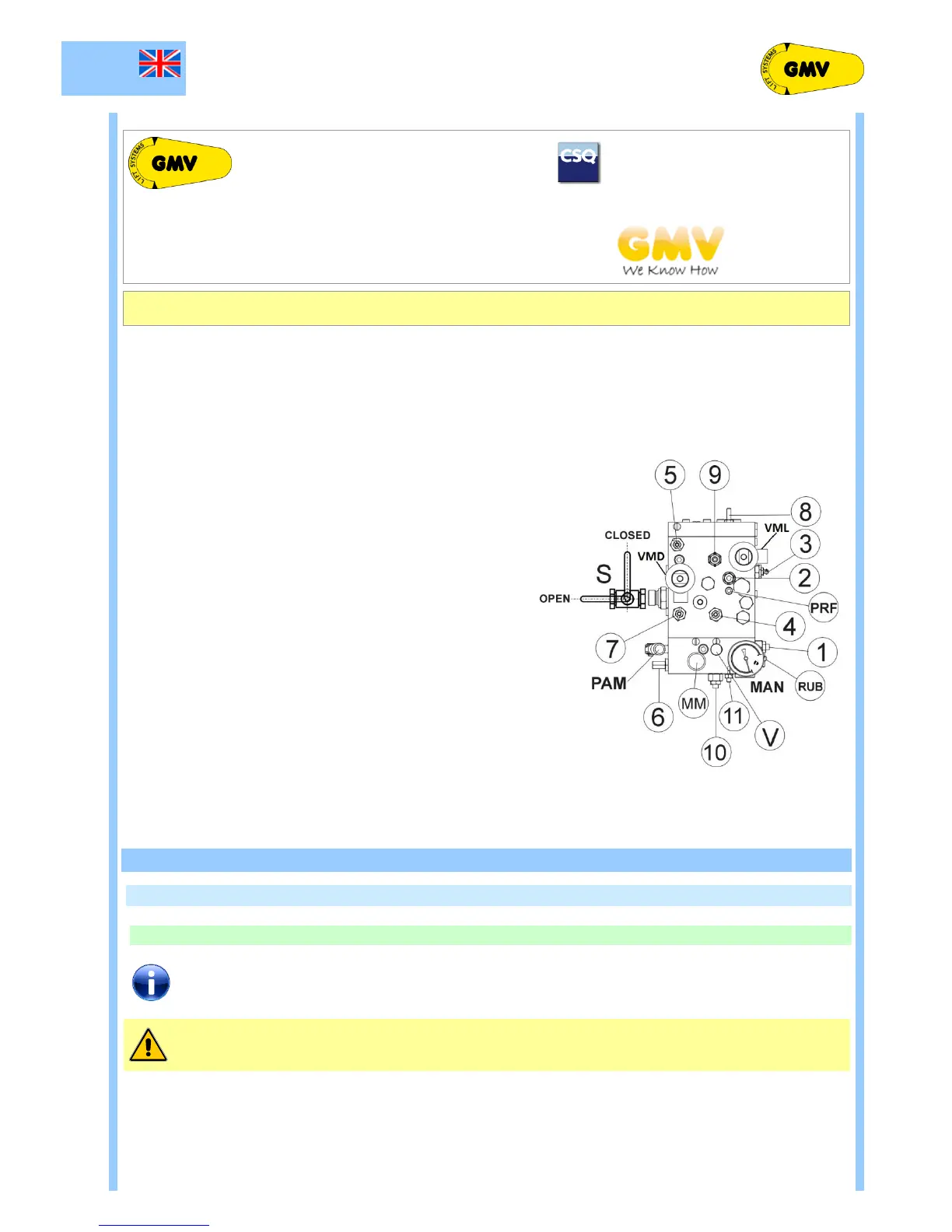

Main acronyms and abbreviations
1
Pressure safety valve adjustment (p.max)
2
Levelling / slow speed adjustment (up/down)
3
Deceleration adjustment (up/down)
4
Upward start adjustment
5
Screw for rupture valve test ( EN 81.20)
6
Minimum ram pressure adjustment
7
Downward start adjustment
8
High speed adjustment
9
Down speed compensator (empty/full load)
10
Hand pump max. pressure adjustment
11
Minimum upward pressure adjustment
RUB
Shut-off valve for pressure gauge exclusion
MAN
Pressure gauge
MM
Manual lowering button
PAM
Hand pump
V
Hand pump air purge screw
VP
Pilot valve
CHK
Check valve
VMD
Downward solenoid valve
VML
Jump speed solenoid valve (upward/downward)
PRS
Gauge fitting
S4
Fixed filer (don’t remove)
ISP
Inspection gauge fitting (EN 81.20)
S
Ball valve
PRF
Blocking screw (don’t remove)
0 GENERAL SECTION
0.1 INTRODUCTION
0.1.1 DEFINITIONS
NOTES
Indicates information which contents must be seriously taken in consideration.
WARNING
Indicates that the described operation may cause, damages to the system or physical damages if
performed without complying with the safety standards.

GMV 3010 Specifications

General

Brand	GMV
Model	3010
Category	Control Unit
Language	English
