III. YOUR TRAVEL SCOOTER
Horn Button
This button activates a warning horn. Your
Travel Scooter must be turned on for the horn to
be operational. Do not hesitate to use the warn-
ing horn when doing so may prevent accident or
injury.
Speed Adjustment Dial
This dial allows you to preselect and limit your
Travel Scooter’s top speed.
The image of the tortoise represents the
slowest speed setting.
The image of the hare represents the fastest
speed setting.
MANUAL
FREEWHEEL
LEVER
ANTI-TIP WHEELS

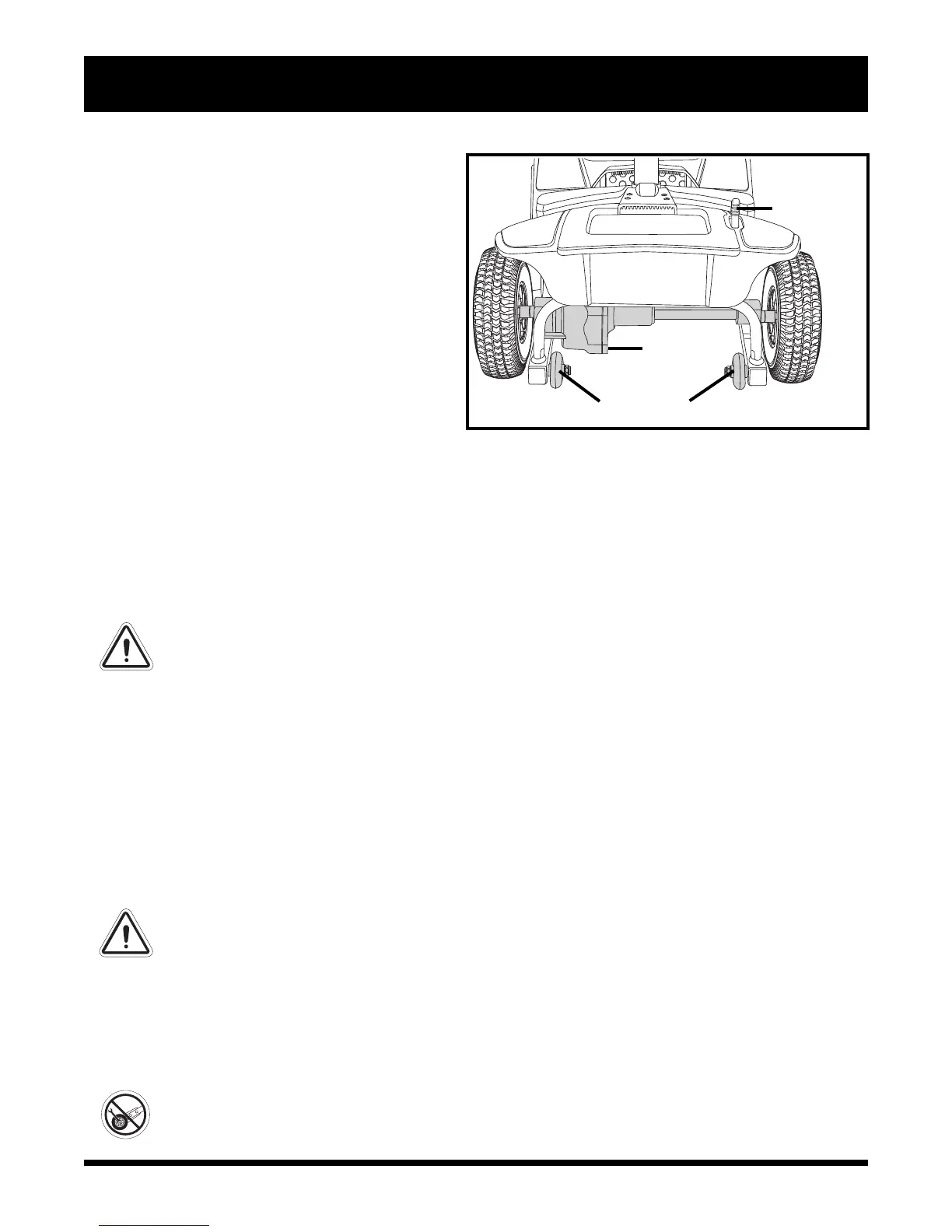

Figure 6. Rear Section
MOTOR/
TRANSAXLE
ASSEMBLY
Battery Condition Meter
When the key is fully inserted into the key switch, this meter indicates approximate battery strength. For
further information on the battery condition meter, see IV. “Batteries and Charging.”
REAR SECTION
The manual freewheel lever, anti-tip wheels, and motor/transaxle assembly are located on the rear section
of your Travel Scooter. See figure 6.
WARNING! Before placing your Travel Scooter into or taking it out of freewheel mode,
remove the key from the key switch. Never sit on a Travel Scooter when it is in freewheel
mode. Never put a Travel Scooter in freewheel mode on any incline.
Manual Freewheel Lever
Whenever you need or want to push your Travel Scooter for short distances, you can put it in
freewheel mode.
1. Locate the manual freewheel lever at the top right of the rear section.
2. Push forward on the manual freewheel lever to disable the drive system and the brake system.
3. You may now push your Travel Scooter.
4. Push the manual freewheel lever rearward to reengage the drive and the brake systems; this takes your
Travel Scooter out of freewheel mode.
WARNING! When your Travel Scooter is in freewheel mode, the braking system is
disengaged.
Disengage the drive motors only on a level surface.
Ensure the key is removed from the key switch.
Stand to the side of the Travel Scooter to engage or disengage freewheel mode.
Never sit on a Travel Scooter to do this.
After you have finished pushing your Travel Scooter, always return it to the drive
mode to lock the brakes.
Anti-Tip Wheels
The anti-tip wheels are an integral and important safety feature of your Travel Scooter. They are bolted to
the frame at the rear of the Travel Scooter.
PROHIBITED! Do not remove the anti-tip wheels or modify your Travel Scooter in any way
that is not authorized by Pride.
To Next Page
