OFF-BOARD BATTERY
CHARGER
The off-board battery charger,
when plugged into the charger
power cord receptacle (located on
the battery pack) and a standard
electrical outlet, charges the Travel
Scooter’s batteries. See figure 9.
SHROUD PANELS
You can change the color of your
Travel Scooter by removing the col-
ored plastic shroud panel pieces and
replacing them with one of the other
supplied sets. The panels are held in
place by a hook and loop reusable
fastener.
To remove the shroud panel
pieces:
1. Use your finger to locate the
push hole behind each shroud
piece.
2. Push through the hole to sepa-
rate the piece from the Travel
Scooter. See figures 10, 11, and
12.
To reinstall the shroud pieces,
place each piece in its appropriate
location and push with slight pres-
sure to secure the reusable fastener.
NOTE: When installing the front
and rear fender panels, make sure
the tab at the bottom of each panel
is inserted into the tab opening
before securing the panel. See fig-
ure 10.

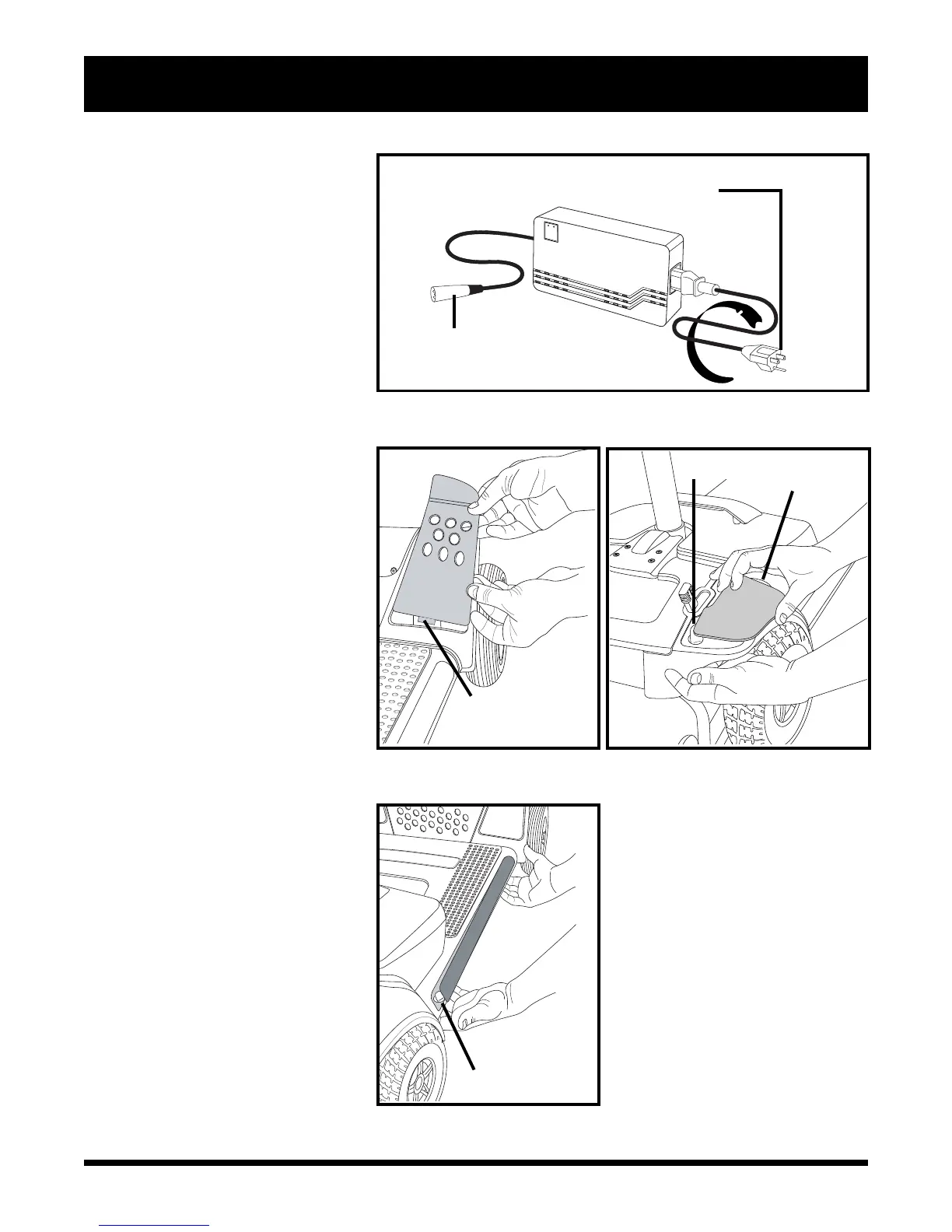

Figure 9. Off-Board Battery Charger
III. YOUR TRAVEL SCOOTER
Figure 10. Front Fender Panel
Figure 12. Side Panel
PUSH HOLE
Figure 11. Rear Fender Panel
PUSH HOLE
PLUGS INTO BATTERY PACK
PLUGS INTO STANDARD
ELECTRICAL OUTLET
TAB
TAB
