VI. COMFORT ADJUSTMENTS
TILLER ANGLE ADJUSTMENT
WARNING! Remove the key from the key
switch before adjusting the tiller or the
seat. Never attempt to adjust the tiller or
the seat while the Travel Scooter is in
motion.
Your Travel Scooter is equipped with an adjustable pivot-
ing tiller.
1. While supporting the tiller, turn the tiller adjustment knob
counterclockwise to loosen the tiller. See figure 16.
2. Move the tiller to a comfortable position.
3. Turn the tiller adjustment knob clockwise to secure the
tiller in position.
NOTE: In order to fully lower the tiller, you must first
remove the seat and battery pack. Remove the seat by
pulling it straight up and off of the Travel Scooter.
SEAT ROTATION ADJUSTMENT
The seat rotation lever, located on the right side of the seat
base, secures the seat into several positions.
1. Pull up on the seat rotation lever to disengage the seat.
2. Rotate the seat to the desired position.
3. Release the lever to secure the seat into place.
ARMREST WIDTH ADJUSTMENT
The armrest width can be adjusted inward or outward.
1. Loosen the armrest adjustment knobs. See figure 17.
2. Use the attached ring to pull and remove the detent
pins.
3. Slide the armrests in or out to the desired width.
4. Align the adjustment holes on the seat frame and arm-
rest, then reinsert the detent pins.
5. Tighten the armrest adjustment knobs.
NOTE: Pivot the armrests upward to aid in getting onto
and off of your Travel Scooter.

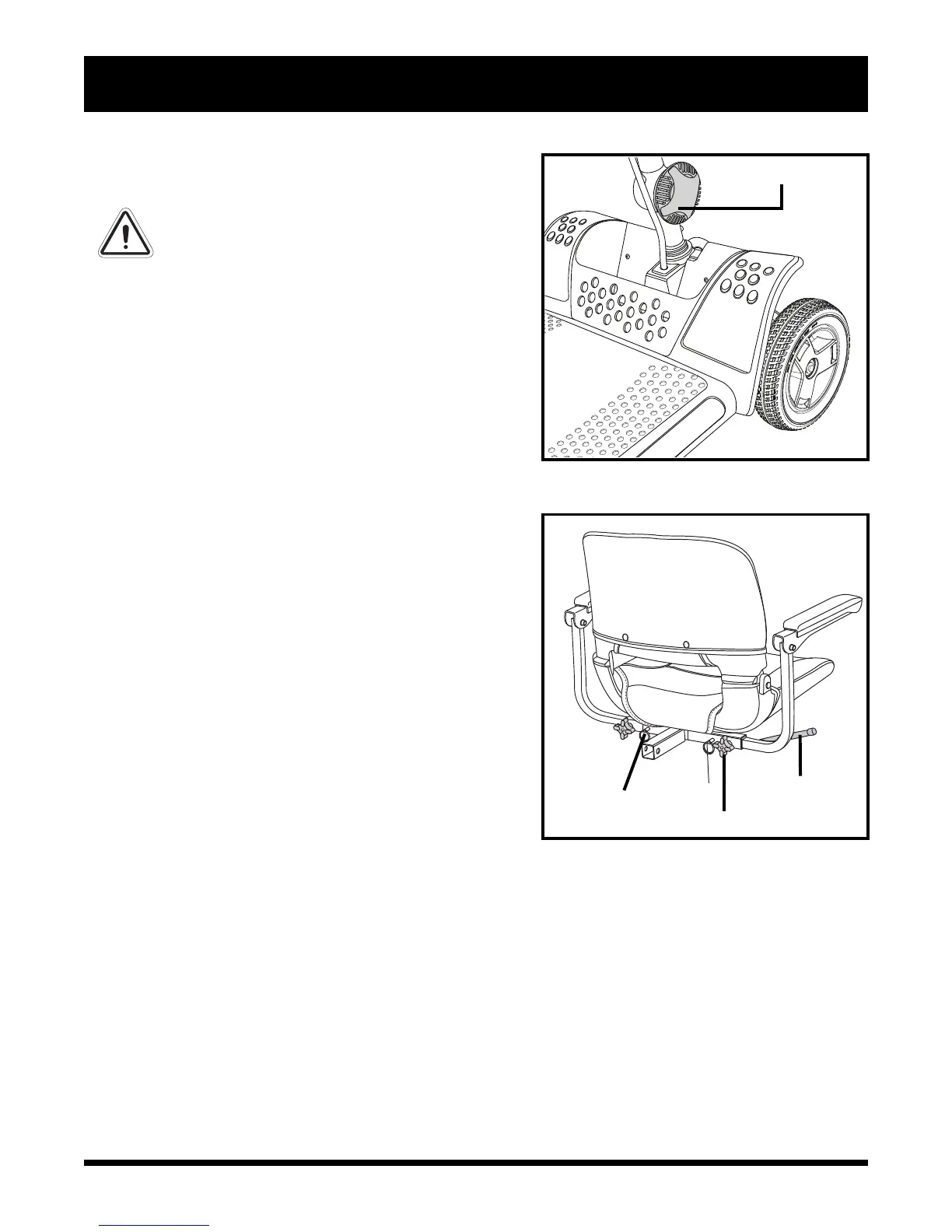

Figure 16. Tiller Adjustment Knob
Figure 17. Seat Adjustments
DETENT PIN
ARMREST ADJUSTMENT KNOB
SEAT ROTATION
LEVER
