Godex RT730i User Manual

22
3 Setting and Control for Operation Panel
3.2 LCD Interface Introduction
022

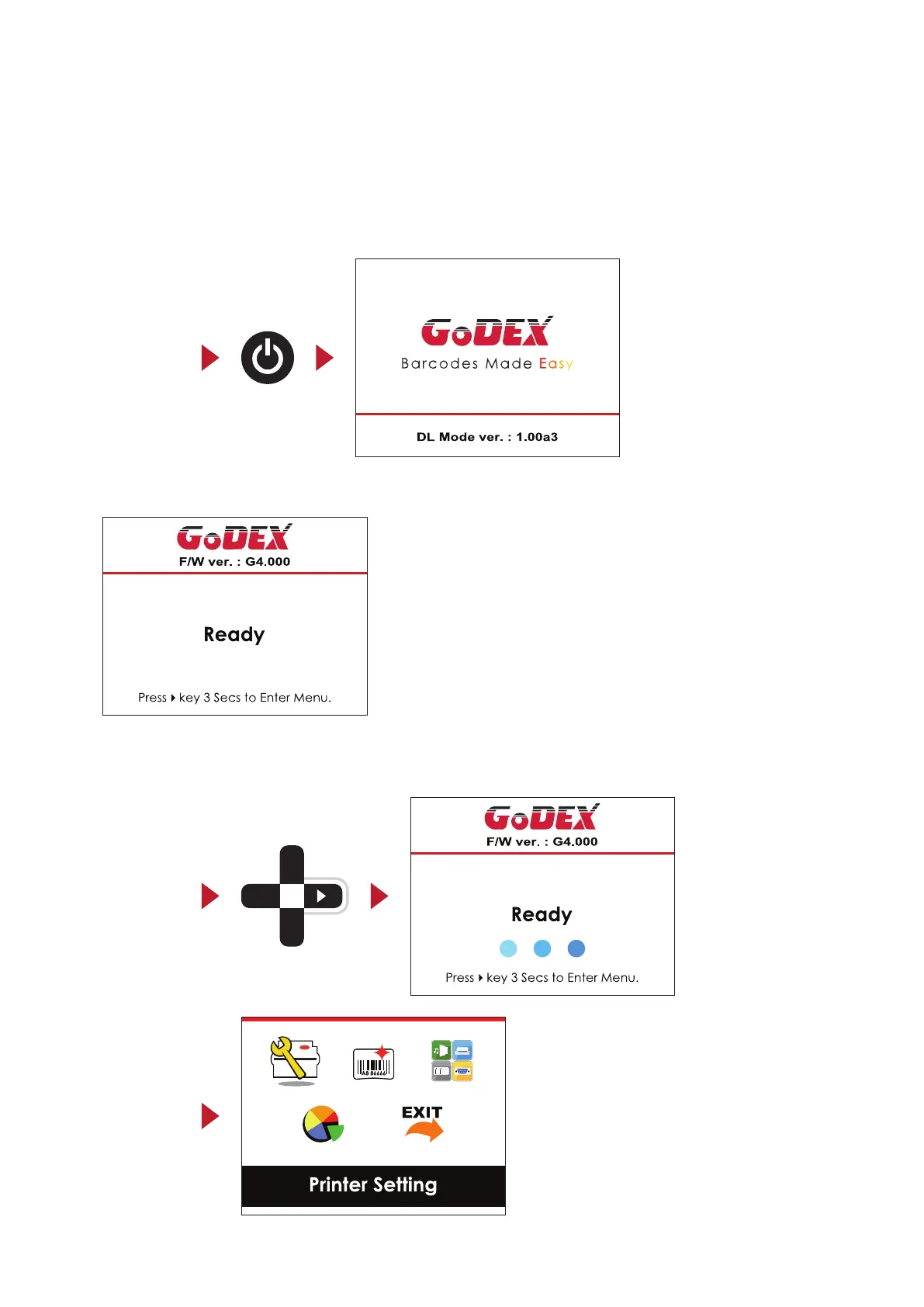

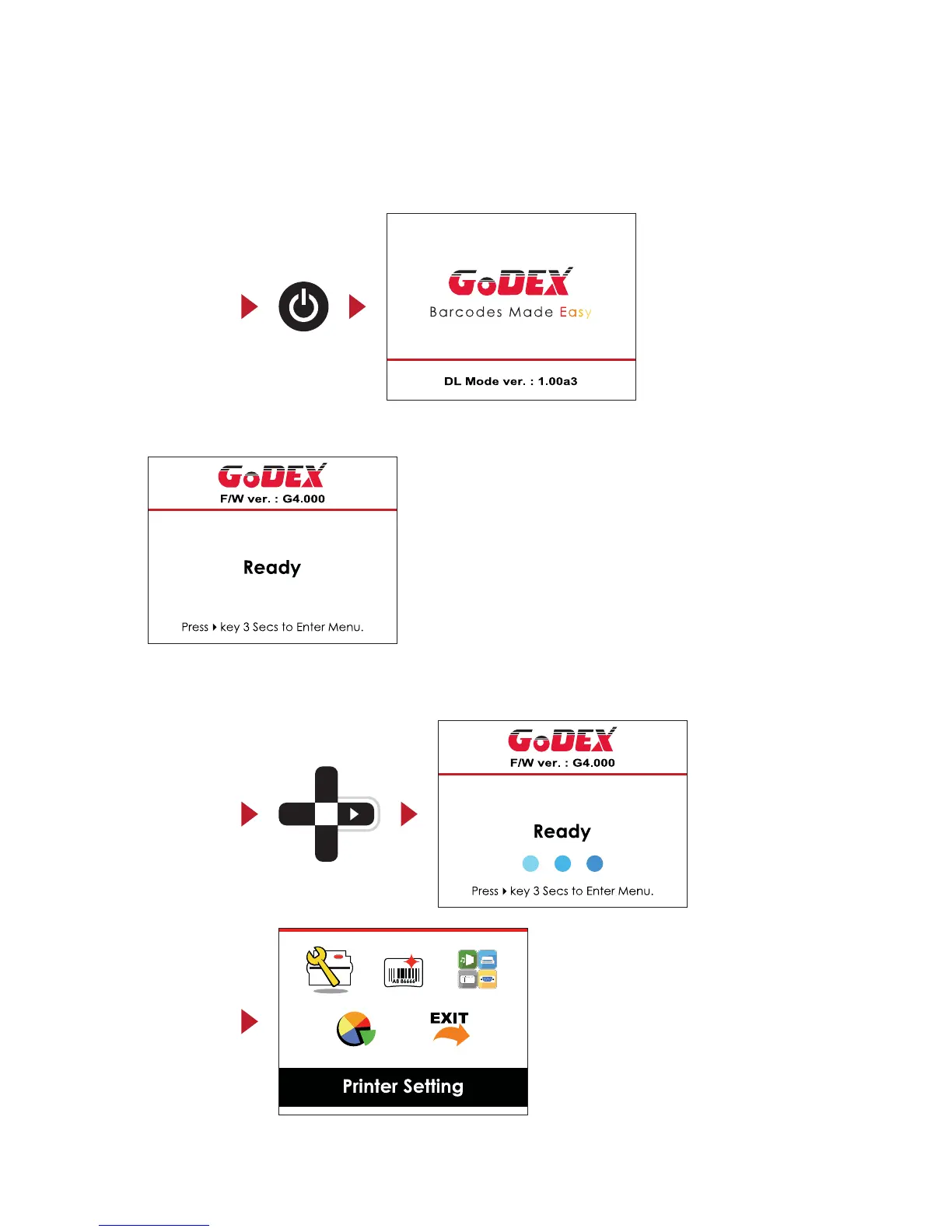

Getting Started
Press the POWER button to turn on the printer, and the START UP SCREEN appears.
If the printer is on “ready to print” status, the LCD screen should display the message “Ready“ on the screen.
Please keep pressing

button and wait for the timer to be filled, then the LCD interface will enter into the MAIN
PAGE for SETTING MODE. You can make various setting functions in SETTING MODE.
Power on
Enter Main page

Godex RT730i Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	762 mm
Maximum printing width	105.7 mm
Display	LCD
Product color	Black
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Certification	CE (EMC), FCC Class A, CB, CCC, cUL
Internal memory	16 MB
Built-in barcodes	1D, 2D, Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Windows code pages supported	1250, 1251, 1252, 1253, 1254, 1255, 1257
Ribbon width	110 mm
Core diameter	25.4 mm
Ribbon length	300 m
Media thickness	0.06 - 0.2 mm
Maximum roll diameter	127 mm
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	30 - 85 %
Power requirements	100-240V, 50-60Hz
Compatible operating systems	Windows 2000, XP, Vista, 7, Windows Server 2003, 2008

Weight and Dimensions

Depth	280 mm
Width	210 mm
Height	186 mm
Weight	3000 g
